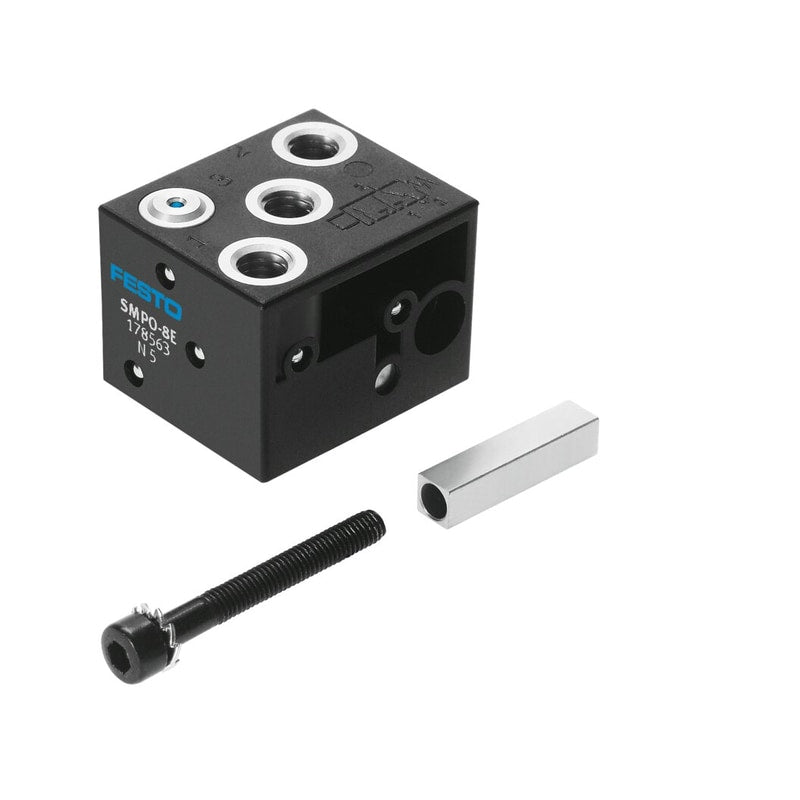

Proximity sensor
SMPO-8E
178563
GTIN 4052568014377
Vendor Festo
Regular price
$106.90
Unit price
SMPO-8E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMPO-8E
Regular price
$106.90
Unit price
SMPO-8E is backordered and will ship as soon as it is back in stock.
proximity sensor SMPO-8E Pneumatic, for drives with T-slot, without mounting kit. Design=for T-slot, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Measuring principle=Magnetic, Operating pressure=2 - 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [6:4:4]
| Design | for T-slot |
|---|---|
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measuring principle | Magnetic |
| Operating pressure | 2 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Ambient temperature | '-15 ... 60 °C |
| Reproducibility of switching value | '+/- 0,2 mm |
| Switch-on time | 22 ms |
| Switch-off time | 52 ms |
| Mounting type | with through holeInsertable in slot from abovewith accessories |
| Valve function | 43526 |
| Pneumatic connection | M5 |
