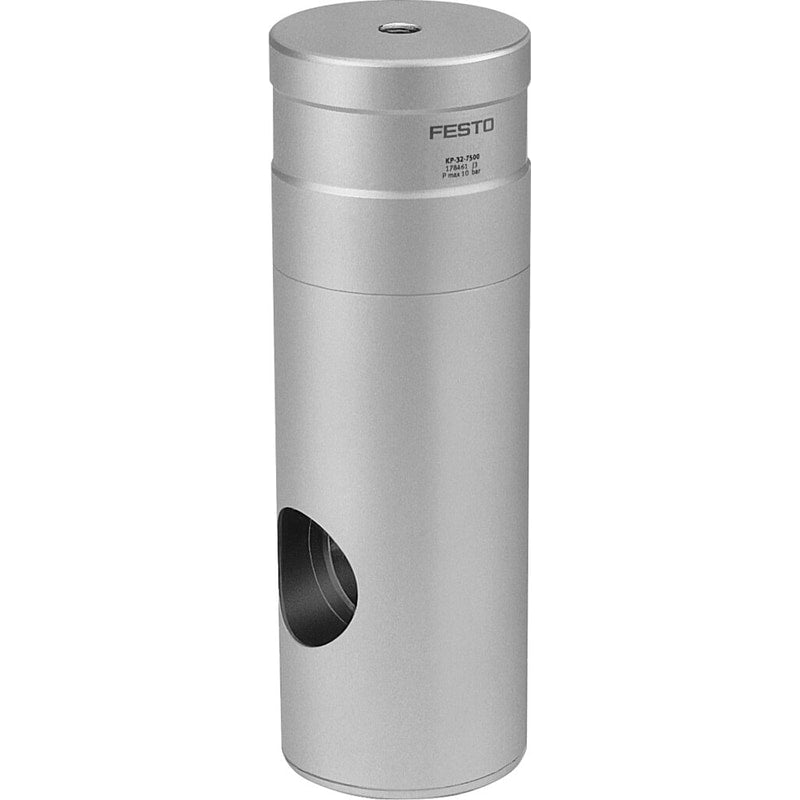

Clamping cartridge
KP-32-7500
178461
GTIN 4052568144258
Vendor Festo
Regular price
$2,287.07
Unit price
KP-32-7500 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KP-32-7500
Regular price
$2,287.07
Unit price
KP-32-7500 is backordered and will ship as soon as it is back in stock.
| Type code | KP |
|---|---|
| Mounting position | Any |
| Clamping type with active direction | Both sidesClamped by spring, released by compressed air |
| Design | Hinge-down panes |
| Variants | Piston rod at one end |
| Operating pressure | ≤ 10 bar |
| Min. release pressure | 3 bar |
| Round material to be clamped | 32 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 80 °C |
| Static holding force | 7500 N |
| Product weight | 1600 g |
| Seals material | TPE-U(PU)NBR |
| Material of spring | Spring steel |
| Housing material | AnodizedAluminum |
| Clamping jaws material | Brass |
| Material of piston | POM |
