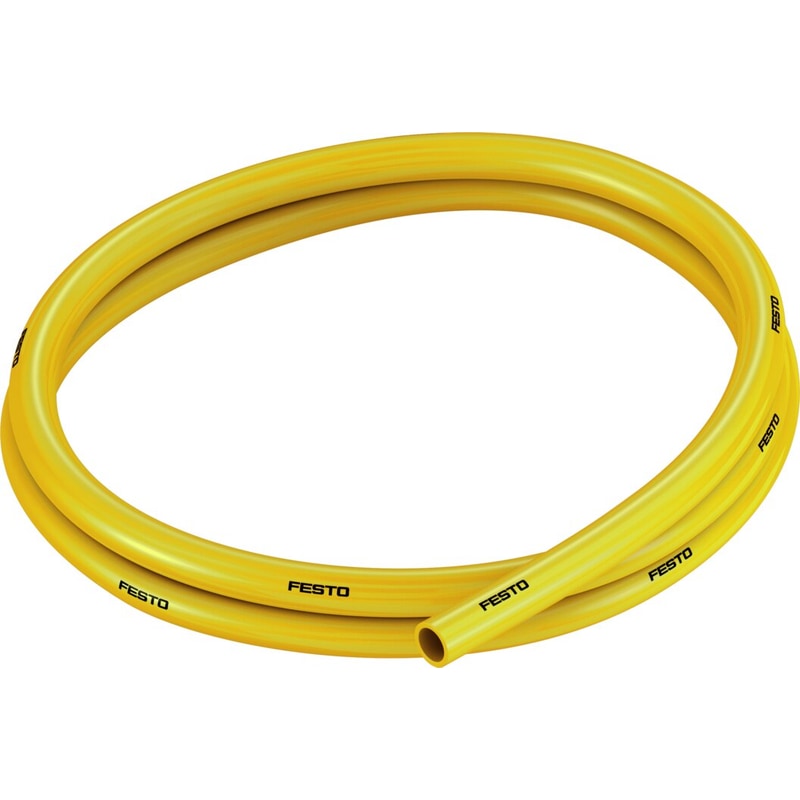

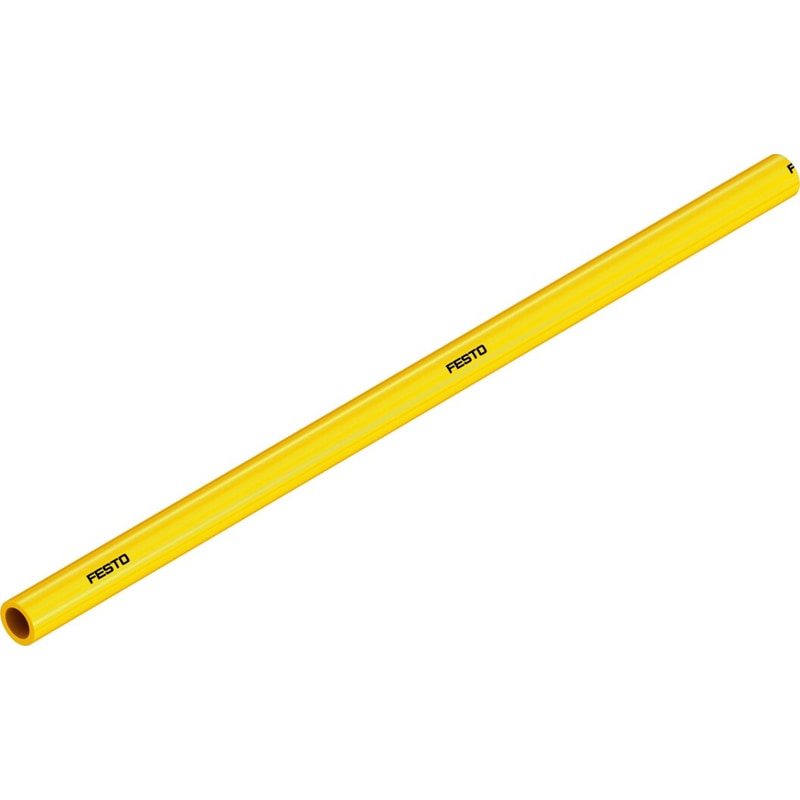

Plastic tubing
PUN-10X1,5-GE
178420
GTIN 4052568038861
Vendor Festo
- Outside diameter
- 10 mm
- Inside diameter
- 7 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -35 °C - 60 °C
Regular price
$5.35
Unit price
PUN-10X1,5-GE Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PUN-10X1,5-GE
Regular price
$5.35
Unit price
PUN-10X1,5-GE Plastic tubing is backordered and will ship as soon as it is back in stock.
| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
|---|---|
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 10 mm |
| Bending radius relevant for flow rate | 54 mm |
| Inside diameter | 7 mm |
| Min. bending radius | 28 mm |
| Type code | PUN |
| Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Material fire test | UL94 HB |
| Ambient temperature | -35 °C ... 60 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight by length | 0.0489 kg/m |
| Pneumatic connection | For plug connection outside diameter 10 mm |
| Color | Yellow |
| Shore hardness | D 52 +/-3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of pneumatic tubing | TPE-U(PU) |
