Displacement encoder
MME-MTS-600-TLF-AIF
178305
GTIN 4052568144098
Vendor Festo
- Stroke
- 600 mm
- Measuring principle of linear potentiometer
- Digital
- Output signal
- CAN protocol type SPC-AIF
- Displacement resolution
- 0.01 mm
- Electrical connection
- Plug - as per DIN 45322 - Round design
Regular price
$2,883.54
Unit price
MME-MTS-600-TLF-AIF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MME-MTS-600-TLF-AIF
Regular price
$2,883.54
Unit price
MME-MTS-600-TLF-AIF is backordered and will ship as soon as it is back in stock.

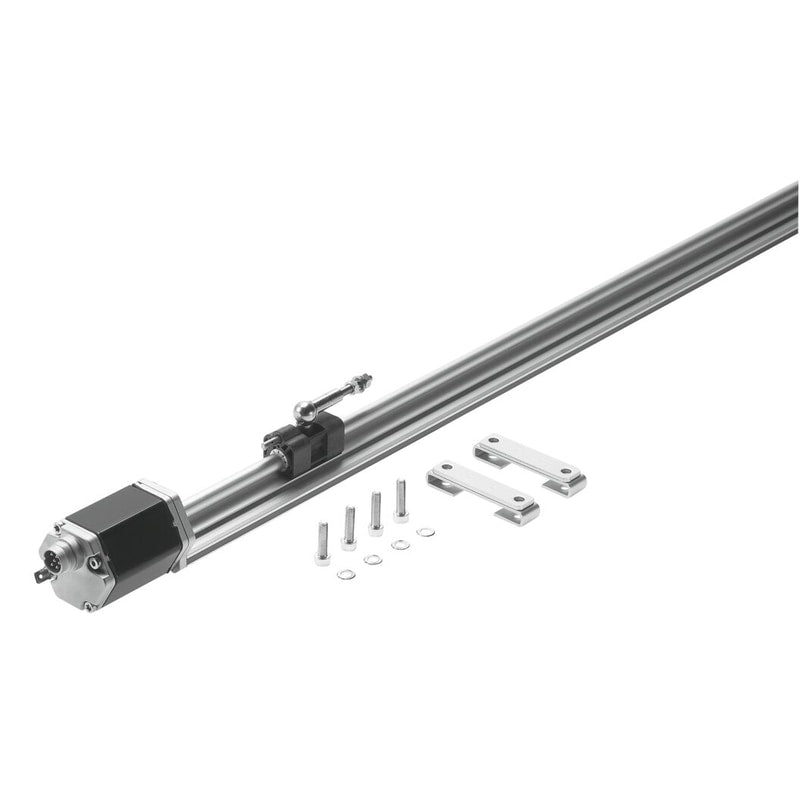

displacement encoder MME-MTS-600-TLF-AIF With absolute displacement encoder, 600 mm effective electrical displacement, for axis controller type SPC-200 CE mark (see declaration of conformity)=to EU directive for EMC, Measuring method: displacement encoder=Digital, Ambient temperature=-40 - 75 °C, Max. travel speed=10 m/s, Max. travel acceleration=200 m/s2
| CE mark (see declaration of conformity) | to EU directive for EMC |
|---|---|
| Measuring method: displacement encoder | Digital |
| Ambient temperature | '-40 ... 75 °C |
| Max. travel speed | 10 m/s |
| Max. travel acceleration | 200 m/s2 |
| Travel resolution | < 0.01 mm |
| Independent linearity | 0,02 %At least ± 50 µm |
| Temperature coefficient | 15 ppm/K |
| Stroke | 600 mm |
| Output signal | CAN protocol, type SPC-AIF |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | '-15 % / +20 % |
| Max. current consumption | 90 mA |
