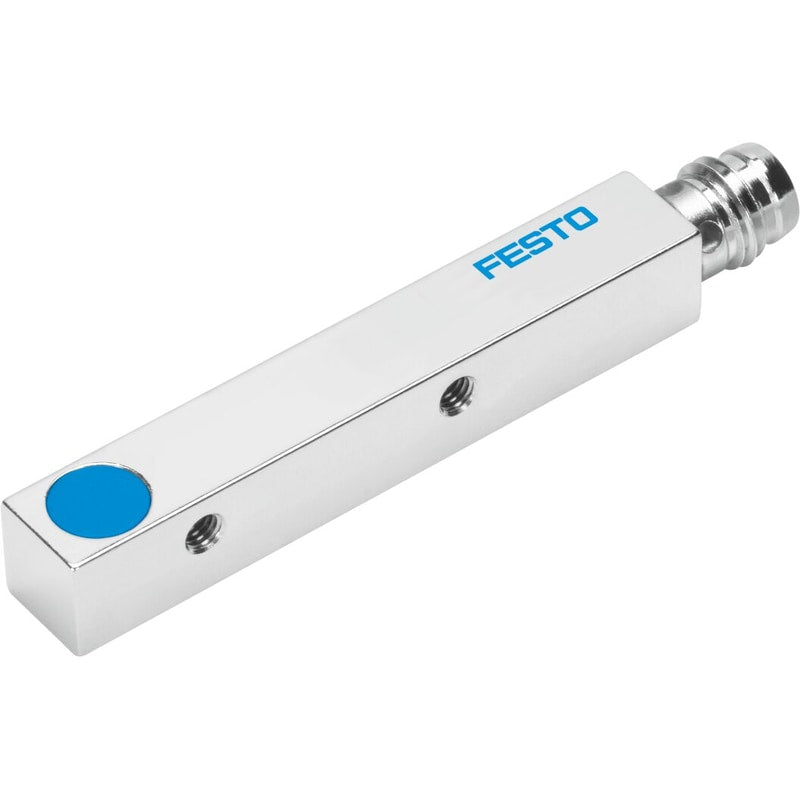

Proximity sensor
SIES-Q8B-PS-S-L
178295
GTIN 4052568075774
Vendor Festo
- Size
- 8x8x59 mm
- Switching output
- PNP
- Switching element function
- N/O contact
- DC operating voltage range
- 10 V - 30 V
Regular price
$117.11
Unit price
SIES-Q8B-PS-S-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIES-Q8B-PS-S-L
Regular price
$117.11
Unit price
SIES-Q8B-PS-S-L is backordered and will ship as soon as it is back in stock.
proximity sensor SIES-Q8B-PS-S-L Inductive, with plug, can be flush-mounted, normally-open function, positive-switching. Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Nominal switching distance=1,5 mm
| Conforms to standard | EN 60947-5-2 |
|---|---|
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Nominal switching distance | 1.5 mm |
| Guaranteed switching distance | 1.2 mm |
| Reduction factors | Aluminium = 0.45Stainless steel, St 18/8 = 0.8Copper = 0.4Brass = 0.55Steel, St 37 = 1.0 |
| Ambient temperature | '-25 ... 70 °C |
| Repetition accuracy | 0.07 mm |
| Switch output | PNP |
| Switching element function | Normally open contact |
| Max. switching frequency | 3,500 Hz |
| Max. switching frequency, DC | 1,500 Hz |
