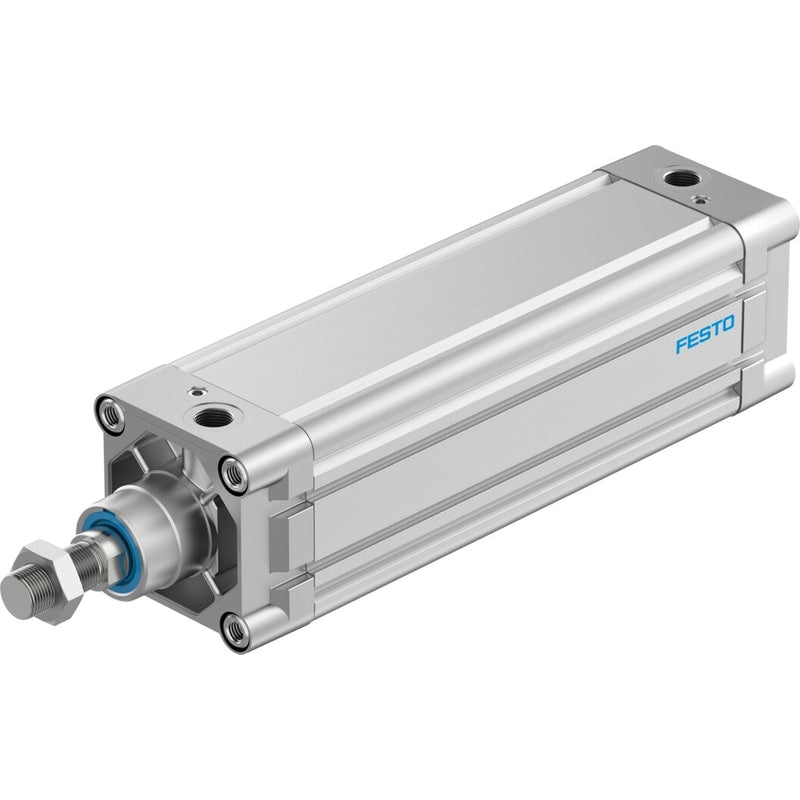

Profile cylinder
DNC-5"-1 5/8"-P-A
178102
GTIN 4052568321369
Vendor Festo
Regular price
$831.33
Unit price
DNC-5"-1 5/8"-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DNC-5"-1 5/8"-P-A
Regular price
$831.33
Unit price
DNC-5"-1 5/8"-P-A is backordered and will ship as soon as it is back in stock.
profile cylinder DNC-5"-15/8"-P-A per ISO 15552, with profile cylinder barrel, with sensing option, non-adjustable cushioning. Stroke=1,625 ", Piston diameter=5", Piston rod thread=UNF1-12, Based on the standard=ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290), Cushioning=P: Flexible cushioning rings/plates at both ends
| Stroke | 1.625 " |
|---|---|
| Piston diameter | 5" |
| Piston rod thread | UNF1-12 |
| Based on the standard | ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290) |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 0.6 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
