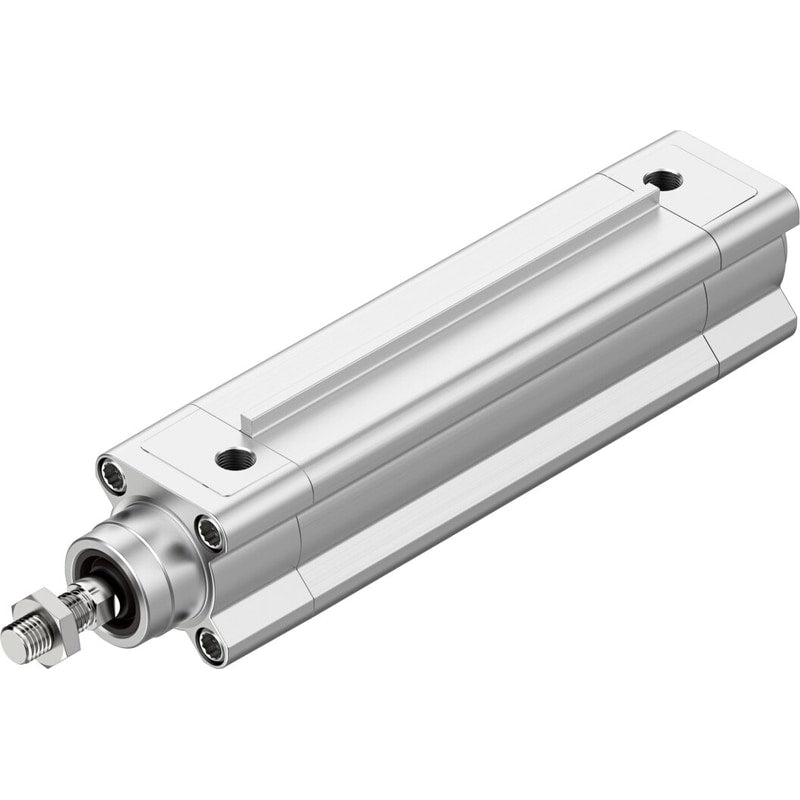

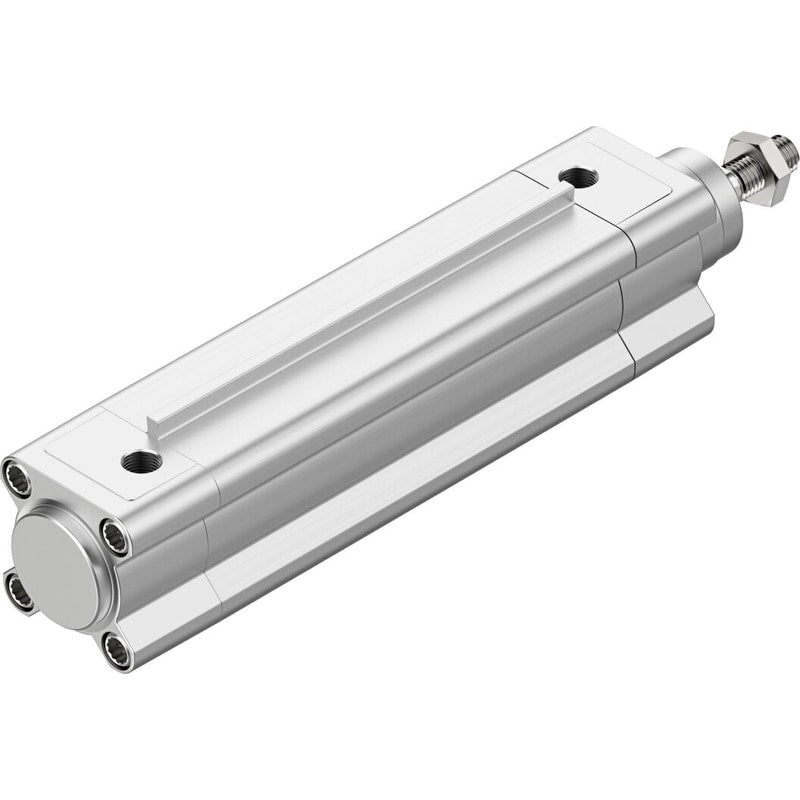

ISO cylinder
DSBF-C-50-80-PPSA-N3-R
1780286
GTIN 4052568247638
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 50 mm
- Theoretical force at 6 bar, advancing
- 1178 N
- Stroke
- 80 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$339.77
Unit price
DSBF-C-50-80-PPSA-N3-R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSBF-C-50-80-PPSA-N3-R
Regular price
$339.77
Unit price
DSBF-C-50-80-PPSA-N3-R is backordered and will ship as soon as it is back in stock.
ISO cylinder DSBF-C-50-80-PPSA-N3-R Stroke=80 mm, Piston diameter=50 mm, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any, Conforms to standard=ISO 15552
| Stroke | 80 mm |
|---|---|
| Piston diameter | 50 mm |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Operating pressure | 0.6 ... 12 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
