Piping system

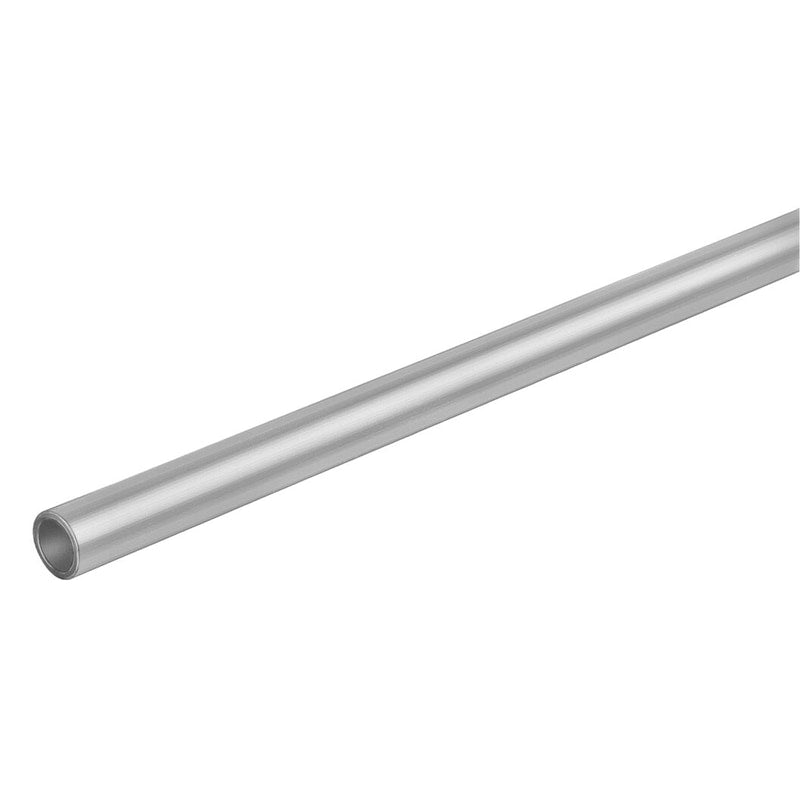

PQ-AL-22X1X3000
177735
GTIN 4052568075651
Vendor Festo
- Outside diameter
- 22 mm
- Inside diameter
- 20 mm
- Material of pneumatic tubing
- Wrought aluminum alloy
- Temperature-dependent operating pressure
- -0.95 bar - 15 bar
- Ambient temperature
- -30 °C - 75 °C
Regular price
$50.19
Unit price
PQ-AL-22X1X3000 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PQ-AL-22X1X3000
Regular price
$50.19
Unit price
PQ-AL-22X1X3000 is backordered and will ship as soon as it is back in stock.
| Outside diameter | 22 mm |
|---|---|
| Inside diameter | 20 mm |
| Type code | PQ-AL |
| Temperature-dependent operating pressure | -0.95 bar ... 15 bar |
| Temperature of medium | -25 °C ... 75 °C |
| Ambient temperature | -30 °C ... 75 °C |
| Product weight by length | 0.178 kg/m |
| Color | Silver |
| Note on materials | RoHS-compliant |
| Material of pneumatic tubing | Wrought aluminum alloy |
