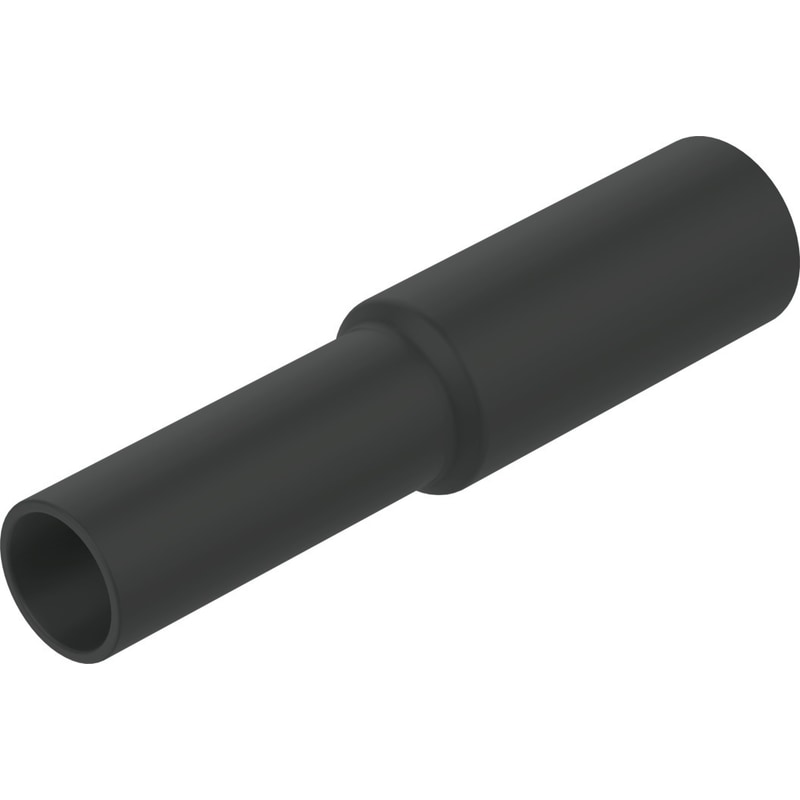

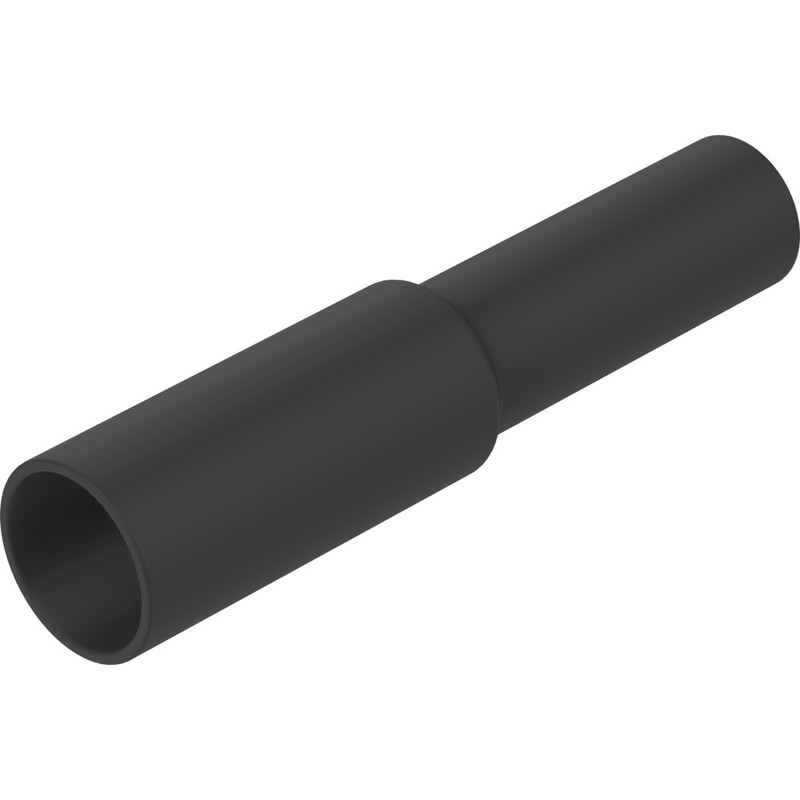

Push-in sleeve
CQH-22-QS-16
177723
GTIN 4052568038687
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve CQ-22
- Pneumatic connection 2
- Push-in sleeve QS-16
- Temperature-dependent operating pressure
- -0.95 bar - 15 bar
- Ambient temperature
- -25 °C - 70 °C
- Nominal width
- 11 mm
Regular price
$12.36
Unit price
CQH-22-QS-16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQH-22-QS-16
Regular price
$12.36
Unit price
CQH-22-QS-16 is backordered and will ship as soon as it is back in stock.
push-in sleeve CQH-22-QS-16 to be used as a connection from CQ to QS-fittings. Nominal size=11 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 7 bar
| Fitting Type | Push-in Sleeve |
|---|---|
| Nominal size | 11 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Product weight | 10 g |
| connection 1 | Push-in sleeve QS-16 |
| connection 2 | Push-in sleeve CQ-12 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | POM |
