Distributor
CQD-12/15/18/22
177717
GTIN 4052568075620
Vendor Festo
Regular price
$57.83
Unit price
CQD-12/15/18/22 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQD-12/15/18/22
Regular price
$57.83
Unit price
CQD-12/15/18/22 is backordered and will ship as soon as it is back in stock.

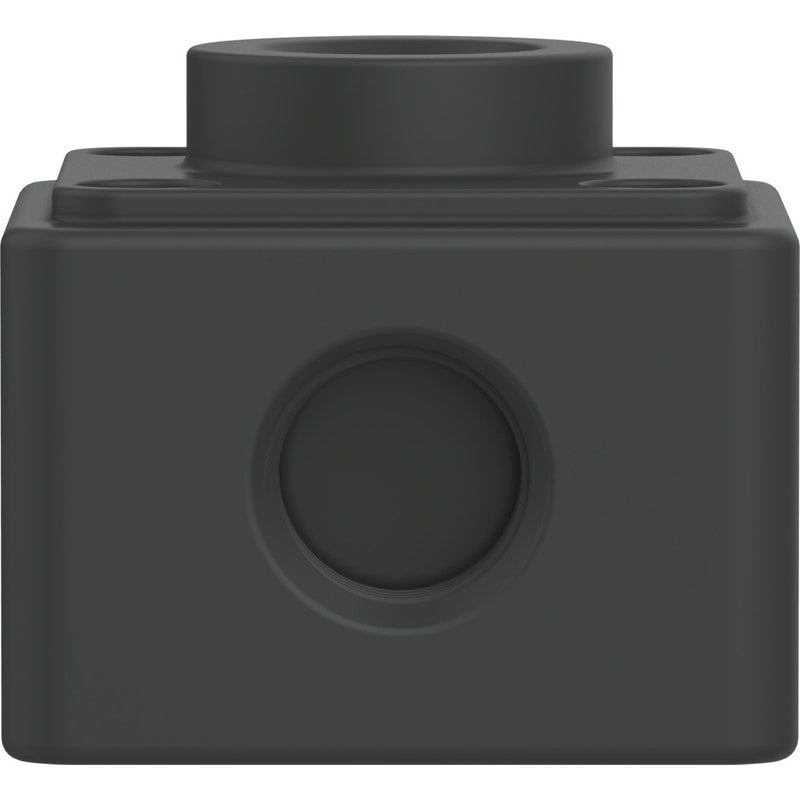

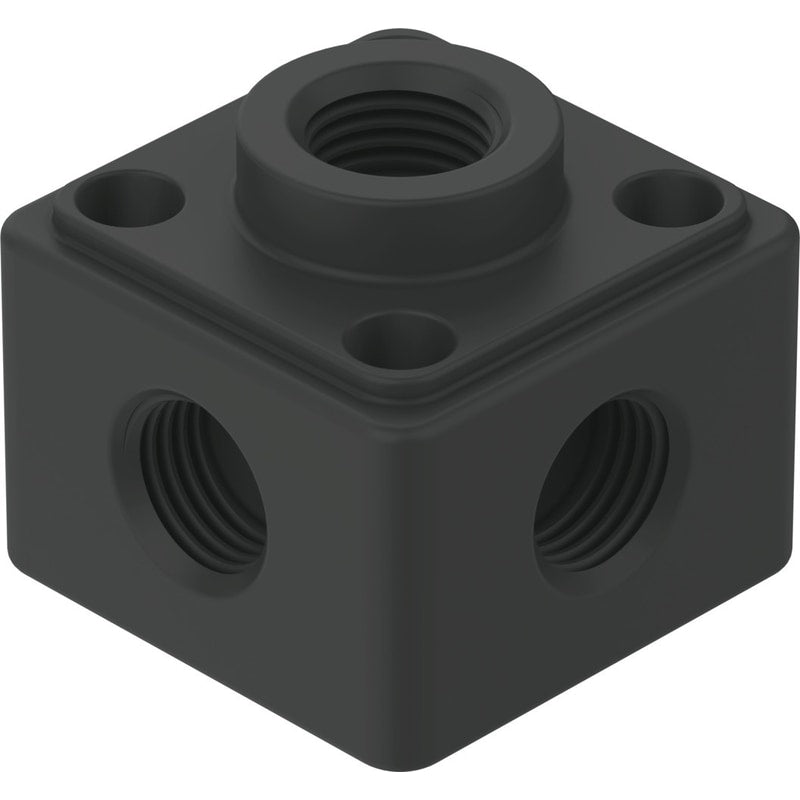

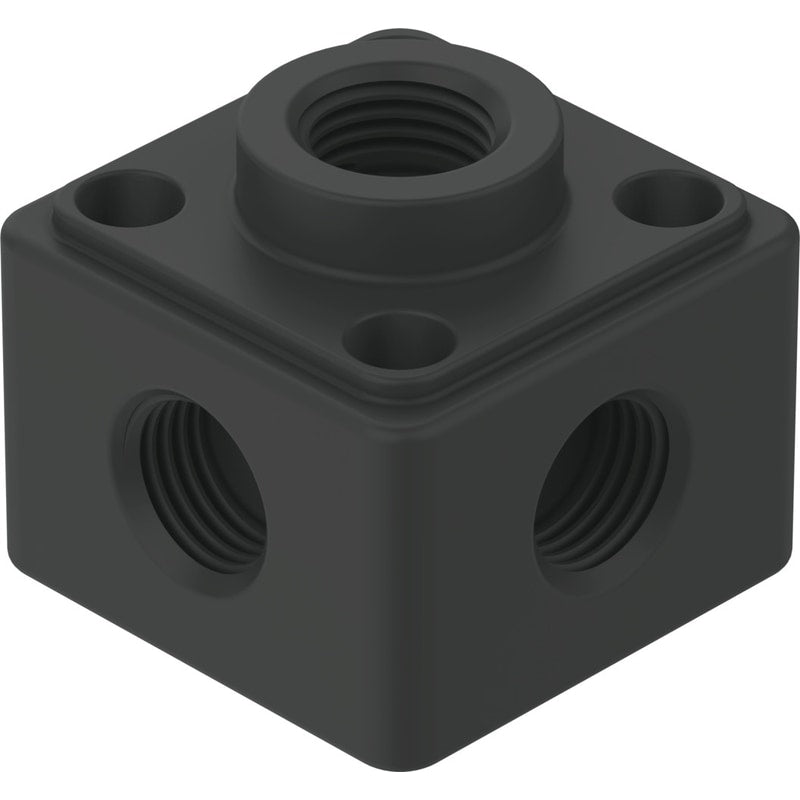

distributor CQD-12/15/18/22 With four blanking plugs. Nominal size=18,6 mm, Assembly position=Any, Container size=1, Operating pressure complete temperature range=-0,95 - 7 bar, Temperature dependent operating pressure=-0,95 - 15 bar
| Fitting Type | Y Distributor |
|---|---|
| Nominal size | 18.6 mm |
| Assembly position | Any |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-25 ... 75 °C |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 2.5 Nm |
| Tolerance for nominal tightening torque | ± 10 % |
| Number of outputs | 4 |
| Number of supply lines | 1 |
| connection 1 | Female thread G1/2 |
| connection 2 | Female thread G1/2 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | POM |
