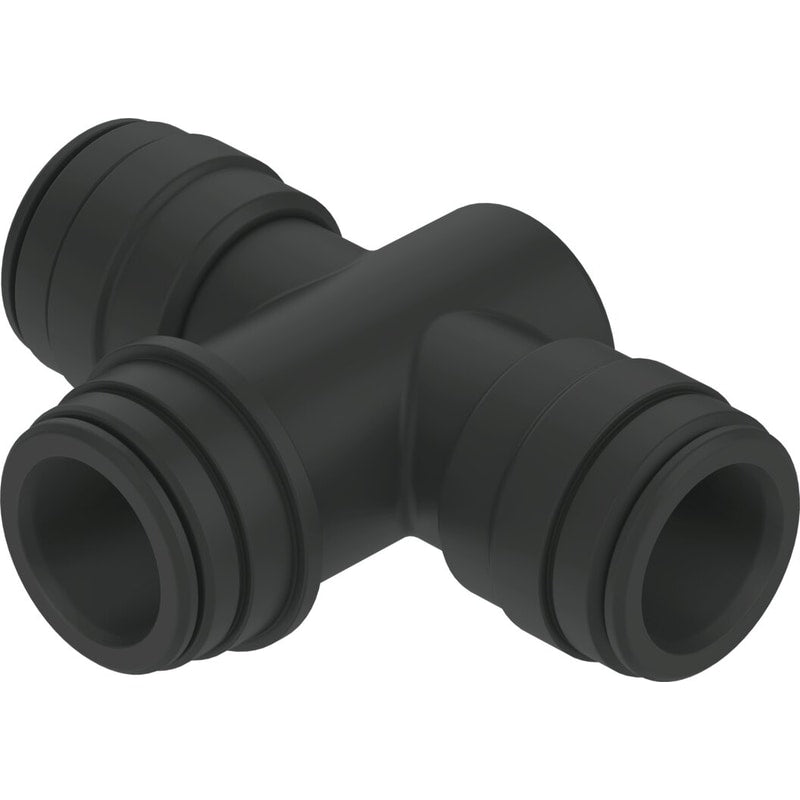

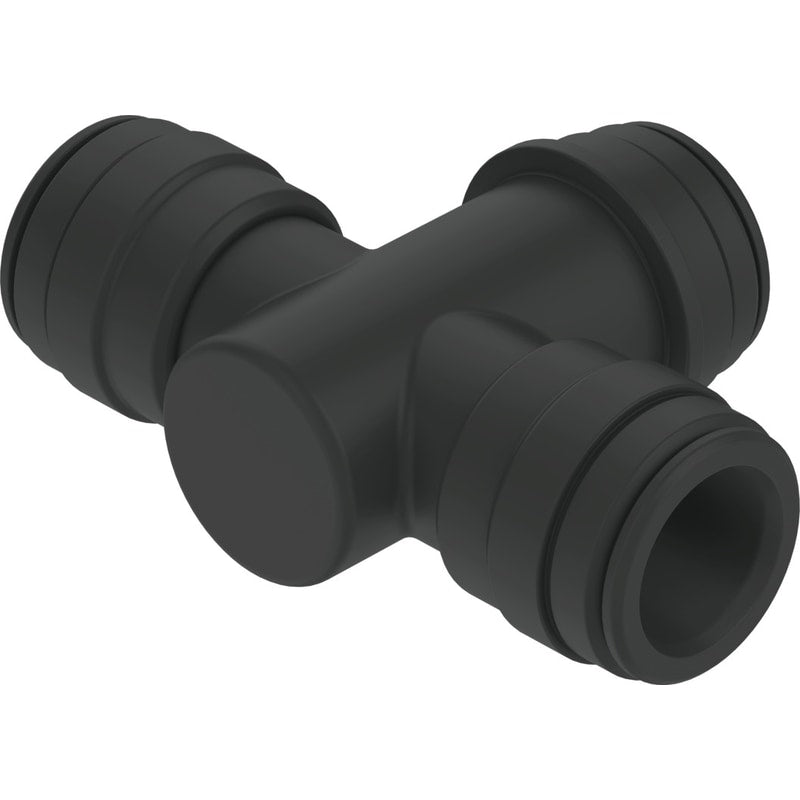

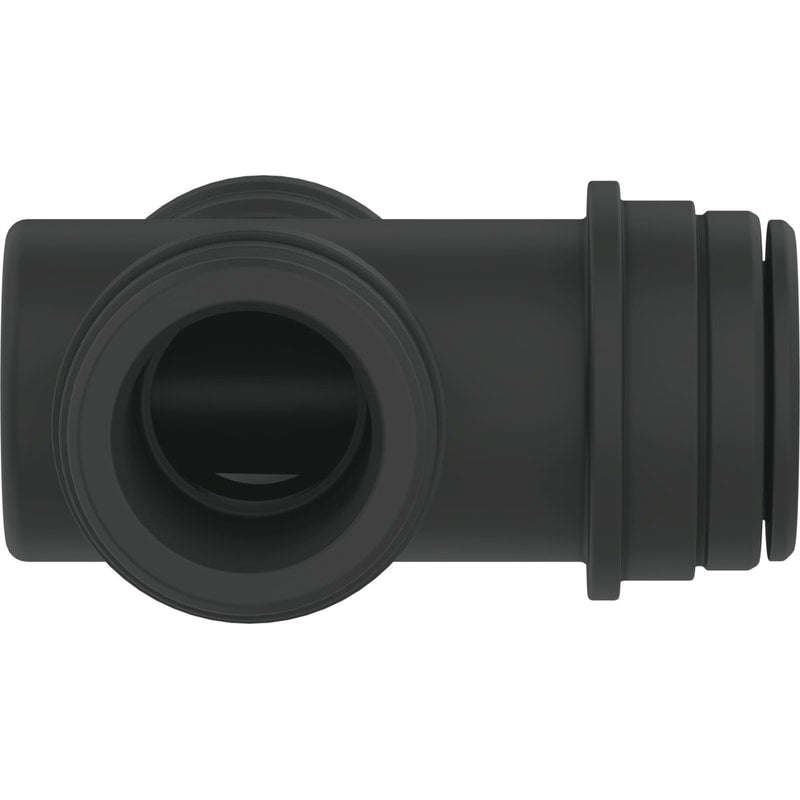

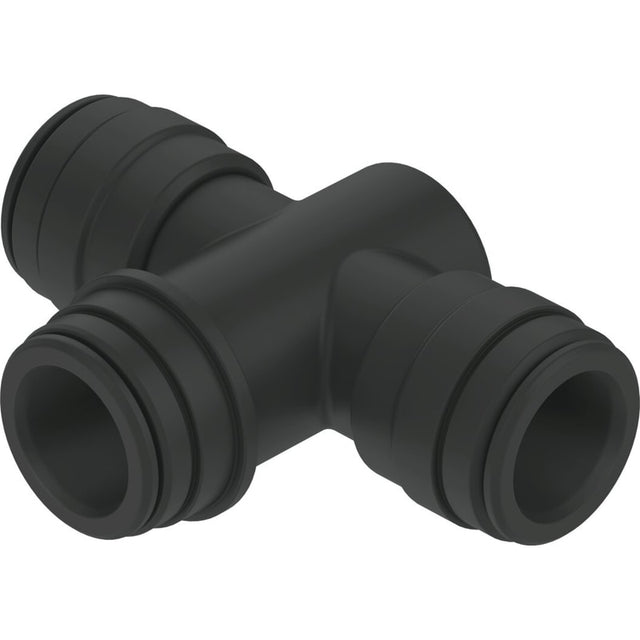

Fluid separator
CQA-22
177716
GTIN 4052568038656
Vendor Festo
Regular price
$41.58
Unit price
CQA-22 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQA-22
Regular price
$41.58
Unit price
CQA-22 is backordered and will ship as soon as it is back in stock.
fluid separator CQA-22 For dry air. Nominal size=12 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 7 bar
| Fitting Type | n/a |
|---|---|
| Nominal size | 12 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Medium temperature | '-25 ... 75 °C |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Product weight | 76 g |
| connection 1 | 22mm outside diameter, for tube/piping |
| connection 2 | 22mm outside diameter, for tube/piping |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | POM |
| Material release ring | POM |
