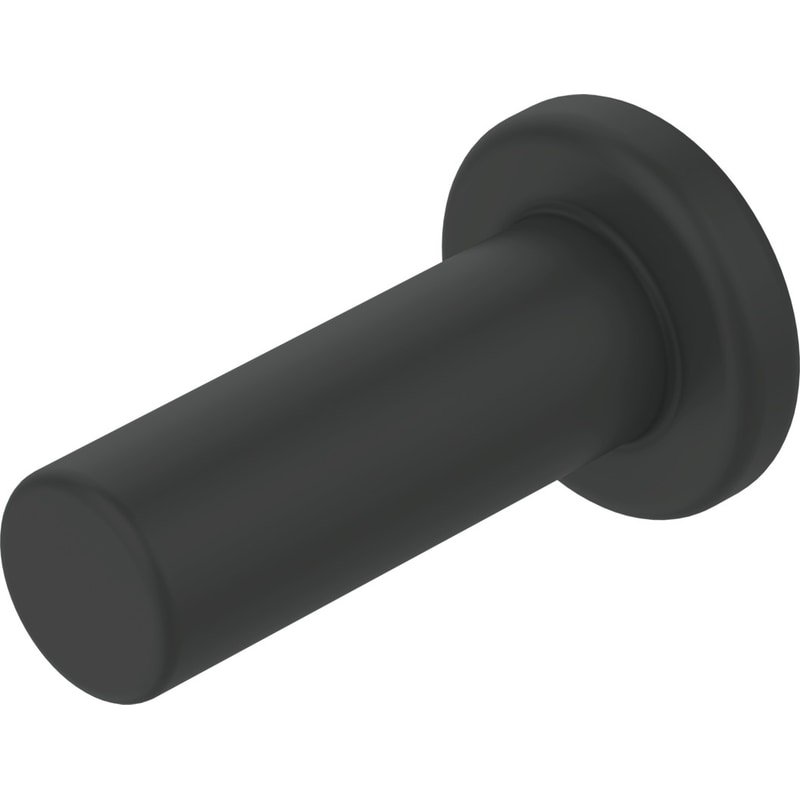

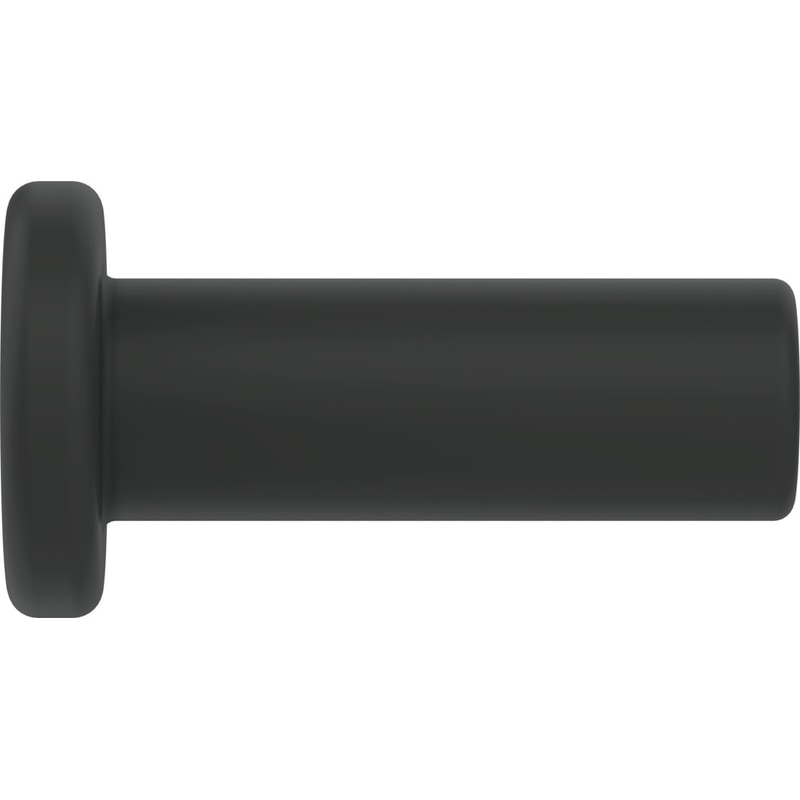

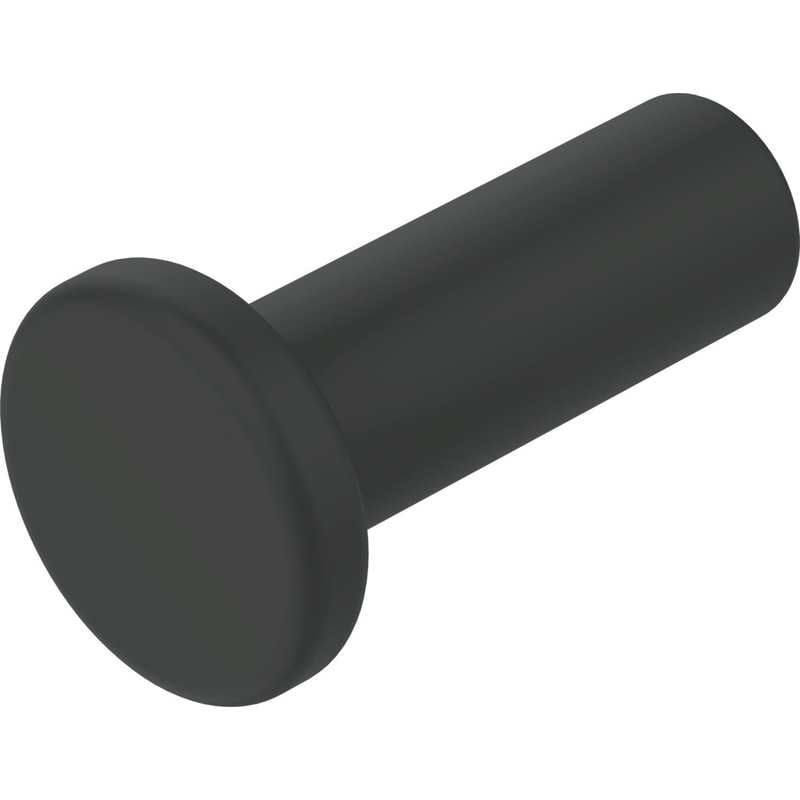

Blanking plug
CQC-12H
177712
GTIN 4052568038618
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve CQ-12
- Pneumatic connection 2
- Push-in sleeve CQ-12
- Temperature-dependent operating pressure
- -0.95 bar - 15 bar
- Ambient temperature
- -25 °C - 70 °C
Regular price
$4.71
Unit price
CQC-12H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQC-12H
Regular price
$4.71
Unit price
CQC-12H is backordered and will ship as soon as it is back in stock.
blanking plug CQC-12H To seal quick connectors. Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 7 bar, Temperature dependent operating pressure=-0,95 - 15 bar
| Fitting Type | n/a |
|---|---|
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Product weight | 4 g |
| connection 1 | Push-in sleeve CQ-12 |
| connection 2 | Push-in sleeve CQ-12 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material blanking plug | POM |
