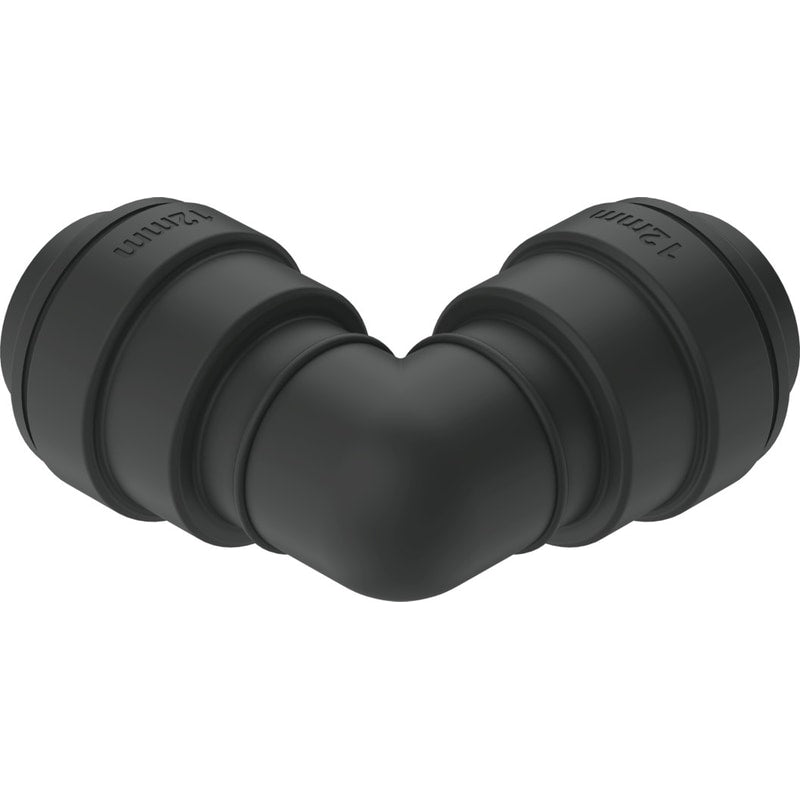

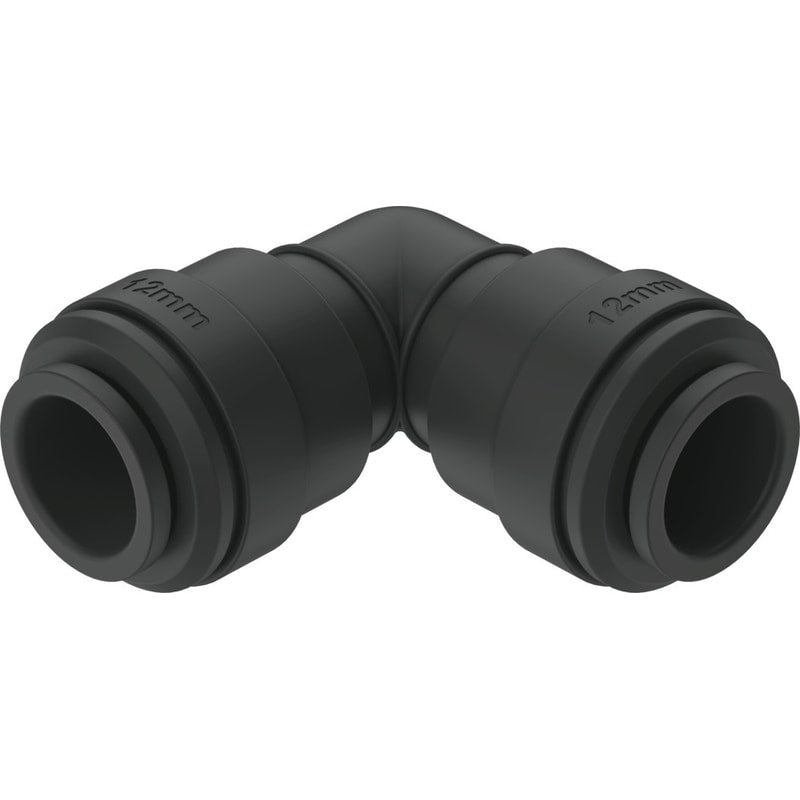

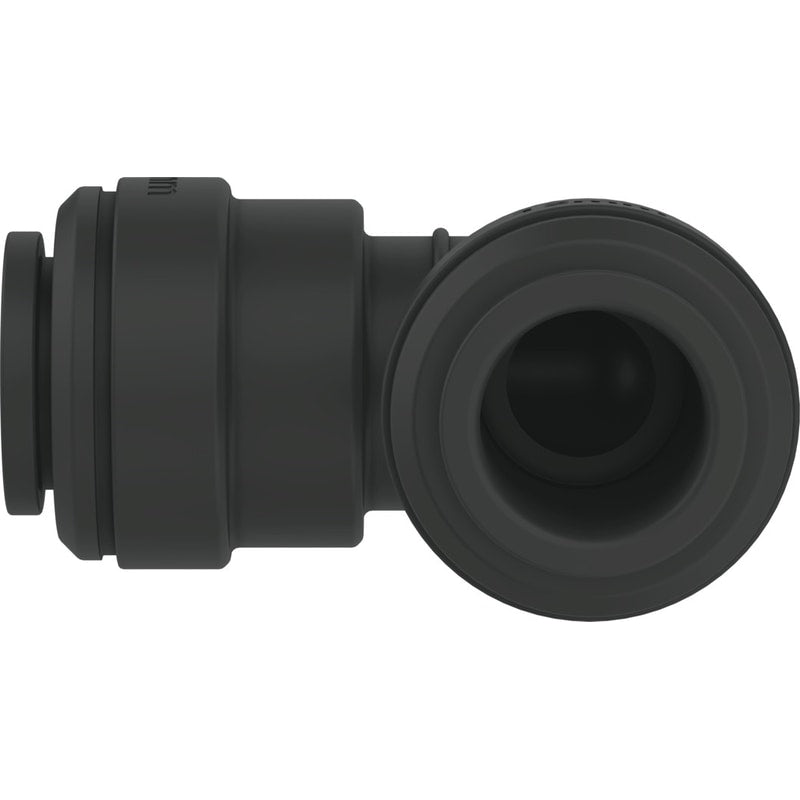

Push-in L-connector
CQL-18
177693
GTIN 4052568038427
Vendor Festo
- Pneumatic connection 1
- For pipe and pneumatic tubing outside diameter of 18 mm
- Pneumatic connection 2
- for piping system/pneumatic tubing outside diameter of 18 mm
- Temperature-dependent operating pressure
- -0.95 bar - 15 bar
- Ambient temperature
- -25 °C - 70 °C
- Nominal width
- 16 mm
Regular price
$19.28
Unit price
CQL-18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQL-18
Regular price
$19.28
Unit price
CQL-18 is backordered and will ship as soon as it is back in stock.
push-in L-connector CQL-18 For high flow rates. Nominal size=16 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 7 bar
| Fitting Type | Union Elbow |
|---|---|
| Nominal size | 16 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Product weight | 32 g |
| connection 1 | 18mm outside diameter, for tube/piping |
| connection 2 | 18mm outside diameter, for tube/piping |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | POM |
| Material release ring | POM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
