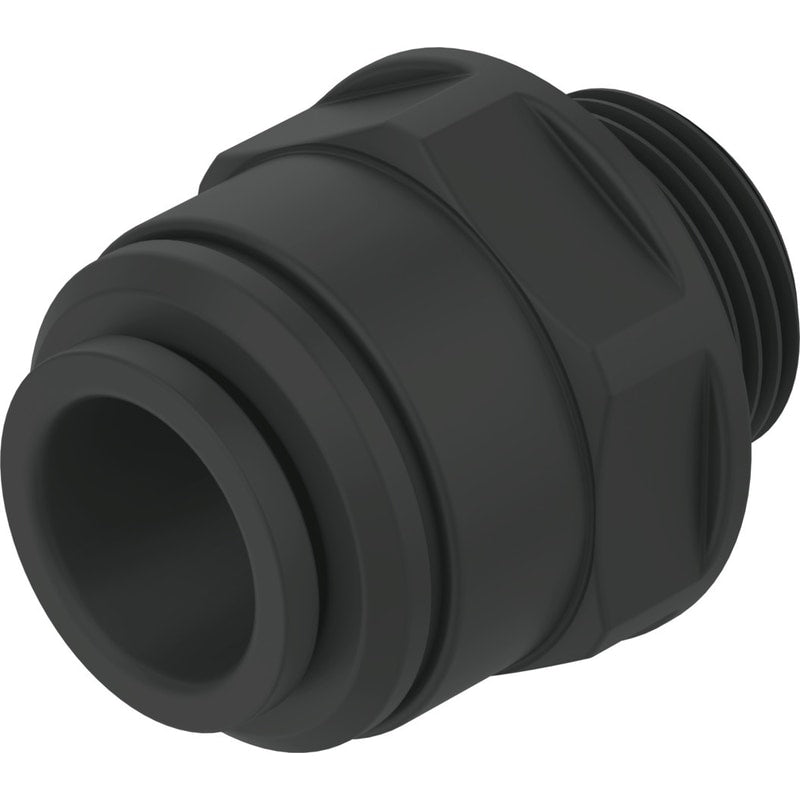

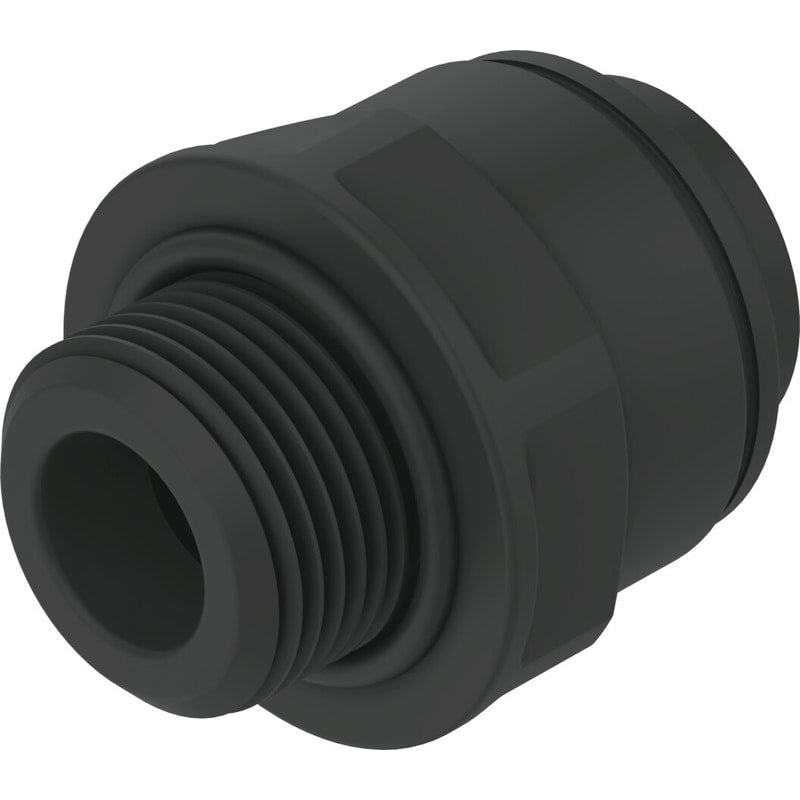

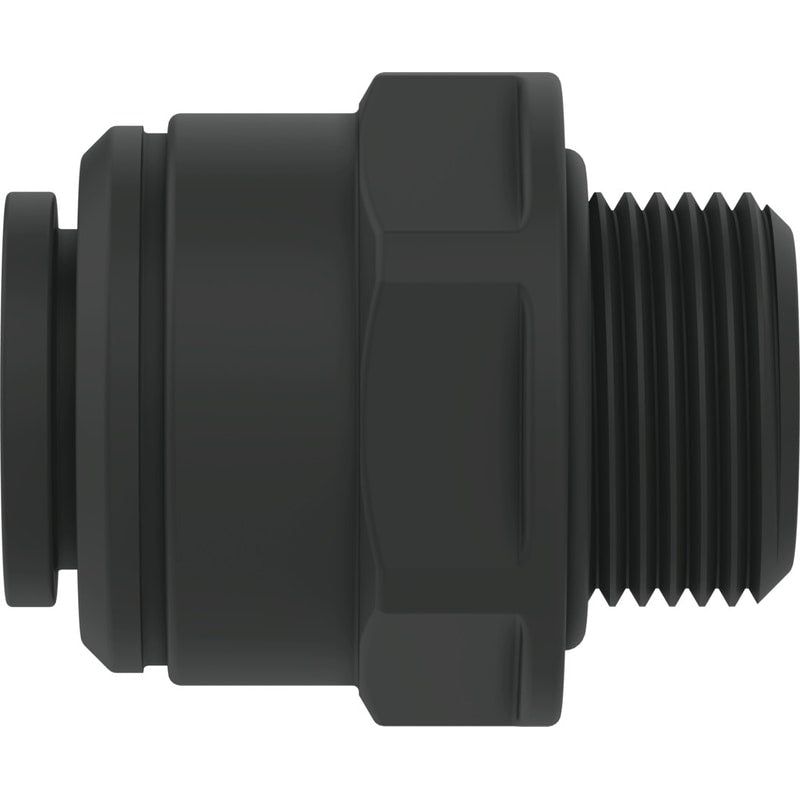

Push-in fitting
CQ-3/8-12
177682
GTIN 4052568038311
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for piping system/pneumatic tubing outside diameter of 12 mm
- Temperature-dependent operating pressure
- -0.95 bar - 15 bar
- Ambient temperature
- -25 °C - 70 °C
- Nominal width
- 8.65 mm
Regular price
$11.86
Unit price
CQ-3/8-12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQ-3/8-12
Regular price
$11.86
Unit price
CQ-3/8-12 is backordered and will ship as soon as it is back in stock.
push-in fitting CQ-3/8-12 For high flow rates. Nominal size=8,65 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Push-in Sleeve |
|---|---|
| Nominal size | 8.65 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 2.5 Nm |
| Tolerance for nominal tightening torque | ± 10 % |
| Product weight | 8 g |
| connection 1 | Male thread G3/8 |
| connection 2 | 12mm outside diameter, for tube/piping |
| Materials note | Contains PWIS substancesConforms to RoHS |
