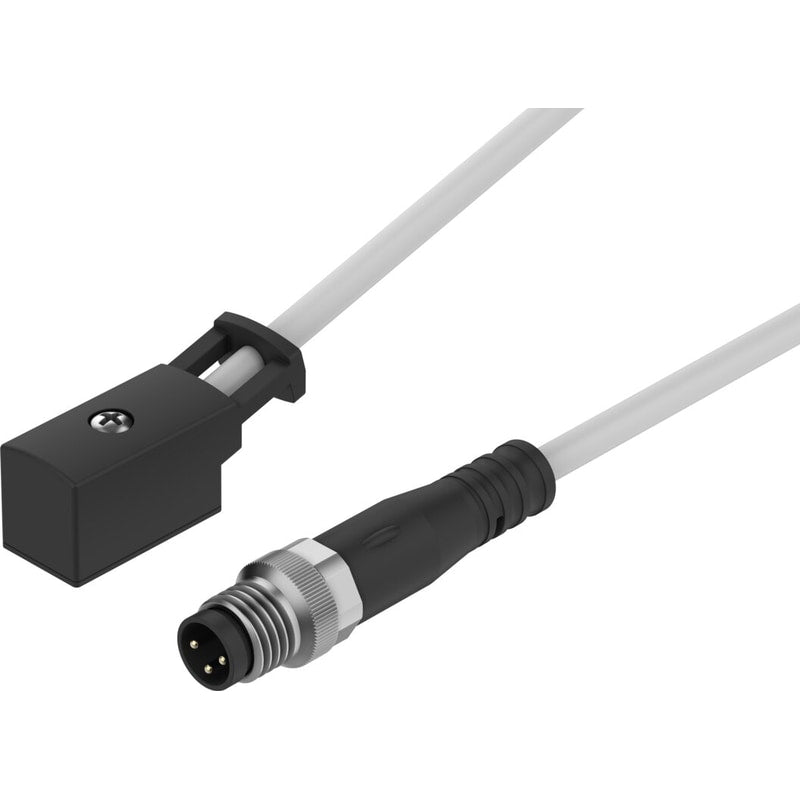

Connecting cable
KMYZ-2-24-M8-0,5-LED
177676
GTIN 4052568075590
Vendor Festo
- Electrical connection
- Rectangular design/M8x1
- Cable length
- 0.5 m
Regular price
$67.08
Unit price
KMYZ-2-24-M8-0,5-LED is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMYZ-2-24-M8-0,5-LED
Regular price
$67.08
Unit price
KMYZ-2-24-M8-0,5-LED is backordered and will ship as soon as it is back in stock.
connecting cable KMYZ-2-24-M8-0,5-LED For vacuum generators VAD-MYB, VADM, VADMI and multi-pin distributor MPV. Switching position indicator=LED, Mounting type=On solenoid valve with self-tapping screw, Assembly position=Any, Product weight=18 g, Electrical connection=(* angled socket / straight plug, * square design / M8x1, * 2-pin / 3-pin)
| Switching position indicator | LED |
|---|---|
| Mounting type | On solenoid valve with self-tapping screw |
| Assembly position | Any |
| Product weight | 18 g |
| Electrical connection | angled socket / straight plugsquare design / M8x12-pin / 3-pin |
| Nominal operating voltage DC | 24 V |
| Acceptable current load at 40°C | 0.0416666666666667 |
| Protective earth connection | Not available |
| Cable length | 0.5 m |
| Cable attribute | Standard |
| Cable diameter | 3.4 mm |
| Cable structure | 2x0,25 |
| Protection class | IP65 |
