Timer
PZVT-120-SEC
177616
GTIN 4052568143886
Vendor Festo
Regular price
$579.11
Unit price
PZVT-120-SEC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PZVT-120-SEC
Regular price
$579.11
Unit price
PZVT-120-SEC is backordered and will ship as soon as it is back in stock.

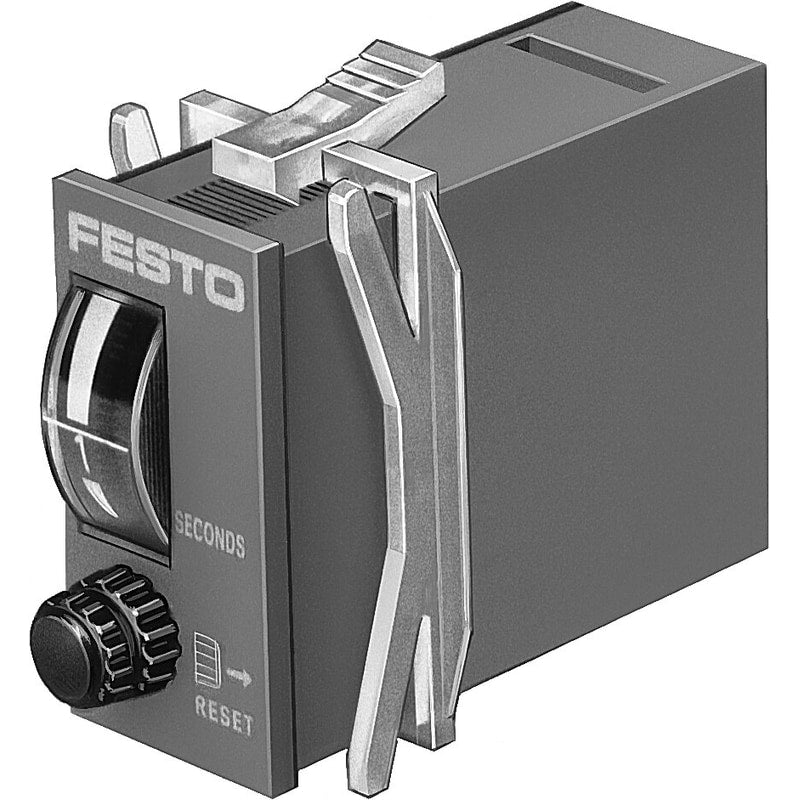

timer PZVT-120-SEC Design structure=mechanical sequence counter with pneumatic drive, Switch-off pressure=<= 0,1 bar, Operating pressure=2 - 6 bar, Switch-on pressure=>= 1,6 bar, Standard nominal flow rate=50 l/min
| Design structure | mechanical sequence counter with pneumatic drive |
|---|---|
| Switch-off pressure | <= 0.1 bar |
| Operating pressure | 2 ... 6 bar |
| Switch-on pressure | >= 1.6 bar |
| Standard nominal flow rate | 50 l/min |
| Adjustable delay times | 8 ... 120 s |
| Setting accuracy | ± 3 s |
| Pause period for reset | >= 200 ms |
| Repetition accuracy, time setting | ± 1,2 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Protection class | IP54to IEC 60529With protective cover and panel frame |
| Ambient temperature | '-10 ... 60 °C |
