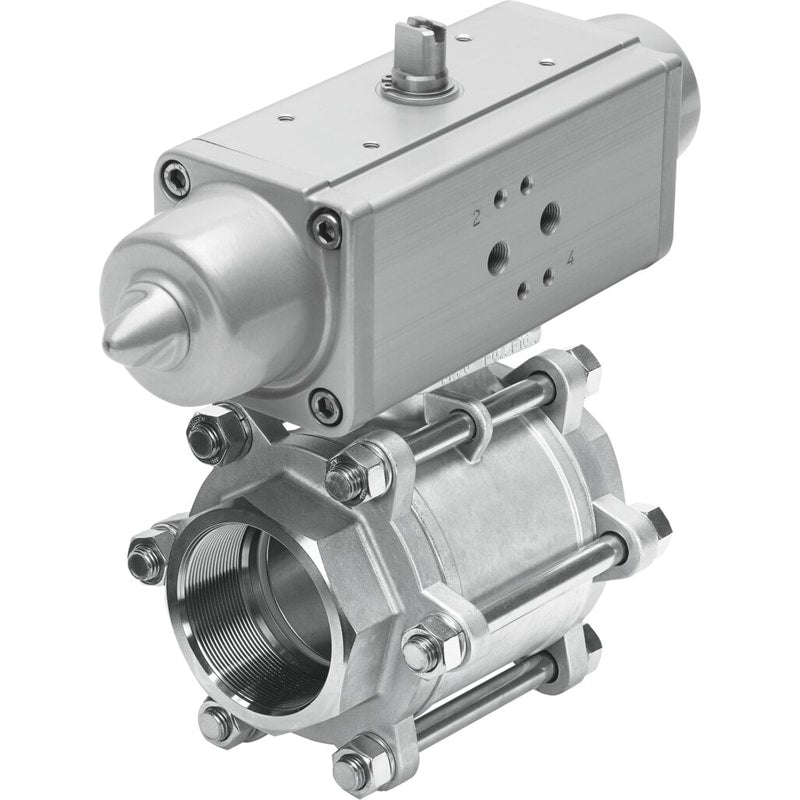

Ball valve actuator unit
VZBA-3"-WW-63-T-22-F0710-V4V4T-PS180-R-90-4-C
1774112
GTIN 4052568246860
Vendor Festo
- Structural design
- 2-way ball valve - Quarter turn actuator
- Flow rate Kv
- 905 m³/h
- Fitting connection
- Weld-on ends/weld-on ends
- Actuation type
- Pneumatic
Regular price
$2,887.57
Unit price
VZBA-3"-WW-63-T-22-F0710-V4V4T-PS180-R-90-4-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBA-3"-WW-63-T-22-F0710-V4V4T-PS180-R-90-4-C
Regular price
$2,887.57
Unit price
VZBA-3"-WW-63-T-22-F0710-V4V4T-PS180-R-90-4-C is backordered and will ship as soon as it is back in stock.
2-way or 3-way ball valve actuator: the ideal combination of pneumatic quarter turn actuator and ball valve.
| Type code | VZBA |
|---|---|
| Design | Quarter turn actuator2-way ball valve |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp3/4 |
| Switching position indication | Slot direction = flow direction |
| Nominal width DN | 20 |
| Operating pressure | 6 bar ... 8.4 bar |
| Nominal pressure of fitting PN | 63 |
| Symbol | 00992011 |
| Medium | Water – no water vaporInert gasNeutral liquidsCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 200 °C |
| Ambient temperature | -10 °C ... 80 °C |
| Flow rate Kv | 45.6 m³/h |
| Max. surface temperature of assembly | TX |
| Explosion group of assembly | IIC, IIIC |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFE-reinforcedPTFE |
| Ball material | High-alloy stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 3100 g |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Explosive ambient temperature | -10°C <= Ta <= +60°C |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX)Zone 21 (ATEX)Zone 1 (ATEX) |
