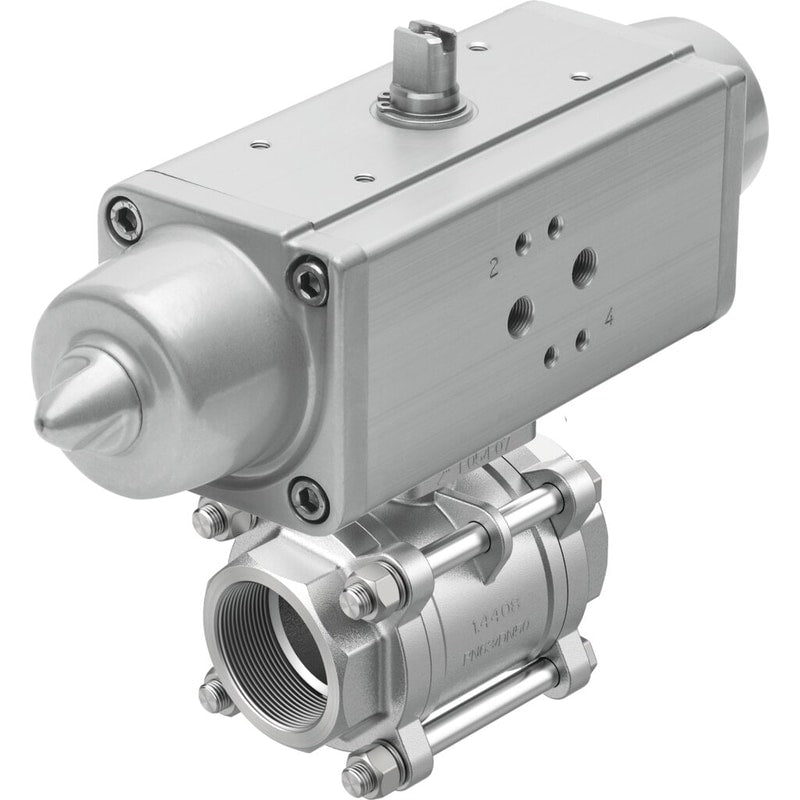

Ball valve actuator unit
VZBA-1/4"-GG-63-T-22-F0304-V4V4T-PS15-R-90-4-C
1758069
GTIN 4052568246532
Vendor Festo
- Structural design
- 2-way ball valve - Quarter turn actuator
- Flow rate Kv
- 7 m³/h
- Fitting connection
- Rp1/4
- Actuation type
- Pneumatic
Regular price
$507.62
Unit price
VZBA-1/4"-GG-63-T-22-F0304-V4V4T-PS15-R-90-4-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBA-1/4"-GG-63-T-22-F0304-V4V4T-PS15-R-90-4-C
Regular price
$507.62
Unit price
VZBA-1/4"-GG-63-T-22-F0304-V4V4T-PS15-R-90-4-C is backordered and will ship as soon as it is back in stock.
VZBC: the automatable, compact, flanged, 2-way ball valve for control of media.
| Type code | VZBC |
|---|---|
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Ring housing with threaded flange |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F07F10 |
| Inside diameter | 96 mm |
| Nominal width DN | 100 |
| Valve function | 2/2 |
| Manual override | None |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 16 |
| Actuating torque | 148 Nm |
| Based on norm | ISO 5211EN 1092-1 |
| Symbol | 00991458 |
| Medium | Other flow media on requestCompressed air as per ISO 8573-1:2010 [-:-:-]Neutral liquidsInert gasWater – no water vapor |
| Temperature of medium | -10 °C ... 200 °C |
| Flow rate Kv | 1414 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFEPTFE-reinforced |
| Ball material | High-alloy stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 20600 g |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 22 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX) |
