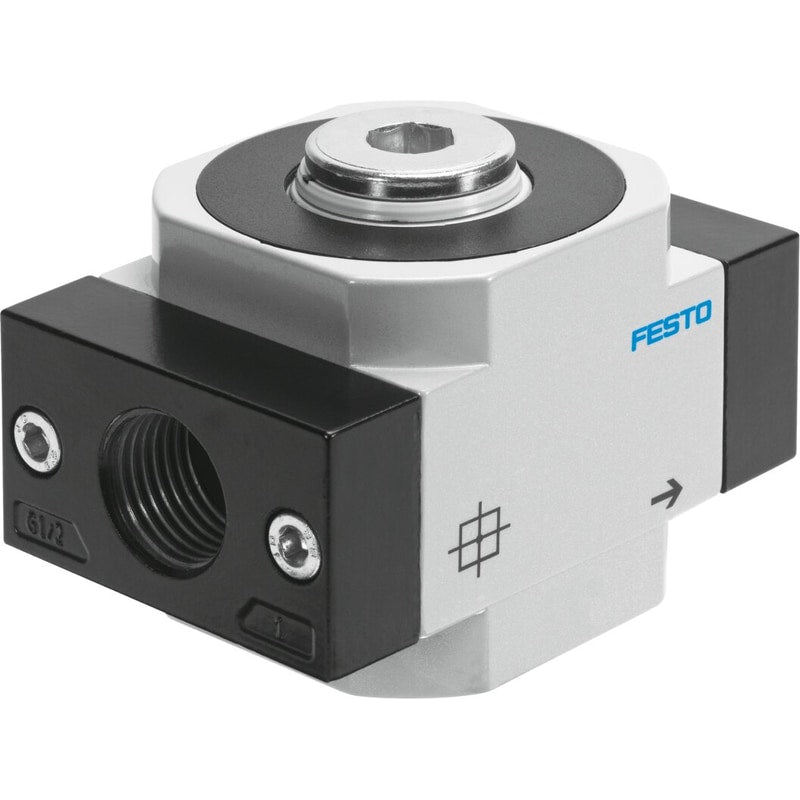

Branching module
FRM-1/2-D-MIDI-NPT
173928
GTIN 4052568315962
Vendor Festo
- Pneumatic connection 1
- 1/2 NPT
- Standard nominal flow rate in main flow direction 1 -> 2
- 8200 l/min
- Operating pressure
- 0 bar - 16 bar
Regular price
$108.73
Unit price
Branching module FRM-1/2-D-MIDI-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRM-1/2-D-MIDI-NPT
Regular price
$108.73
Unit price
Branching module FRM-1/2-D-MIDI-NPT is backordered and will ship as soon as it is back in stock.
| Type code | FRM |
|---|---|
| Mounting position | Any |
| Design | Branching module |
| Symbol | 991510 |
| Operating pressure | 0 bar ... 16 bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 8200 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-]Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:-:-]Inert gas |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 502 g |
| Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT |
| Pneumatic connection 3 | G1/2 |
| Pneumatic connection 4 | G1/4 |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Housing material | Die-cast aluminum |
