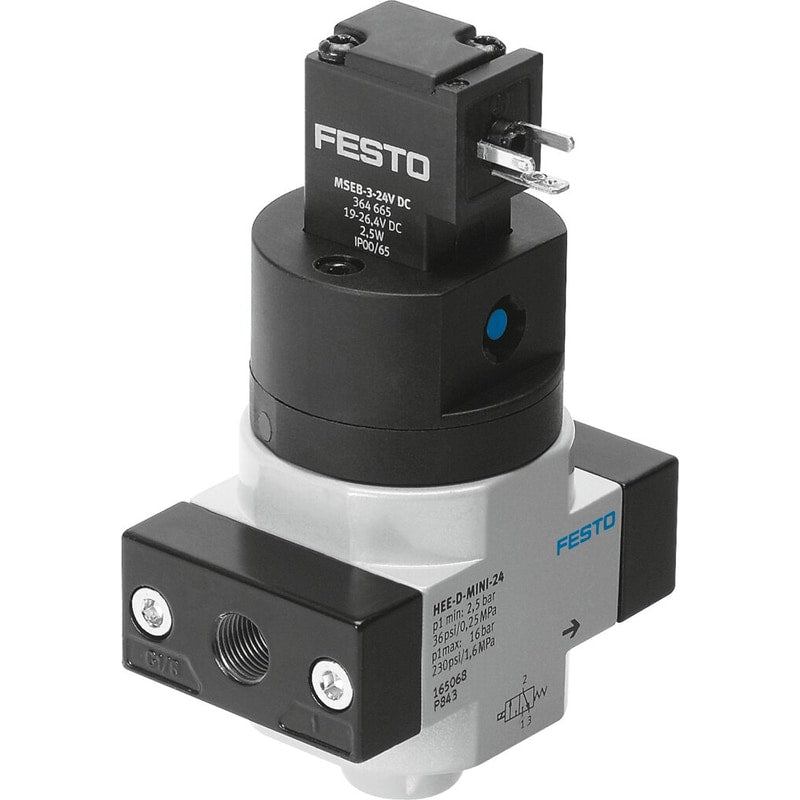

On/off valve
HEE-3/8-D-MINI-24-NPT
173904
GTIN 4052568315726
Vendor Festo
- Pneumatic connection 1
- 3/8 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 1600 l/min
- Operating pressure
- 2.5 bar - 16 bar
- Actuation type
- Electrical
Regular price
$240.26
Unit price
On/off valve HEE-3/8-D-MINI-24-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HEE-3/8-D-MINI-24-NPT
Regular price
$240.26
Unit price
On/off valve HEE-3/8-D-MINI-24-NPT is backordered and will ship as soon as it is back in stock.
| Width dimension | 40 mm |
|---|---|
| Type code | HEE |
| Design | Piston gate valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar ... 16 bar |
| C value | 7.3 l/sbar |
| b-value | 0.28 |
| Standard nominal flow rate | 1600 l/min |
| Duty cycle | 1 |
| Coil characteristics | 24 V DC: 3.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C ... 60 °C |
| Type of mounting | Line installationWith accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 223 g |
| Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT |
| Pneumatic connection 3 | G1/8 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Pilot air supply port | Internal |
| Electrical connection | as per DIN EN 175301-803PlugForm C |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
