Service unit
FRC-1-D-7-MAXI-NPT
173890
GTIN 4052568315580
Vendor Festo
Regular price
$710.04
Unit price
FRC-1-D-7-MAXI-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

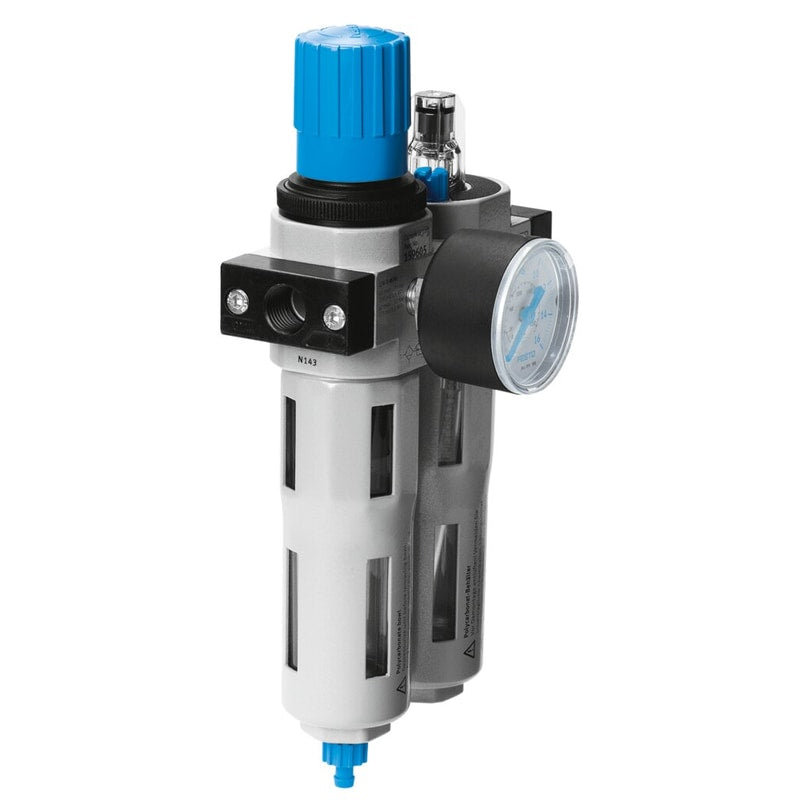

FRC-1-D-7-MAXI-NPT
Regular price
$710.04
Unit price
FRC-1-D-7-MAXI-NPT is backordered and will ship as soon as it is back in stock.
| Size | Maxi |
|---|---|
| Type code | FRC |
| Mounting position | Vertical |
| Condensate drain | Manually rotating |
| Grade of filtration | 40 µm |
| Symbol | 00991761 |
| Operating pressure | 1 bar ... 16 bar |
| Standard nominal flow rate | 8700 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 2520 g |
| Type of mounting | Line installationWith mounting bracketOptionally: |
| Pneumatic connection 1 | 1 NPT |
| Pneumatic connection 2 | 1 NPT |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
