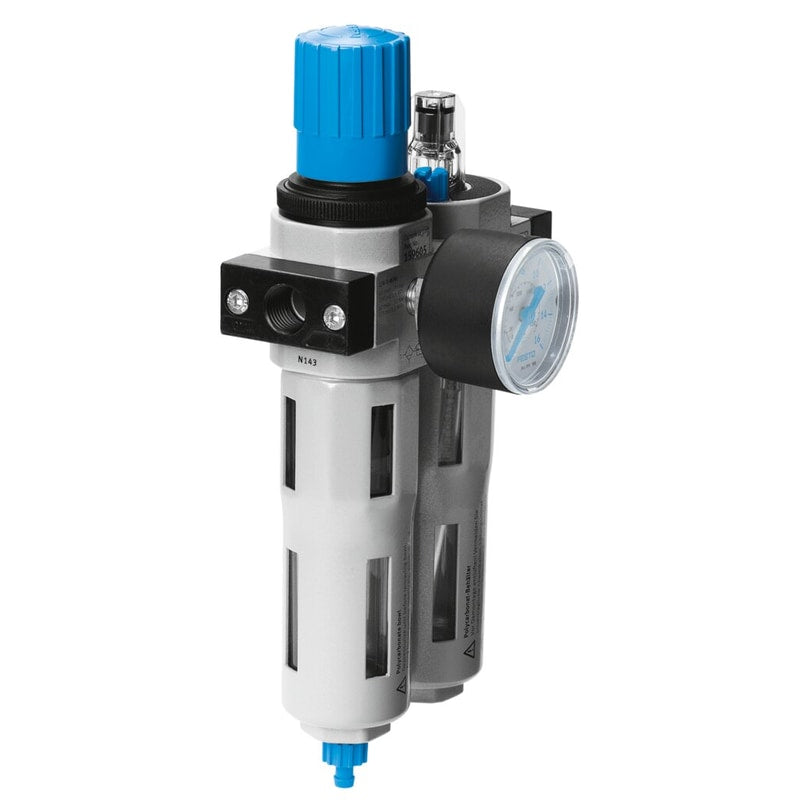

Service unit
FRC-1-D-MAXI-A-NPT
173885
GTIN 4052568315559
Vendor Festo
- Pneumatic connection 1
- 1 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 8500 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$981.27
Unit price
Service unit FRC-1-D-MAXI-A-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRC-1-D-MAXI-A-NPT
Regular price
$981.27
Unit price
Service unit FRC-1-D-MAXI-A-NPT is backordered and will ship as soon as it is back in stock.
| Size | Maxi |
|---|---|
| Type code | FRC |
| Mounting position | Vertical |
| Condensate drain | Fully automatic |
| Grade of filtration | 40 µm |

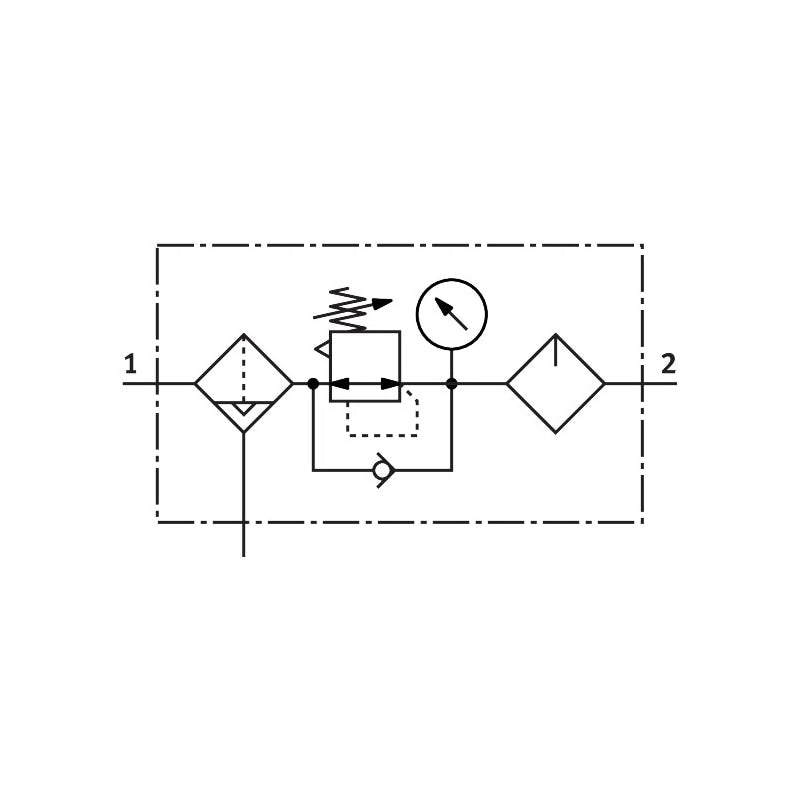

| Symbol | 991599 |
| Operating pressure | 2 bar ... 12 bar |
| Standard nominal flow rate | 8500 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:9:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:-] |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 2520 g |
| Type of mounting | With mounting bracketLine installationOptionally: |
| Pneumatic connection 1 | 1 NPT |
| Pneumatic connection 2 | 1 NPT |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
