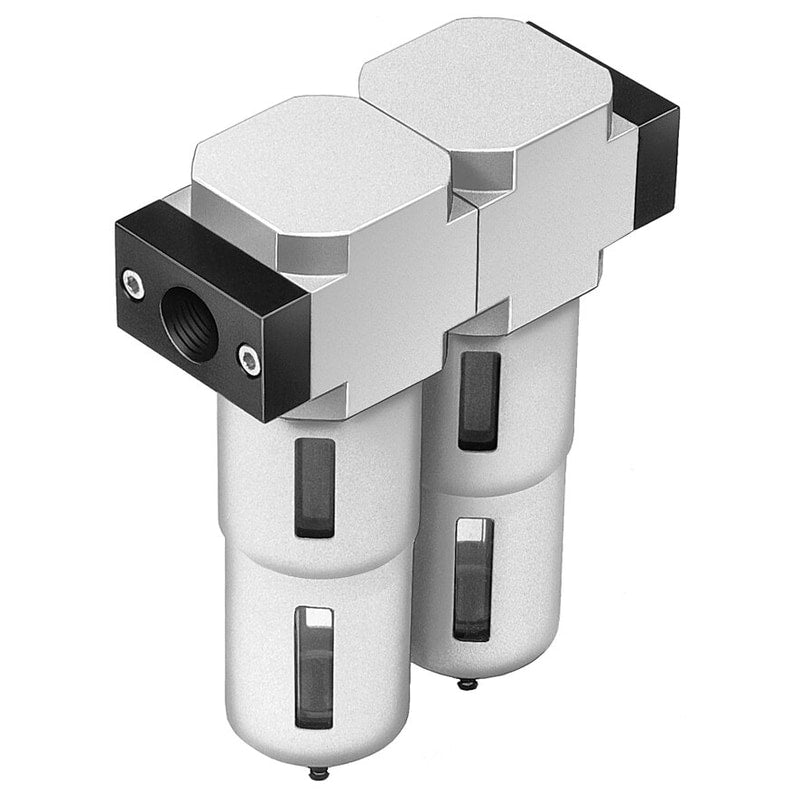

Fine filter combination
LFMBA-1/4-D-MINI-A-NPT
173743
GTIN 4052568314132
Vendor Festo
- Size
- Mini
- Grade of filtration
- 0.01 µm
- Operating pressure
- 1.5 bar - 12 bar
- Condensate drain
- Fully automatic
- Ambient temperature
- -10 °C - 60 °C
Regular price
$531.65
Unit price
LFMBA-1/4-D-MINI-A-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMBA-1/4-D-MINI-A-NPT
Regular price
$531.65
Unit price
LFMBA-1/4-D-MINI-A-NPT is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Type code | LFMBA |
| Series | D |
| Mounting position | Vertical |
| Grade of filtration | 0.01 µm |
| Filter efficiency | 0.999999 |
| Condensate drain | Fully automatic |
| Bowl guard | Metal bowl guard |
| Symbol | 991551 |
| Operating pressure | 1.5 bar ... 12 bar |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2]Inert gas |
| Temperature of medium | 1.5 °C ... 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Ambient temperature | -10 °C ... 60 °C |
| Type of mounting | Line installationWith accessories |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Compressed air filter material | Borosilicate fiber |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
