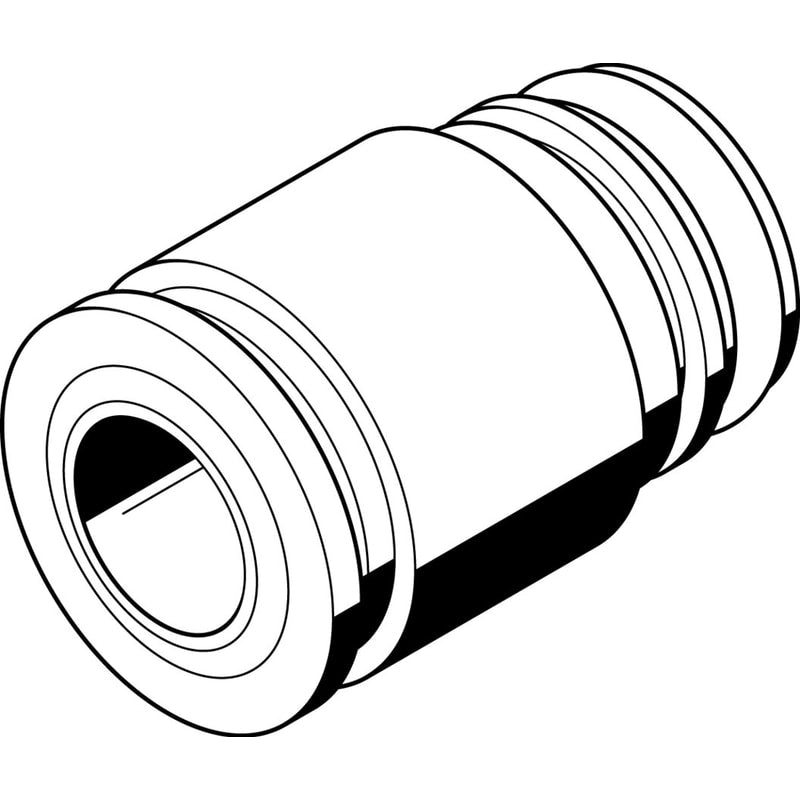

Cartridge
QSP14-5/16-U
172986
GTIN 4052568313067
Vendor Festo
- Pneumatic connection 1
- Cartridge 14 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -5 °C - 60 °C
Regular price
$4.50
Unit price
QSP14-5/16-U Cartridge is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSP14-5/16-U
Regular price
$4.50
Unit price
QSP14-5/16-U Cartridge is backordered and will ship as soon as it is back in stock.
cartridge QSP14-5/16-U With push-in connector, straight Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | n/a |
|---|---|
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-5 ... 60 °C |
| Maritime classification | see certificate |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
