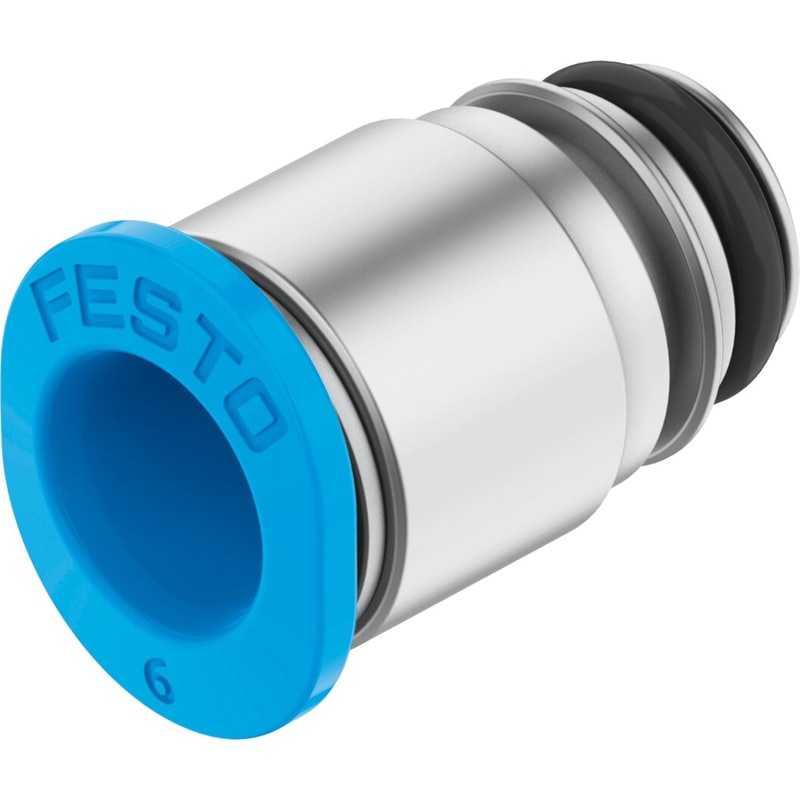

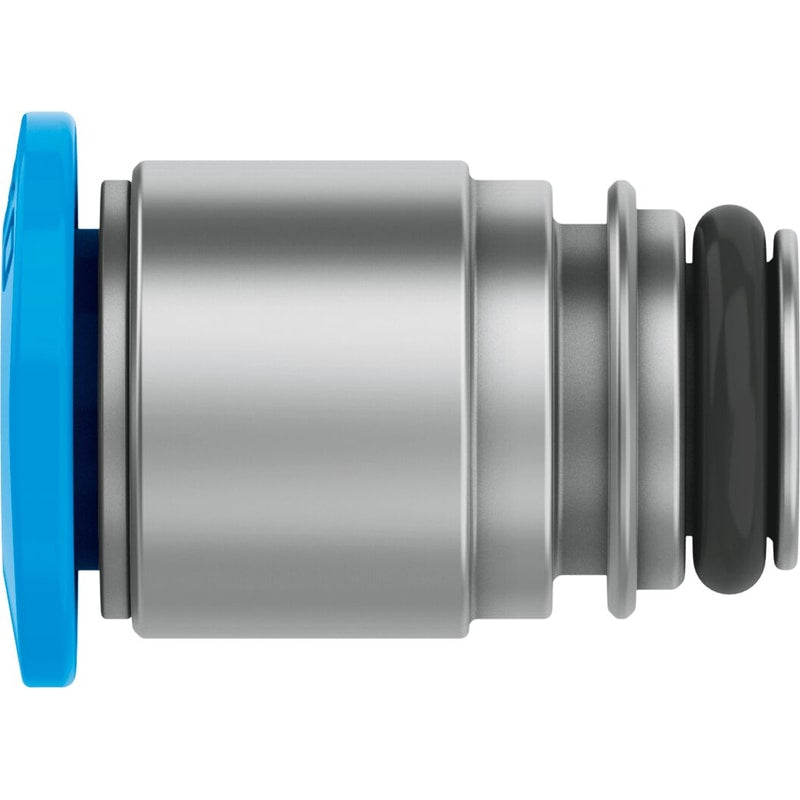

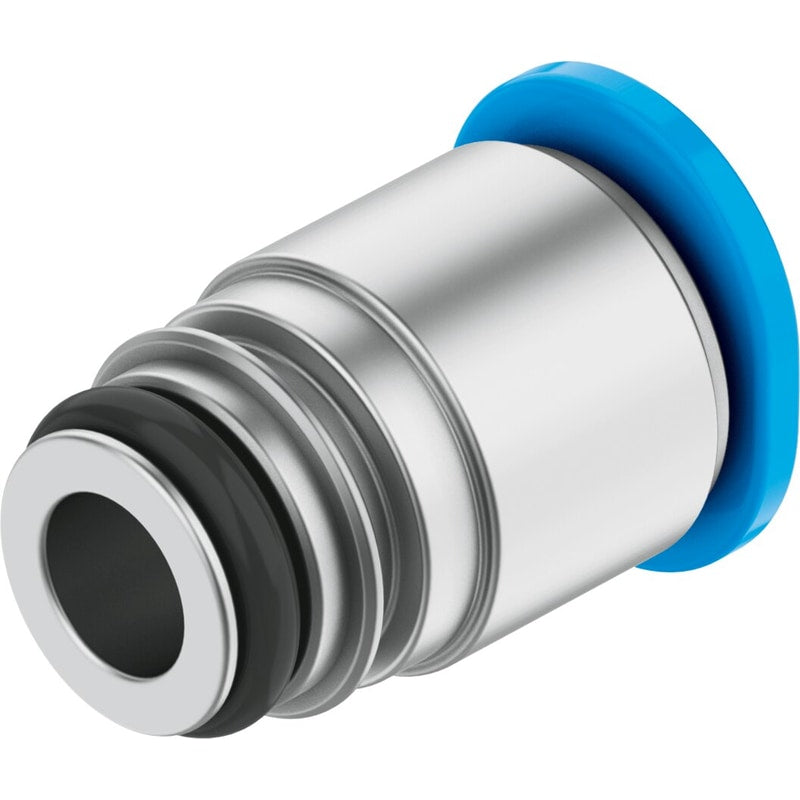

Cartridge
QSP10-6
172973
GTIN 4052568037369
Vendor Festo
- Pneumatic connection 1
- Cartridge 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Ambient temperature
- 0 °C - 60 °C
Regular price
$3.86
Unit price
QSP10-6 Cartridge is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSP10-6
Regular price
$3.86
Unit price
QSP10-6 Cartridge is backordered and will ship as soon as it is back in stock.
cartridge QSP10-6 With push-in connector, straight Type of seal on screw-in stud=O-ring, Assembly position=Any, Container size=10, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 10 bar
| Fitting Type | n/a |
|---|---|
| Type of seal on screw-in stud | O-ring |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 0 ... 60 °C |
| Maritime classification | see certificate |
| connection 1 | Cartridge 10 mm |
| connection 2 | For tubing outside diameter 6 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
