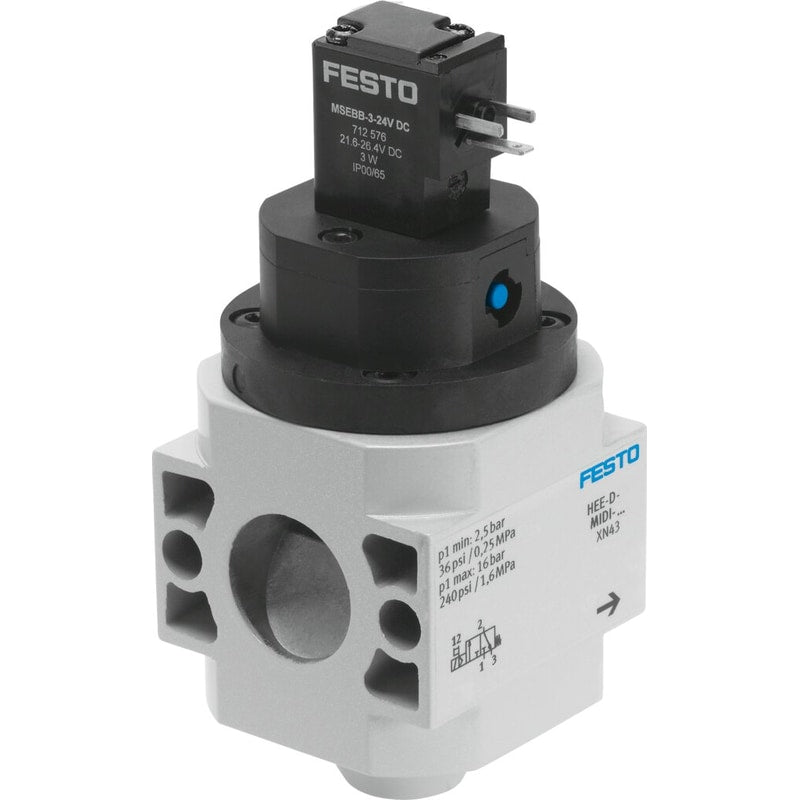

On/off valve
HEE-D-MIDI-230
172961
GTIN 4052568140809
Vendor Festo
- Operating pressure
- 2.5 bar - 16 bar
- Actuation type
- Electrical
Regular price
$286.94
Unit price
On/off valve HEE-D-MIDI-230 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HEE-D-MIDI-230
Regular price
$286.94
Unit price
On/off valve HEE-D-MIDI-230 is backordered and will ship as soon as it is back in stock.
| Type code | HEE |
|---|---|
| Design | Piston gate valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar ... 16 bar |
| Duty cycle | 1 |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA |
| Permissible voltage fluctuations | -1.4 |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Type of mounting | With accessoriesLine installation |
| Mounting position | Any |
| Product weight | 500 g |
| Pneumatic connection 3 | G1/4 |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Electrical connection | as per DIN EN 175301-803PlugForm C |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
