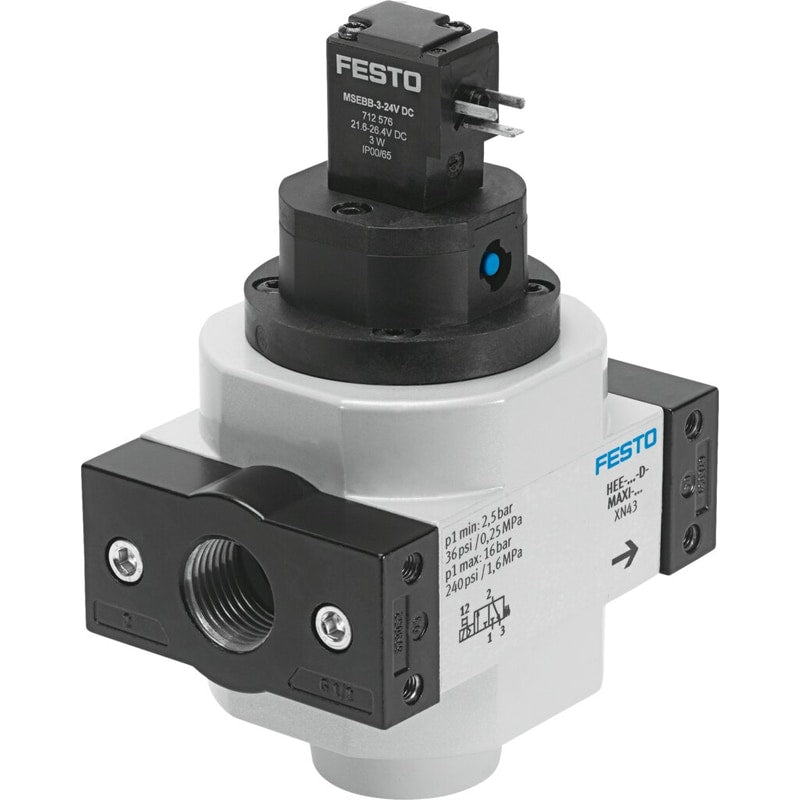

On/off valve
HEE-3/4-D-MAXI-24
172950
GTIN 4052568013615
Vendor Festo
- Pneumatic connection 1
- G3/4
- Normal nominal flow rate (normalized to DIN 1343)
- 6000 l/min
- Operating pressure
- 2.5 bar - 16 bar
- Actuation type
- Electrical
Regular price
$353.88
Unit price
On/off valve HEE-3/4-D-MAXI-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HEE-3/4-D-MAXI-24
Regular price
$353.88
Unit price
On/off valve HEE-3/4-D-MAXI-24 is backordered and will ship as soon as it is back in stock.
| Maritime classification | See certificate |
|---|---|
| Type code | HEE |
| Design | Piston gate valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar ... 16 bar |
| C value | 28 l/sbar |
| b-value | 0.32 |
| Standard nominal flow rate | 6000 l/min |
| Duty cycle | 1 |
| Coil characteristics | 24 V DC: 3.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C ... 60 °C |
| Type of mounting | With accessoriesLine installation |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 800 g |
| Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 |
| Pneumatic connection 3 | G3/8 |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Electrical connection | as per DIN EN 175301-803Form CPlug |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
