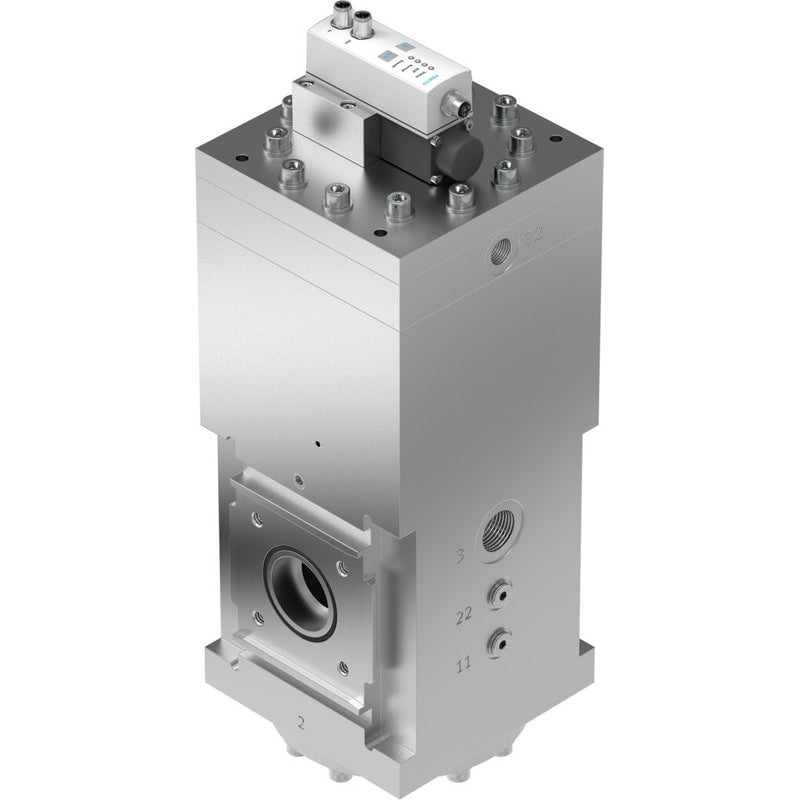

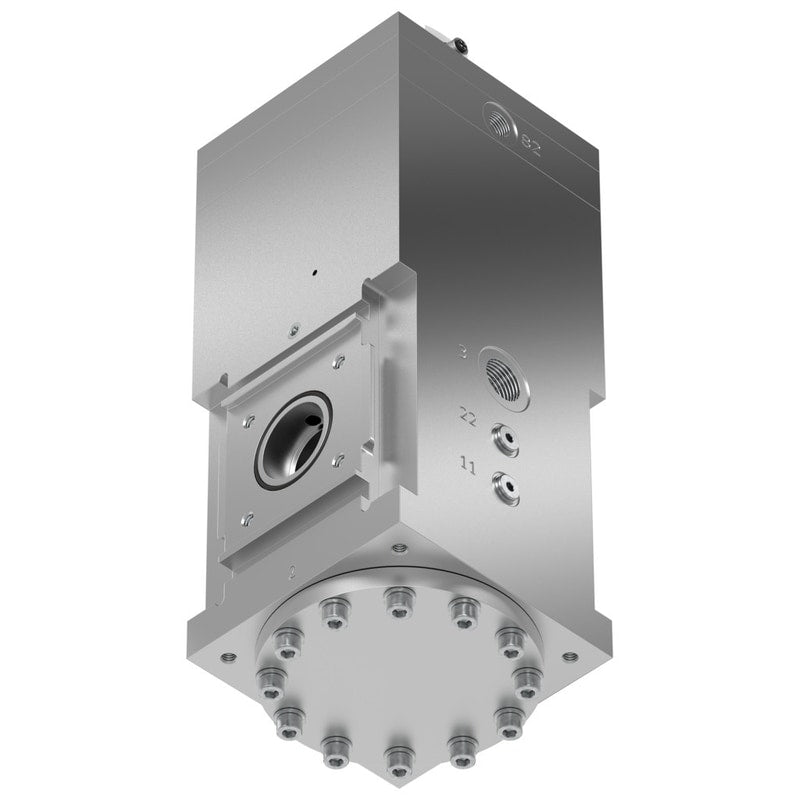

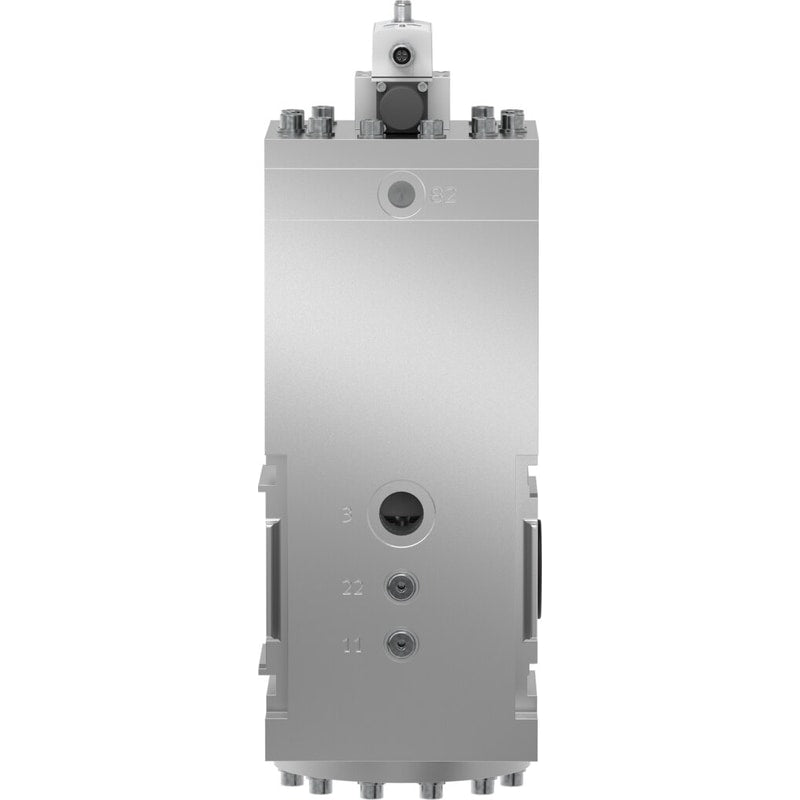

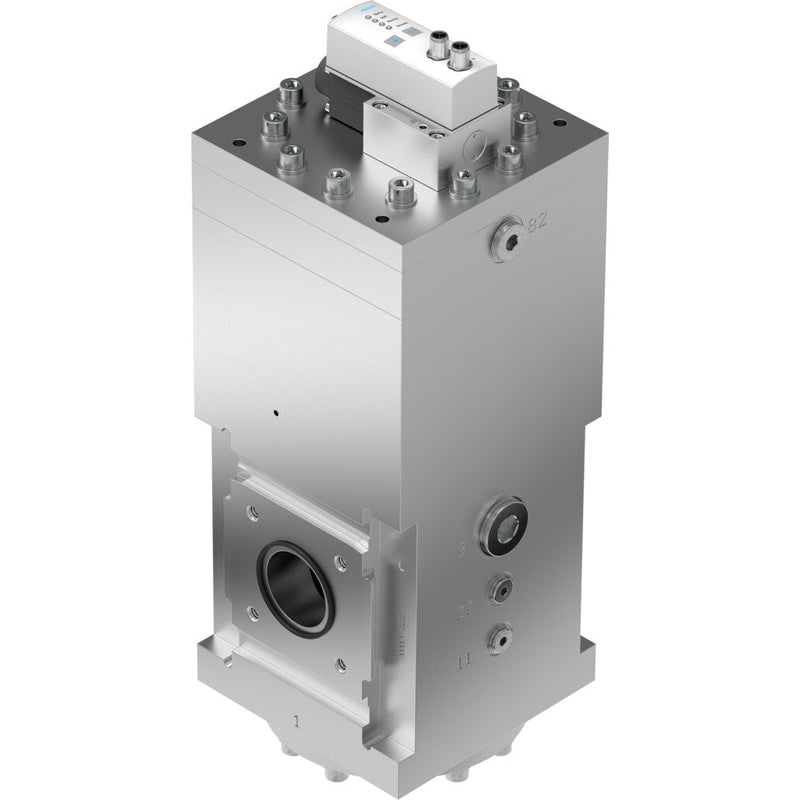

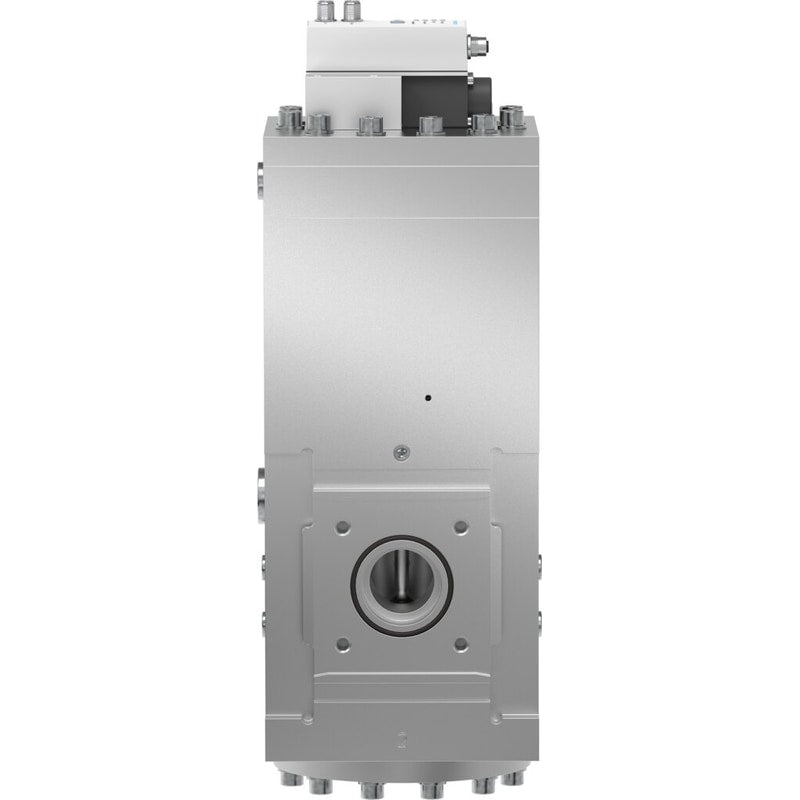

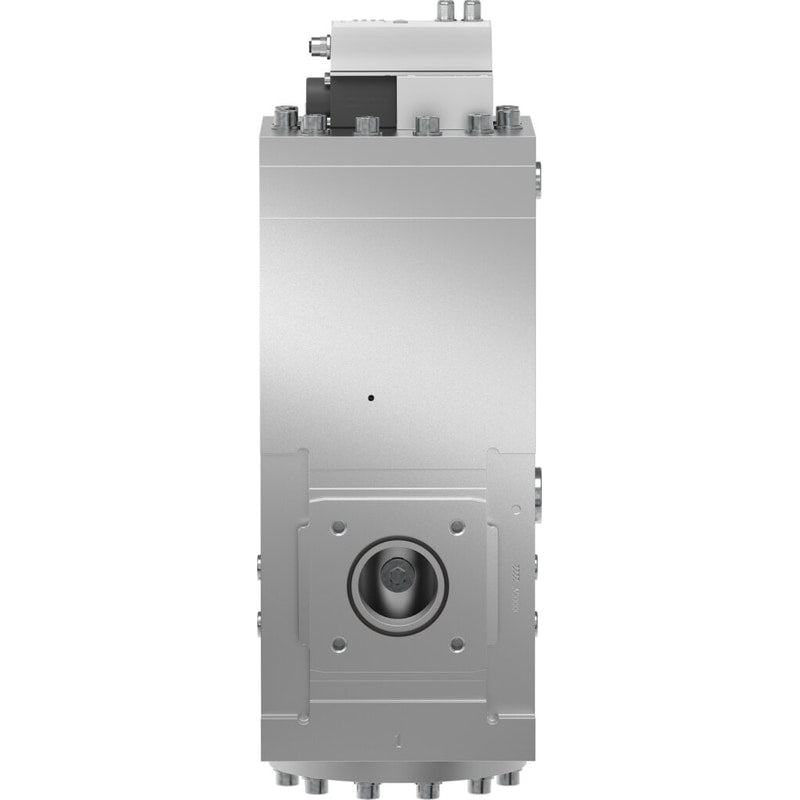

Electric pressure regulator
PREL-186-HP3-V1-A-40CFX-1
1709211
GTIN 4052568264024
Vendor Festo
- Pneumatic connection 1
- G1
- Operating pressure
- 0 bar - 50 bar
- Pressure regulation range
- 0.4 bar - 40 bar
- Max. pressure hysteresis
- 0.806 bar
Regular price
$15,130.82
Unit price
Electric pressure regulator PREL-186-HP3-V1-A-40CFX-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PREL-186-HP3-V1-A-40CFX-1
Regular price
$15,130.82
Unit price
Electric pressure regulator PREL-186-HP3-V1-A-40CFX-1 is backordered and will ship as soon as it is back in stock.
| Size | 186 |
|---|---|
| Nominal width DN | 45 |
| Type code | PREL |
| Series | L |
| Mounting position | Vertical |
| Actuation type | Electrical |
| Design | Electrically adjustable pressure regulator |
| Controller function | With secondary exhaustingOutlet pressure constantWith primary pressure compensation |

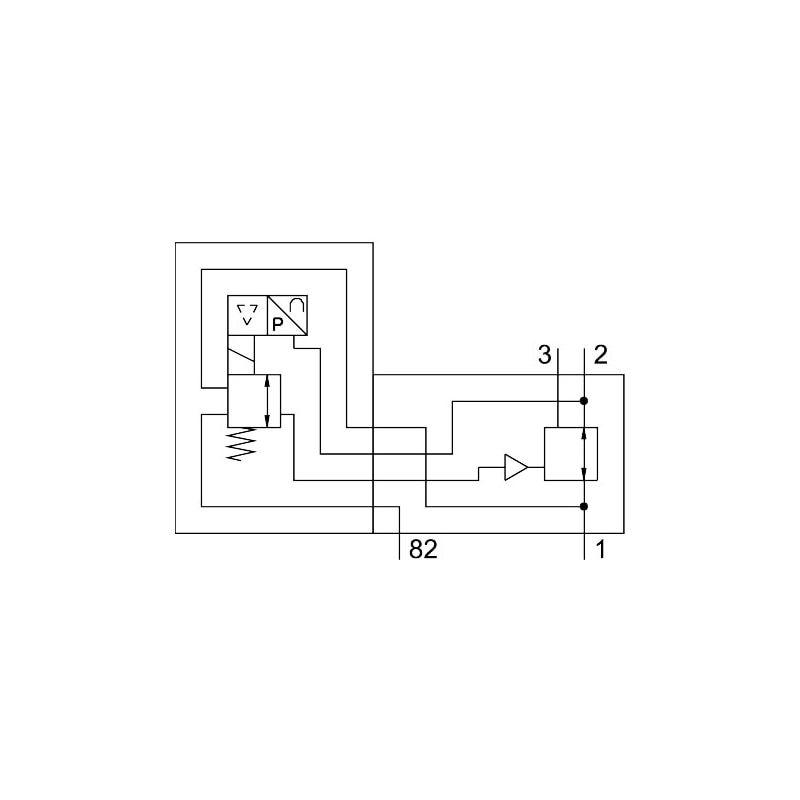

| Symbol | 995417 |
| Operating pressure | 0 bar ... 50 bar |
| Pressure regulation range | 0.4 bar ... 40 bar |
| Max. pressure hysteresis | 0.1 bar |
| Nominal operating voltage DC | 24 V |
| Analog output signal range | 4 - 20 mA |
| Analog input signal range | 0 - 10 V |
| Setpoint/actual values | Voltage type 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | 5 °C ... 50 °C |
| Ambient temperature | 5 °C ... 50 °C |
| Electrical connection IN | Plug, M12, 5-pin, A-coded |
| Electrical connection OUT | Plug, M12, 5-pin, A-coded |
| Type of mounting | With accessoriesOn service unitOptionally: |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 11 | G1/4 |
| Pneumatic connection 2 | G1 |
| Pneumatic connection 22 | G¼ |
| Pneumatic connection 3 | G1 |
| Pneumatic connection 82 | G1/2 |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Lower cover material | AluminumAnodized |
| Material of spring | Spring steel |
| Housing material | AnodizedAluminum |
