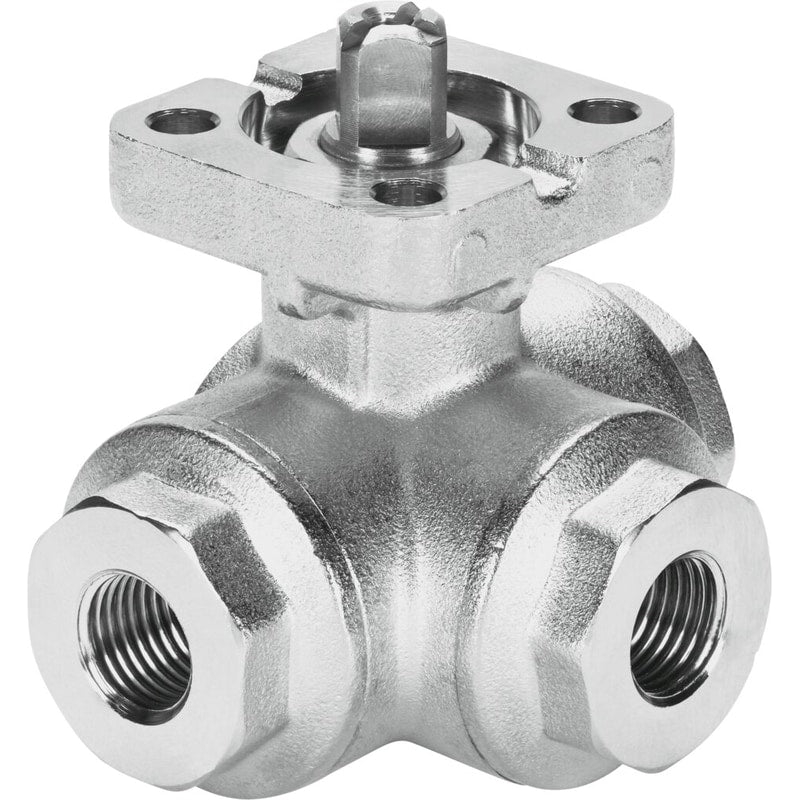

Ball valve
VZBA-1/2"-GGG-63-32T-F0304-V4V4T
1692224
GTIN 4052568245214
Vendor Festo
- Structural design
- 3-way ball valve - Drilled T hole
- Fitting connection
- Rp1/2
- Actuation type
- Mechanical
Regular price
$273.88
Unit price
VZBA-1/2"-GGG-63-32T-F0304-V4V4T is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBA-1/2"-GGG-63-32T-F0304-V4V4T
Regular price
$273.88
Unit price
VZBA-1/2"-GGG-63-32T-F0304-V4V4T is backordered and will ship as soon as it is back in stock.
VZBC: the automatable, compact, flanged, 2-way ball valve for control of media.
| Type code | VZBC |
|---|---|
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Ring housing with threaded flange |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F04F05 |
| Inside diameter | 25 mm |
| Nominal width DN | 25 |
| Valve function | 2/2 |
| Manual override | None |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 40 |
| Actuating torque | 17 Nm |
| Based on norm | ISO 5211EN 1092-1 |
| Symbol | 00991458 |
| Medium | Neutral liquidsCompressed air as per ISO 8573-1:2010 [-:-:-]Water – no water vaporInert gasOther flow media on request |
| Temperature of medium | -10 °C ... 200 °C |
| Flow rate Kv | 71.5 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFE-reinforcedPTFE |
| Ball material | High-alloy stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 2600 g |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX)Zone 1 (ATEX) |
