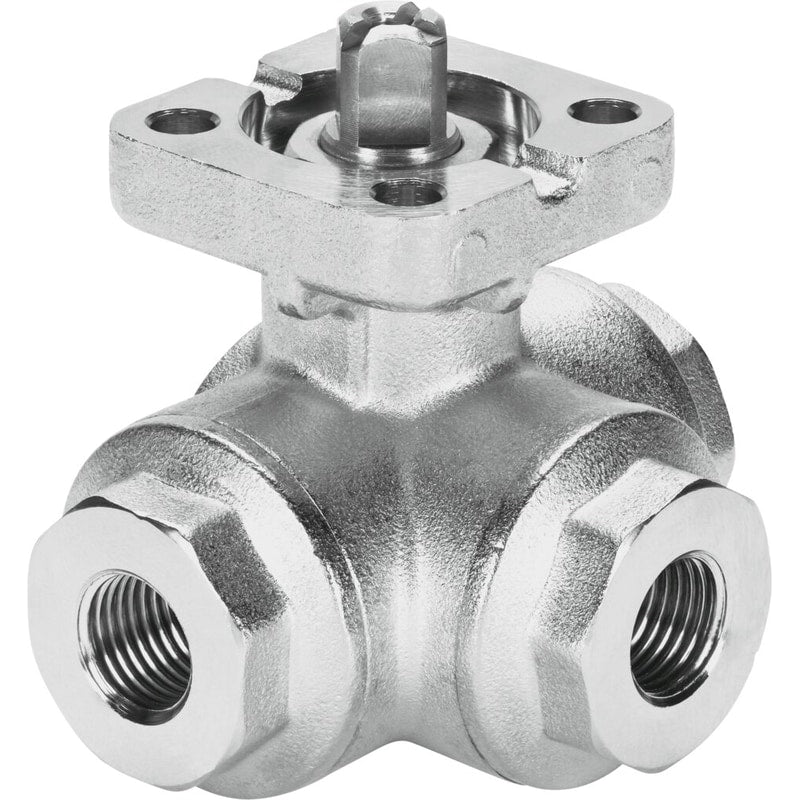

Ball valve
VZBA-11/4"-GGG-63-32L-F0405-V4V4T
1692217
GTIN 4052568245160
Vendor Festo
- Structural design
- 3-way ball valve - Drilled L hole
- Fitting connection
- Rp1 1/4
- Actuation type
- Mechanical
Regular price
$572.39
Unit price
VZBA-11/4"-GGG-63-32L-F0405-V4V4T is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBA-11/4"-GGG-63-32L-F0405-V4V4T
Regular price
$572.39
Unit price
VZBA-11/4"-GGG-63-32L-F0405-V4V4T is backordered and will ship as soon as it is back in stock.
For trouble-free control of aggressive media or gases in piping systems: the automatable 3-way ball valve VZBA in stainless steel.
| Type code | VZBA |
|---|---|
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Weld-on ends/weld-on ends |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F10F07 |
| Inside diameter | 65 mm |
| Nominal width DN | 65 |
| Valve function | 2/2 |
| Manual override | None |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 63 |
| Actuating torque | 78 Nm |
| Based on norm | ISO 5211DIN 3202-S13 |
| Symbol | 00991458 |
| Medium | Inert gasOther flow media on requestNeutral liquidsCompressed air as per ISO 8573-1:2010 [-:-:-]Water – no water vapor |
| Temperature of medium | -10 °C ... 200 °C |
| Flow rate Kv | 507 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFEPTFE-reinforced |
| Ball material | High-alloy stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 9200 g |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
