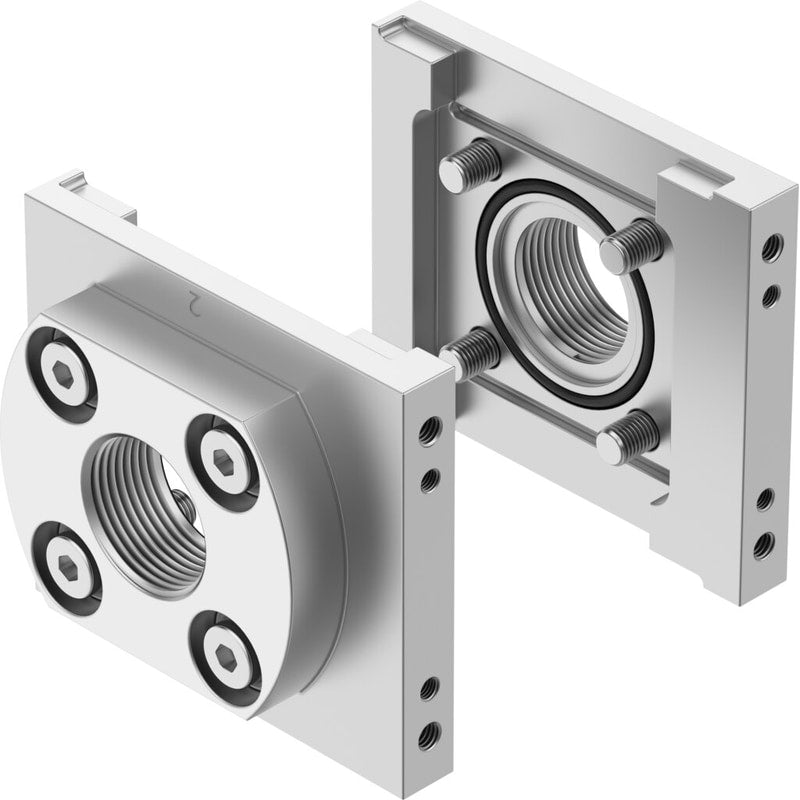

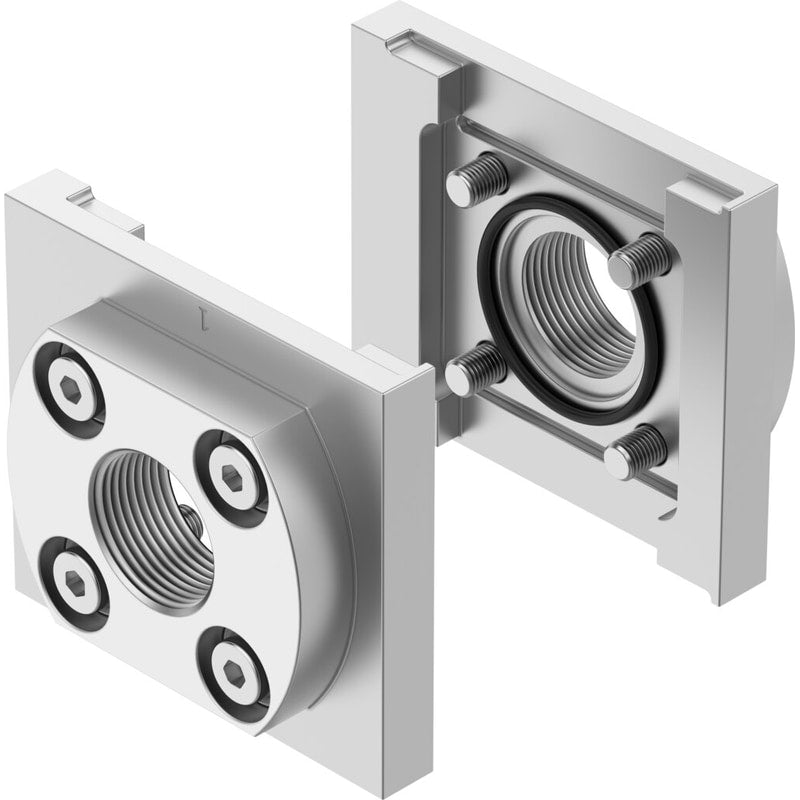

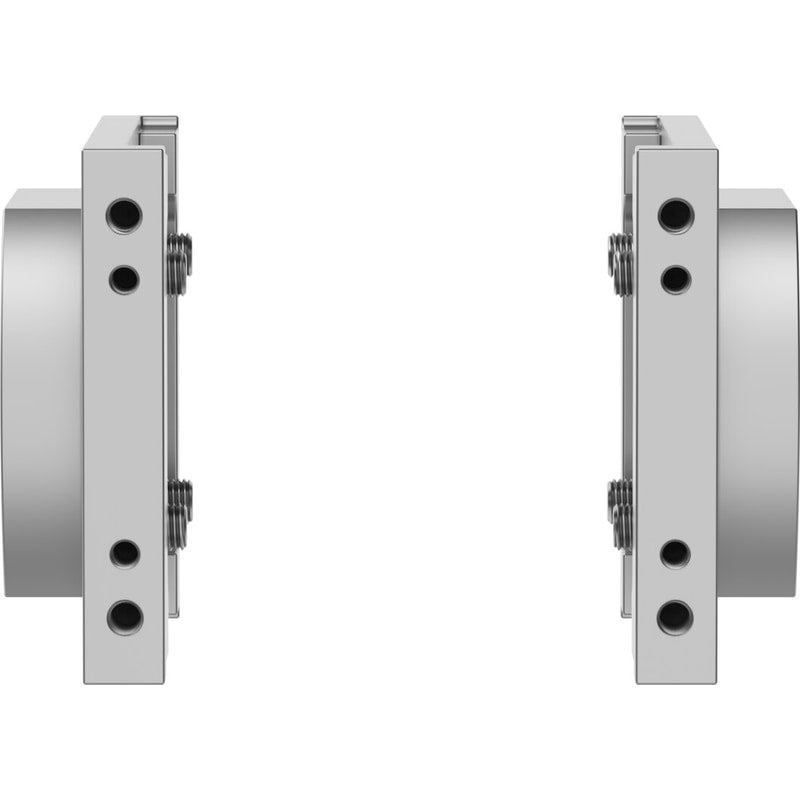

Sub-base
PAML-CP-90-HP3-G1
1651543
GTIN 4052568263904
Vendor Festo
Regular price
$964.83
Unit price
Sub-base PAML-CP-90-HP3-G1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAML-CP-90-HP3-G1
Regular price
$964.83
Unit price
Sub-base PAML-CP-90-HP3-G1 is backordered and will ship as soon as it is back in stock.
| Size | 90 |
|---|---|
| Nominal width DN | 36 |
| Type code | PAML |
| Series | L |
| Operating pressure | 0 bar ... 50 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | 5 °C ... 60 °C |
| Ambient temperature | 5 °C ... 60 °C |
| Product weight | 730 g |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy |
| Seals material | NBR |
| Material of screws | Stainless steel |
