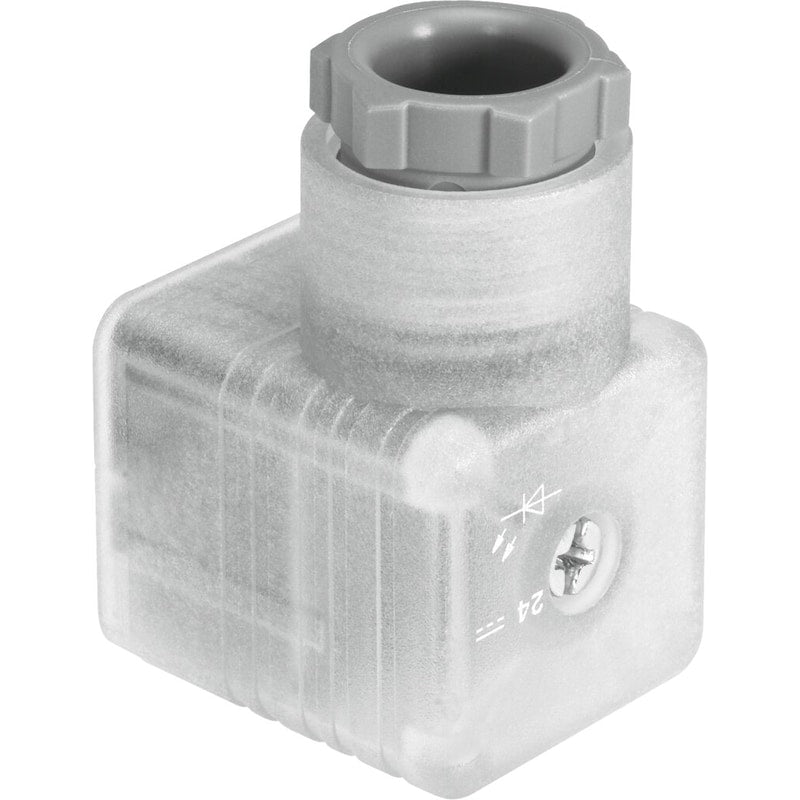

Angled plug socket
PEV-1/4-WD-LED-24
164274
GTIN 4052568036881
Vendor Festo
- DC operating voltage range
- 15 V - 30 V
- Degree of protection
- IP65
Regular price
$36.10
Unit price
PEV-1/4-WD-LED-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PEV-1/4-WD-LED-24
Regular price
$36.10
Unit price
PEV-1/4-WD-LED-24 is backordered and will ship as soon as it is back in stock.
| Conforms to standard | EN 175301-803 |
|---|---|
| Certification | RCM compliance mark |
| Switching status indication | LED yellow |
| Type of mounting | Screwed tightly |
| Cable outlet | Angled |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Central screw M3 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection technology | Screw terminal |
| DC operating voltage range | 15V |
| Current rating at 40° C | 8A |
| Current rating | 8A |
| Cable fitting | Pg11 |
| Approved cable diameter | 4.5mm |
| Connection cross section | 0.25mm² |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40°C |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Housing material | PA6-reinforced |
| Housing colour | Transparent |
| Material of pin contacts | Brass |
