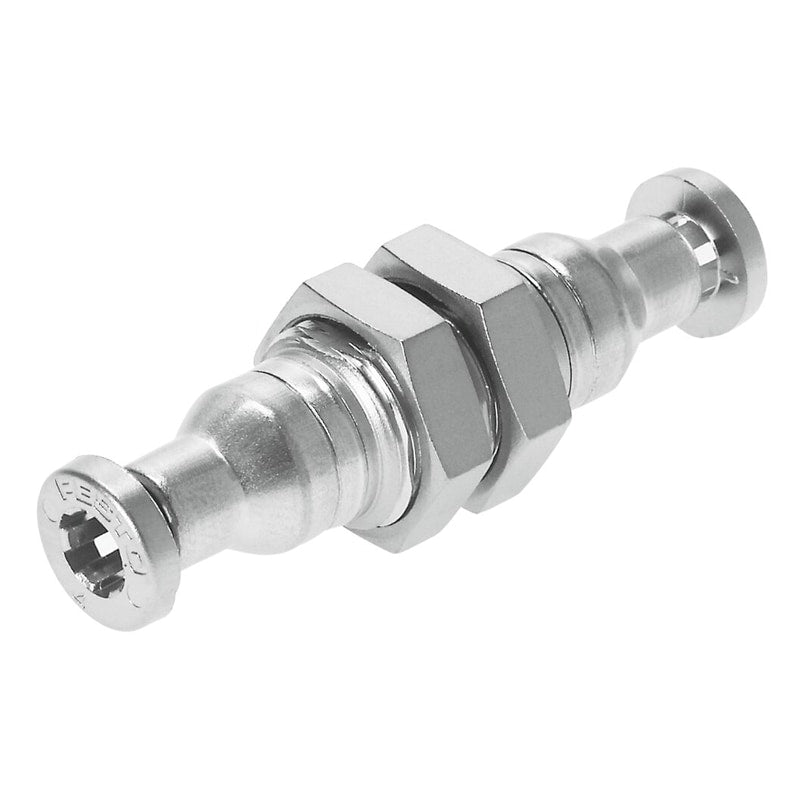

Push-in bulkhead connector
CRQSS-16
164219
GTIN 4052568136970
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -15 °C - 120 °C
- Nominal width
- 10.4 mm
Regular price
$359.90
Unit price
CRQSS-16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRQSS-16
Regular price
$359.90
Unit price
CRQSS-16 is backordered and will ship as soon as it is back in stock.
push-in bulkhead connector CRQSS-16 Size=Standard, Nominal size=10,4 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Bulkhead Union |
|---|---|
| Size | Standard |
| Nominal size | 10.4 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-15 ... 120 °C |
| Maritime classification | see certificate |
| Product weight | 118 g |
| Usable wires | PFAN |
| connection 1 | 16mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 16 mm |
| Materials note | Conforms to RoHS |
| Material housing | High alloy steel, non-corrosive |
| Material release ring | High alloy steel, non-corrosive |
