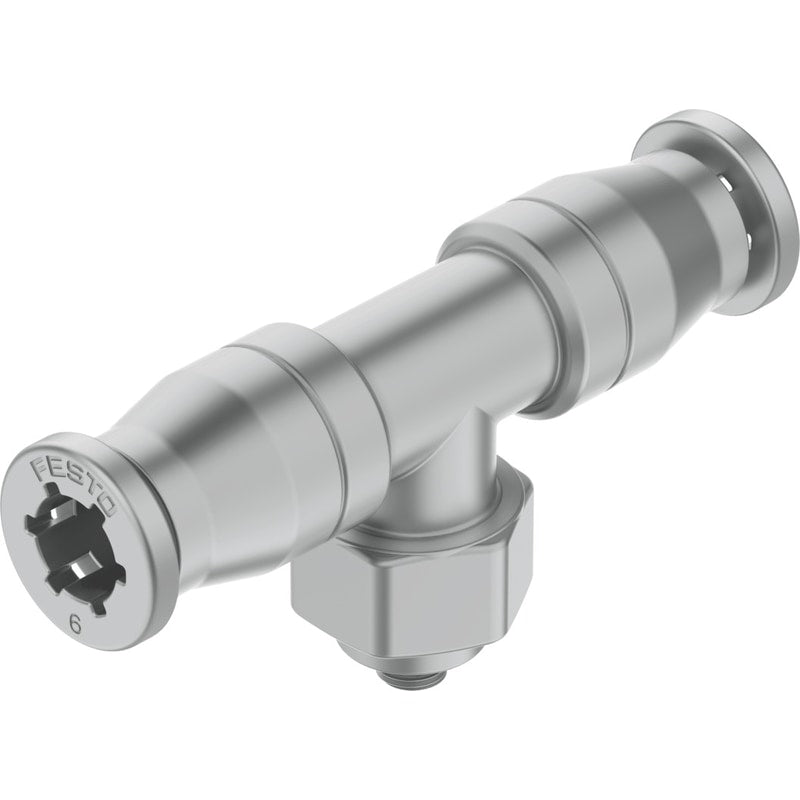

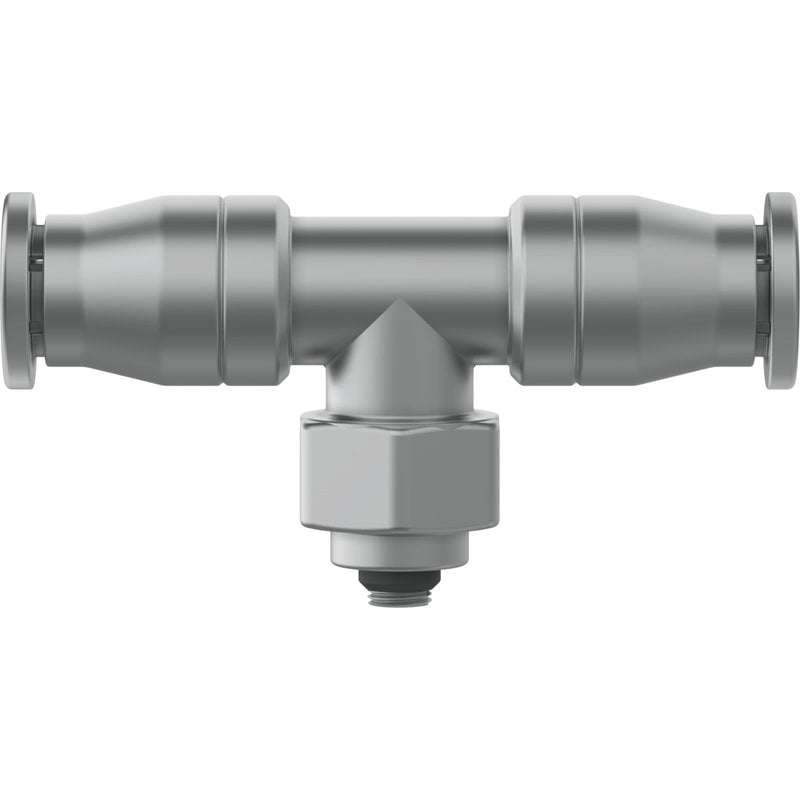

Push-in T-fitting
CRQST-M5-6
164201
GTIN 4052568073213
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -15 °C - 120 °C
- Nominal width
- 2 mm
Regular price
$110.46
Unit price
CRQST-M5-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRQST-M5-6
Regular price
$110.46
Unit price
CRQST-M5-6 is backordered and will ship as soon as it is back in stock.
push-in T-fitting CRQST-M5-6 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=2 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Male Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 2 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-15 ... 120 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 1.33 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 24 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| Usable wires | PFAN |
