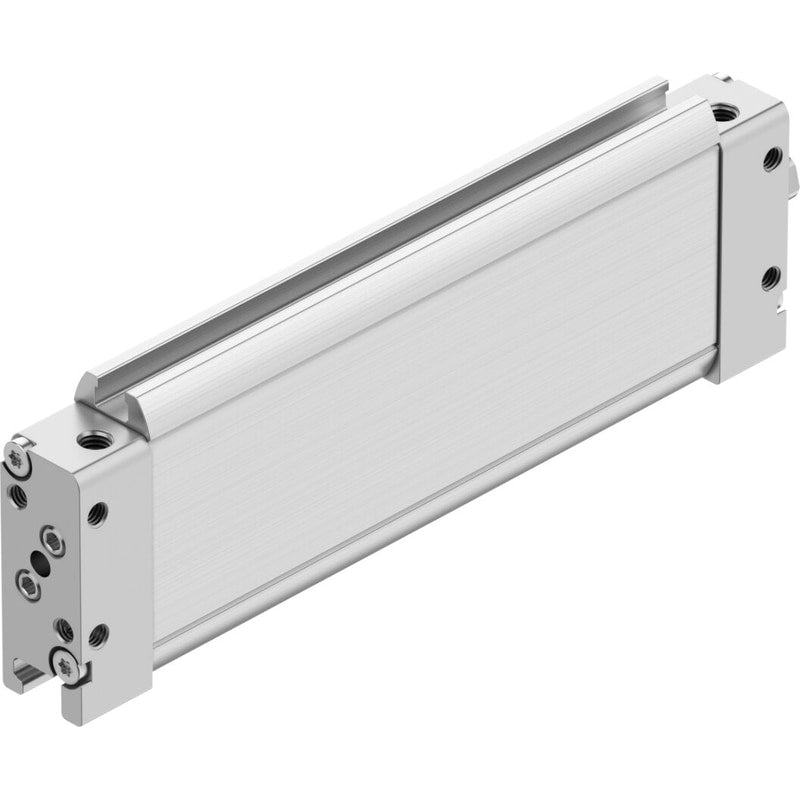

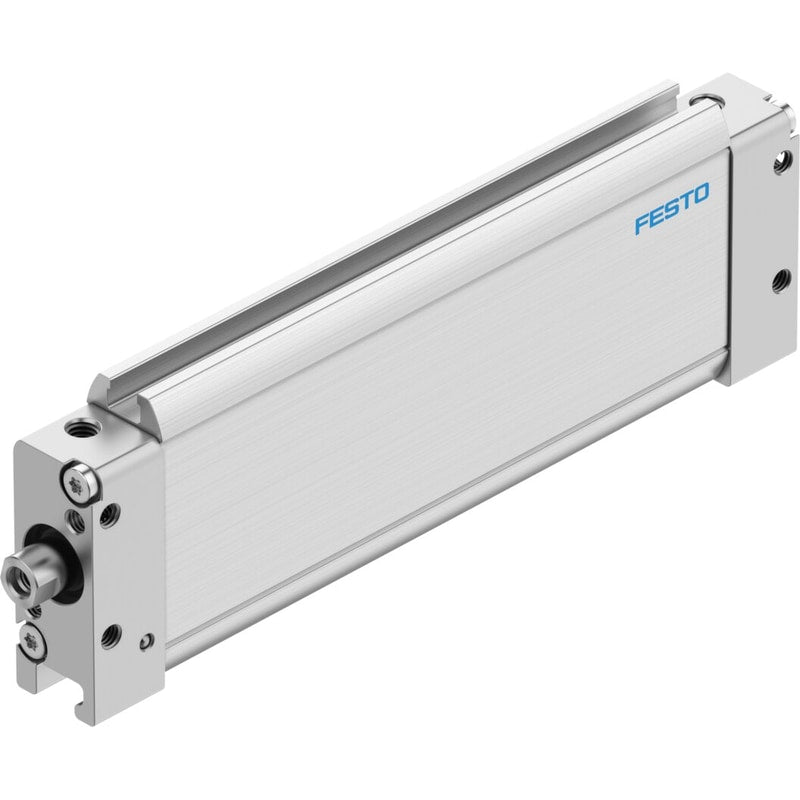

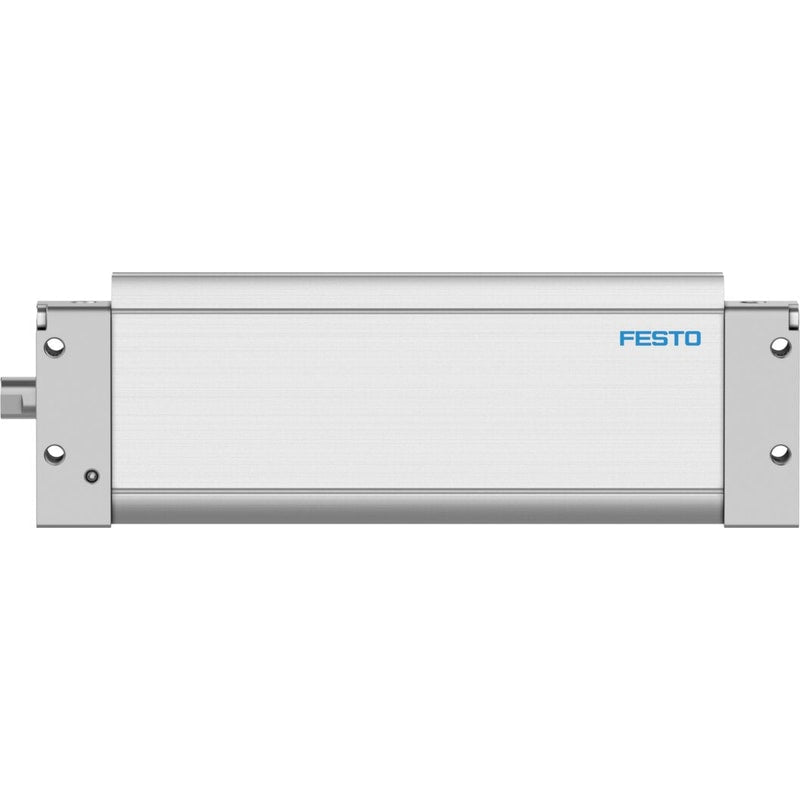

Flat cylinder
DZF-18-80-P-A
164019
GTIN 4052568136321
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 18 mm - Equivalent diameter
- Theoretical force at 6 bar, advancing
- 153 N
- Stroke
- 80 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$273.78
Unit price
DZF-18-80-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DZF-18-80-P-A
Regular price
$273.78
Unit price
DZF-18-80-P-A is backordered and will ship as soon as it is back in stock.
flat cylinder DZF-18-80-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke=80 mm, Piston diameter=(* 18 mm, * Equivalent diameter), Max. angular deflection of piston rod +/-=1,2 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 80 mm |
|---|---|
| Piston diameter | 18 mmEquivalent diameter |
| Max. angular deflection of piston rod +/- | 1.2 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Protection against torque/guide | Oval piston |
| Operating pressure | 1 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
