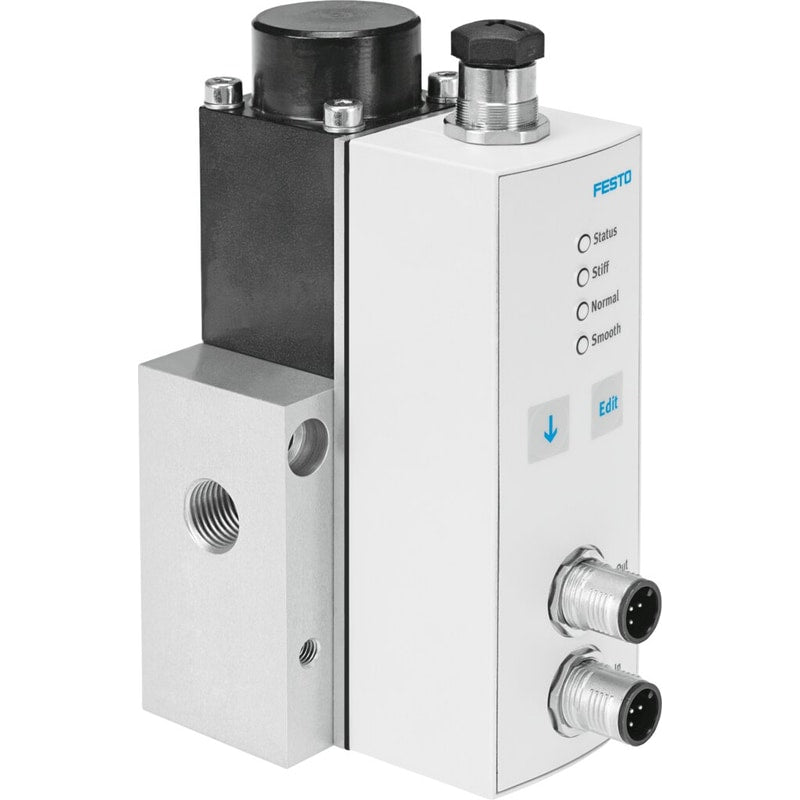

Proportional pressure control valve
VPPL-3L-3-G14-0L20H-A4-A-S1-6
1635992
GTIN 4052568263867
Vendor Festo
- Valve function

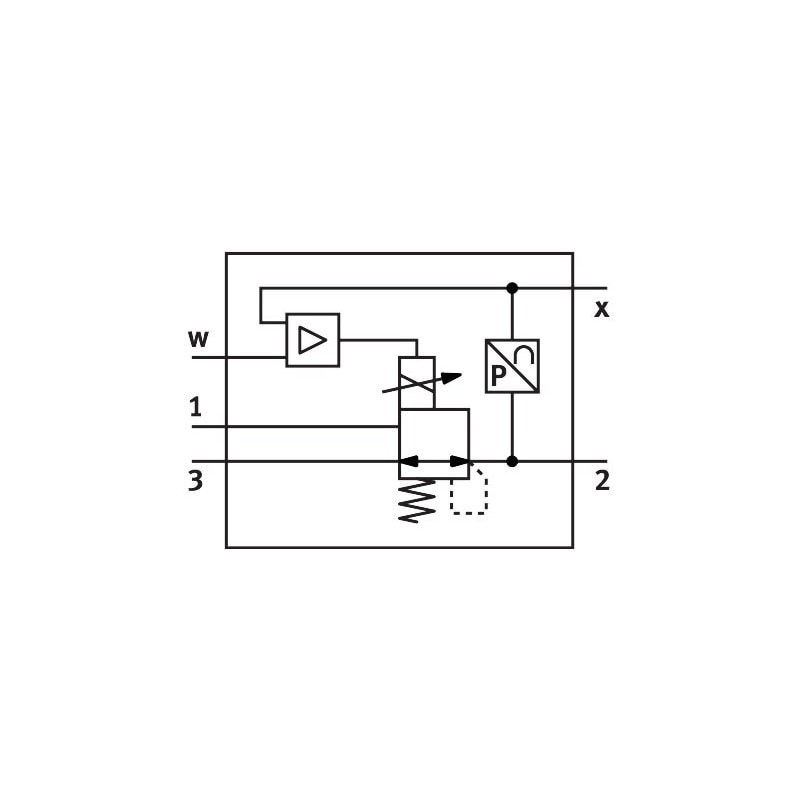

- 3-way proportional pressure control valve closed
- Pneumatic connection 1
- G1/4
- Pressure regulation range
- 0.2 bar - 20 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 245 l/min
Regular price
$2,729.96
Unit price
VPPL-3L-3-G14-0L20H-A4-A-S1-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPL-3L-3-G14-0L20H-A4-A-S1-6
Regular price
$2,729.96
Unit price
VPPL-3L-3-G14-0L20H-A4-A-S1-6 is backordered and will ship as soon as it is back in stock.
| Type code | KMPYE |
|---|---|
| Conforms to standard | EN 61076-2-101 |
| Additional functions | Product-specific pin allocation |
| Cable designation | With accessories |
| Contact durability | 500 |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock with AF 18 and longitudinal knurl |
| Electrical connection for input 1, connection pattern | 00995385 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M9x0.5 |
| Electrical connection 2, number of pins/wires | 7 |
| Electrical connection 2, occupied pins/wires | 6 |
| Electrical connection 2, type of mounting | Screw-type lock |
| Electrical connection 2, connection pattern | 00995748 |
| DC operating voltage range | 0 V ... 50 V |
| Current rating at 40°C | 1 A |
| Surge resistance | 2 kV |
| Cable length | 0.3 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, flexible cable installation | ≥ 75 mm |
| Cable diameter | 5.6 mm |
| Cable design | Shielded8 x 0.24 mm² |
| Nominal conductor cross section | 0.24 mm² |
