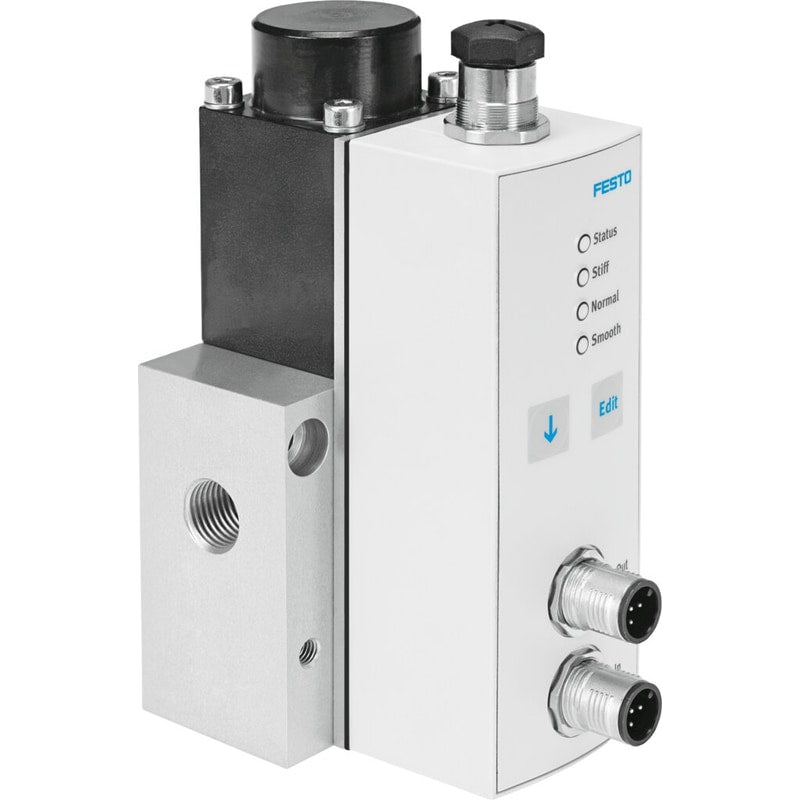

Proportional pressure control valve
VPPL-3L-3-G14-0L40H-V1-V-S1-7
1635980
GTIN 4052568263751
Vendor Festo
- Valve function

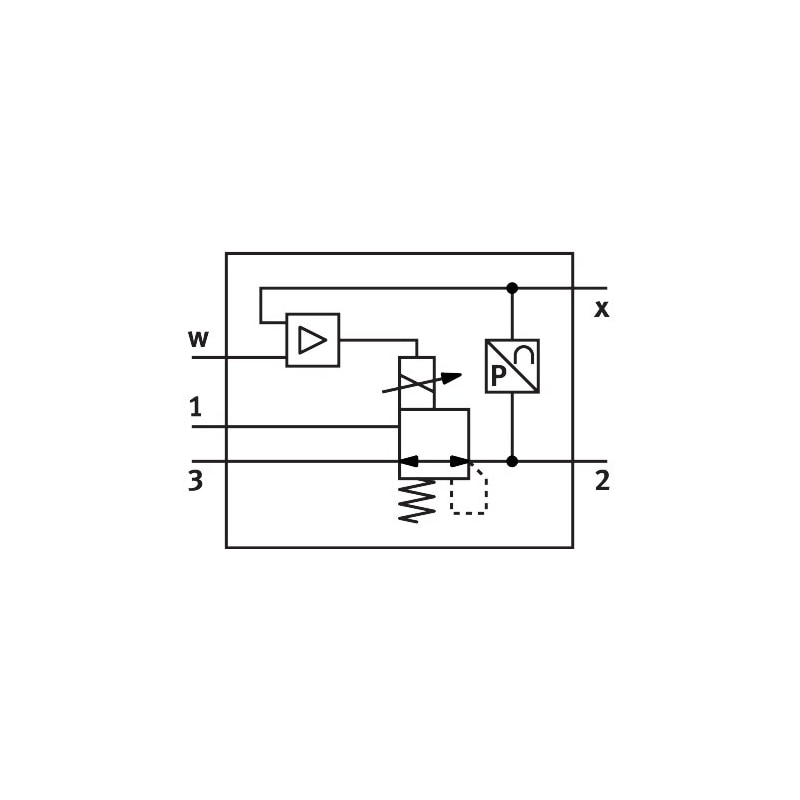

- 3-way proportional pressure control valve closed
- Pneumatic connection 1
- G1/4
- Pressure regulation range
- 0.4 bar - 40 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 245 l/min
Regular price
$2,729.96
Unit price
VPPL-3L-3-G14-0L40H-V1-V-S1-7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPL-3L-3-G14-0L40H-V1-V-S1-7
Regular price
$2,729.96
Unit price
VPPL-3L-3-G14-0L40H-V1-V-S1-7 is backordered and will ship as soon as it is back in stock.
Fast, durable, and cost-effective: the highly dynamic, hard-sealing piston spool valve MPYE. With an external position controller and linear potentiometer, you can construct a precise pneumatic positioning system.
| KC characters | KC EMC |
|---|---|
| Nominal width | 2 mm |
| Type code | MPYE |
| Actuation type | Electrical |
| Sealing principle | Hard |
| Mounting position | Any |
| Design | Piston gate valve |
| Reset method | Magnetic spring |
| Safety instructions | MPYE safety position: if the power supply cable breaks, the blocked mid-position is approached. |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00995308 |
| Valve function | 5/3, closed |
| Reverse polarity protection | for all electrical connections |
| Operating pressure | 0 bar ... 10 bar |
| b-value | 0.21 |
| C value | 0.45 l/sbar |
| Standard nominal flow rate | 100 l/min |
| Cut-off frequency | 115 Hz |
| Max. hysteresis | 0.4 % |
| DC operating voltage range | 17 V ... 30 V |
| Residual ripple | 5 % |
| Setpoint/actual values | Voltage type 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 5 °C ... 40 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 255 g |
| Electrical connection | 4-pinM12x1Round designPlug |
