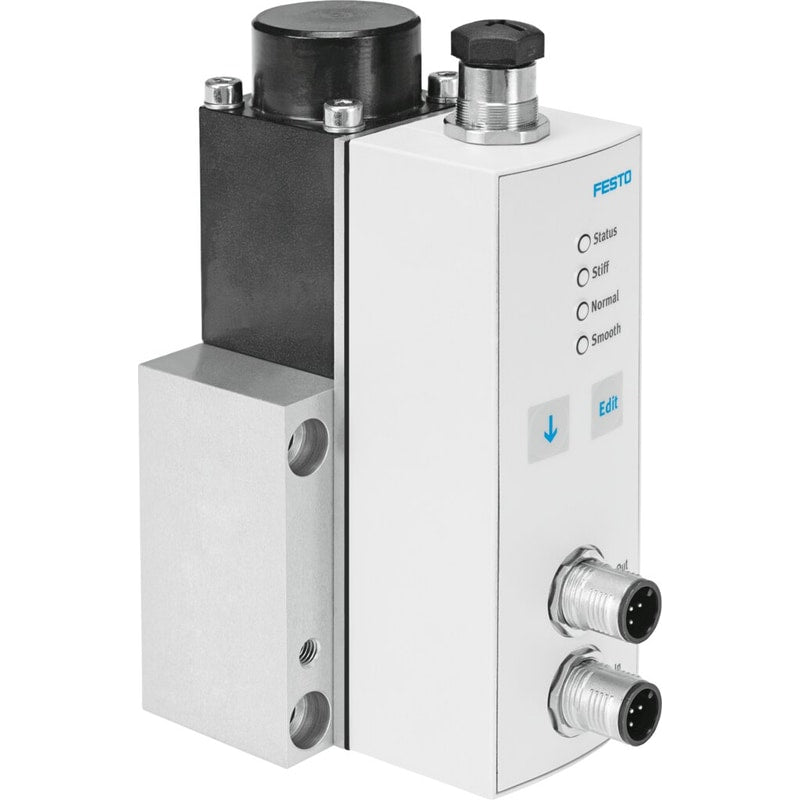

Proportional pressure control valve
VPPL-3Q-3-0L40H-V1-V-S1-3
1635979
GTIN 4052568290849
Vendor Festo
- Valve function
- 3-way proportional pressure control valve closed
- Pneumatic connection 1
- Flange
- Pressure regulation range
- 0.4 bar - 40 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 245 l/min
Regular price
$2,924.24
Unit price
VPPL-3Q-3-0L40H-V1-V-S1-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPL-3Q-3-0L40H-V1-V-S1-3
Regular price
$2,924.24
Unit price
VPPL-3Q-3-0L40H-V1-V-S1-3 is backordered and will ship as soon as it is back in stock.
| Nominal width pressurization | 3 mm |
|---|---|
| Exhaust nominal width | 3 mm |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any Preferably upright |
| Structural design | Directly controlled piston regulator |
| Short-circuit protection | no |
| Max. cable length | 30 m |
| Safety instructions | VPPL safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar. |

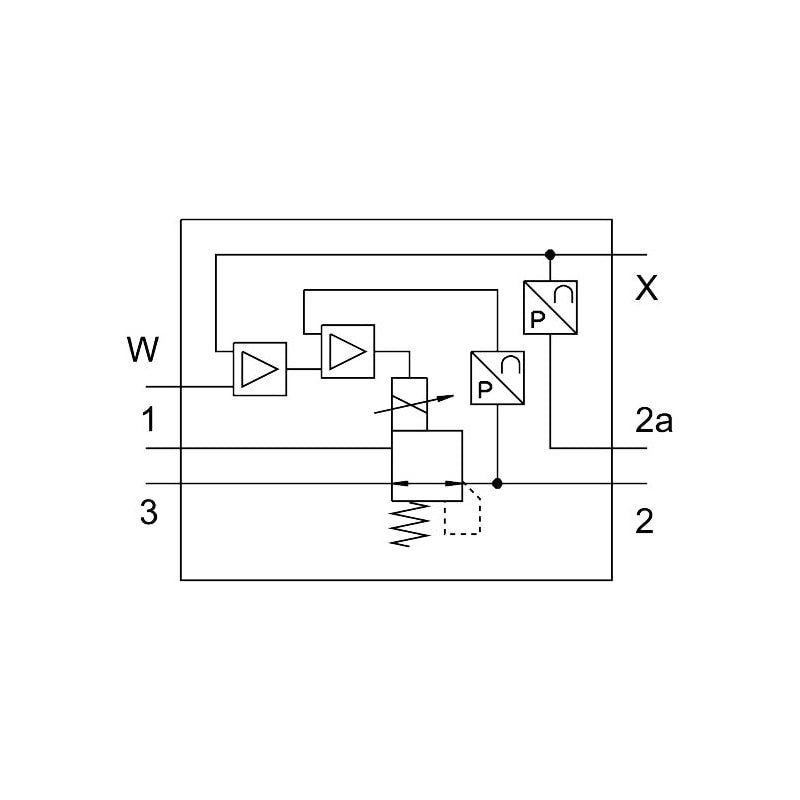

| Symbol | 00995268 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Valve function | 3-way proportional pressure control valve closed |
| Display type | LED display |
| Operating pressure | ≤ 5 MPa |
| Operating pressure | ≤ 50 bar |
| Pressure regulation range MPa | 0.04 MPa ... 4 MPa |
| Pressure regulation range | 0.4 bar ... 40 bar |
| Inlet pressure 1 | 0 bar ... 50 bar |
| Inlet pressure 1 MPa | 0 MPa ... 5 MPa |
| Max. pressure hysteresis | 0.04 MPa |
| Max. pressure hysteresis | 0.4 bar |
| Max. pressure hysteresis | 5.8 psi |
| b-value | 0.25 |
| C value | 0.8 l/sbar |
| Standard nominal flow rate | 245 l/min |
| Standard nominal flow rate 2-3 | 282 l/min |
| Switching time off | 654 ms |
| On switching time | 428 ms |
| DC operating voltage range | 21.6 V ... 27.6 V |
| Duty cycle | 100% |
| Max. electrical power consumption | 26.7 W |
| Residual ripple | 10 % |
| Analog output signal range | 0 - 10 V |
| Analog input signal range | 0 - 10 V |
| Setpoint/actual values | Voltage type 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Certification | c UL us - Listed (OL) |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Temperature of medium | 5 °C ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 5 °C ... 50 °C |
| Storage temperature | -10 °C ... 60 °C |
| Product weight | 1100 g |
| Linearity error in ± % FS | 1 %FS |
| Temperature coefficient | 0.04 %/K |
| Repetition accuracy in ± %FS | 1 %FS |
| Electrical connection, diagnostic interface | Socket, M12, 5-pin, A-coded |
| Electrical connection IN | Plug, M12, 5-pin, A-coded |
| Electrical connection OUT | Plug, M12, 5-pin, A-coded |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | Flange |
| Pneumatic connection 2 | Flange |
| Pneumatic connection 3 | Flange |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, anodized |
