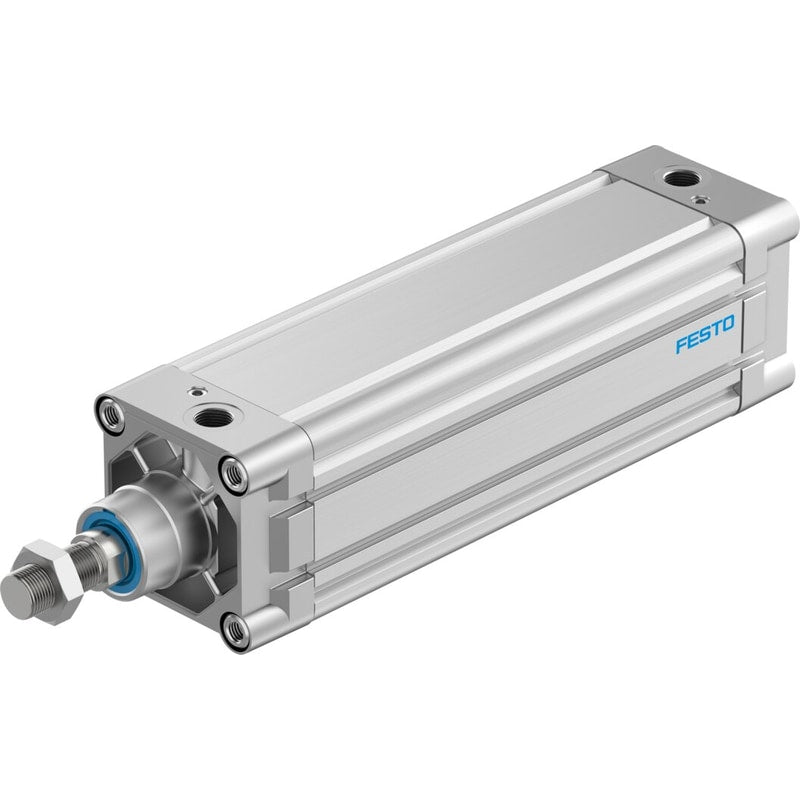

ISO cylinder
DNC-63-100-PPV
163419
GTIN 4052568134372
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 63 mm
- Theoretical force at 6 bar, advancing
- 1870 N
- Stroke
- 100 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$478.73
Unit price
DNC-63-100-PPV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DNC-63-100-PPV
Regular price
$478.73
Unit price
DNC-63-100-PPV is backordered and will ship as soon as it is back in stock.
ISO cylinder DNC-63-100-PPV Part number: 163419 Classic As per ISO 15552, with profile cylinder barrel, with adjustable cushioning at both end positions. Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Stroke | 100 mm |
|---|---|
| Piston diameter | 63 mm |
| Piston rod thread | M16x1,5 |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | No |
| Variants | Single-ended piston rod |
| Operating pressure | 0.6 ... 12 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
