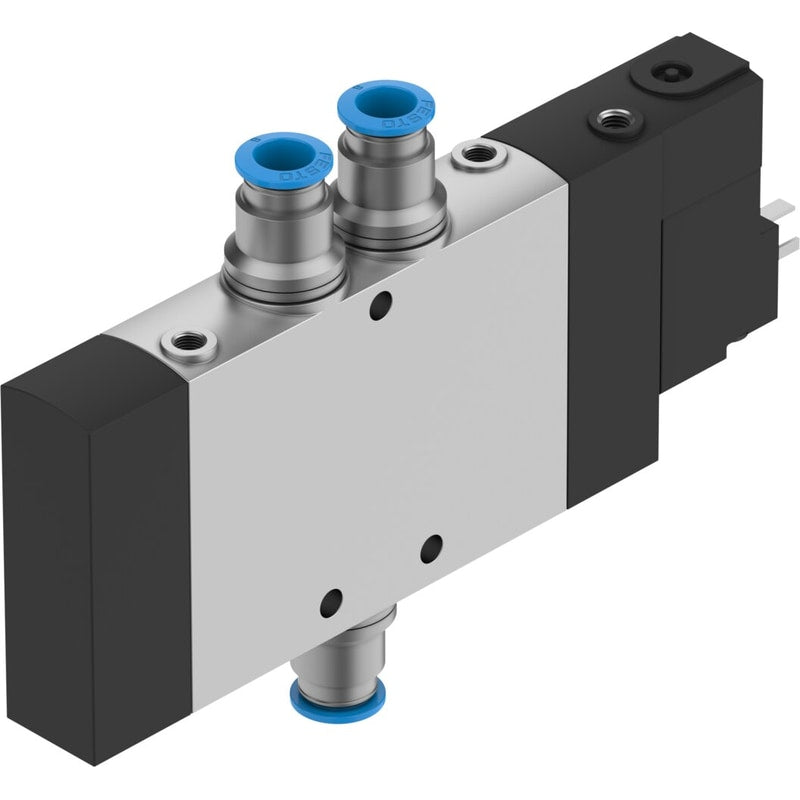

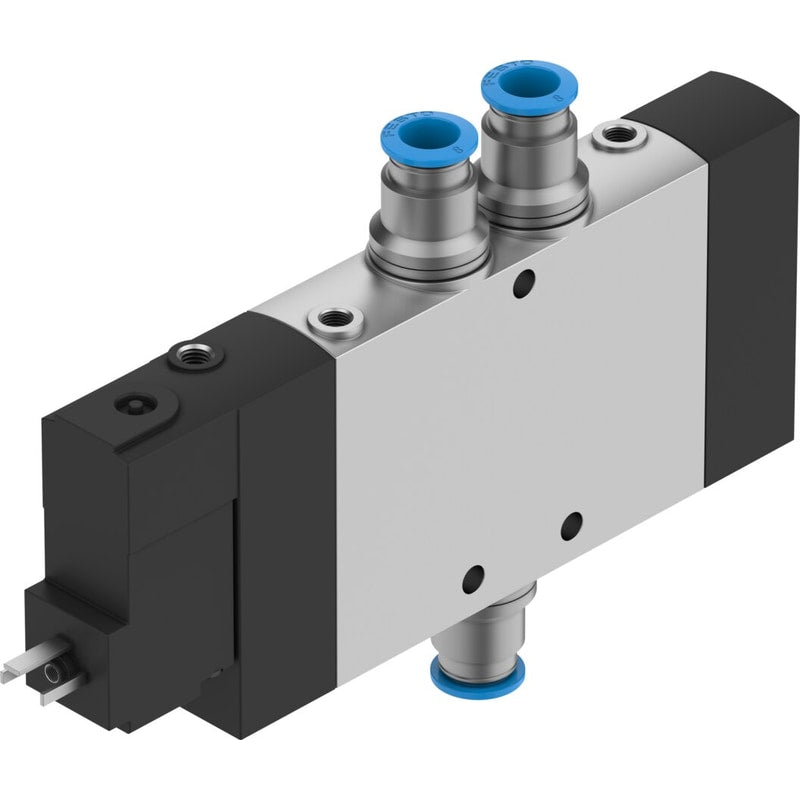

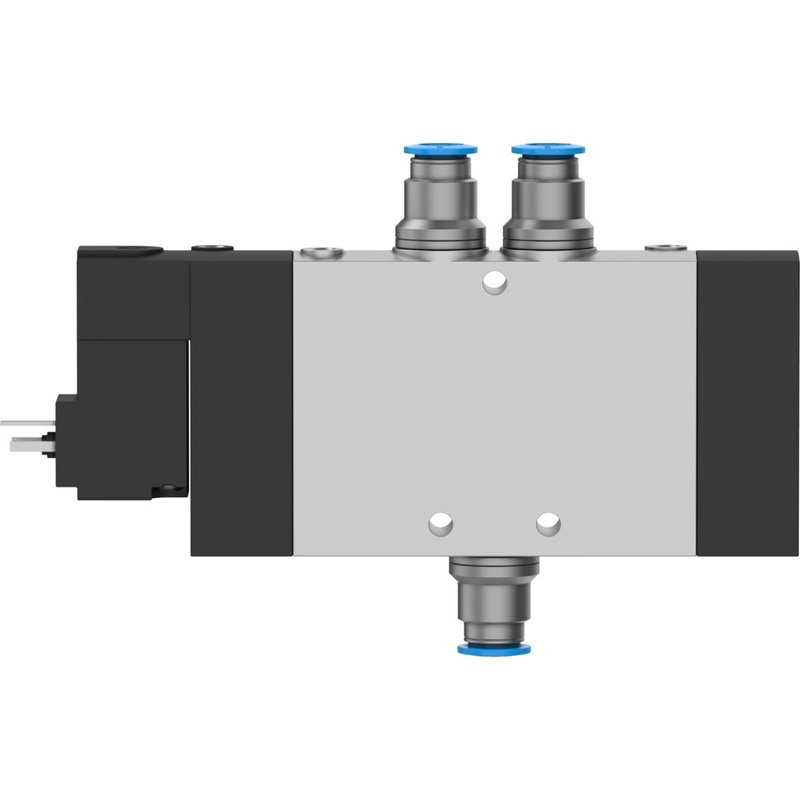

Air solenoid valve
CPE18-M1H-5L-QS-8
163150
GTIN 4052568133122
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic connection 1
- QS-8
- Actuation type
- Electrical
Regular price
$259.86
Unit price
CPE18-M1H-5L-QS-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPE18-M1H-5L-QS-8
Regular price
$259.86
Unit price
CPE18-M1H-5L-QS-8 is backordered and will ship as soon as it is back in stock.
solenoid valve CPE18-M1H-5L-QS-8 High component density Valve function=5/2 monostable, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=850 l/min, Operating pressure=2,5 - 10 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 18 mm |
| Standard nominal flow rate | 850 l/min |
| Operating pressure | 2.5 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65to IEC 60529with plug socket |
| Authorisation | c UL us - Recognized (OL) |
| Maritime classification | see certificate |
| Nominal size | 8 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
