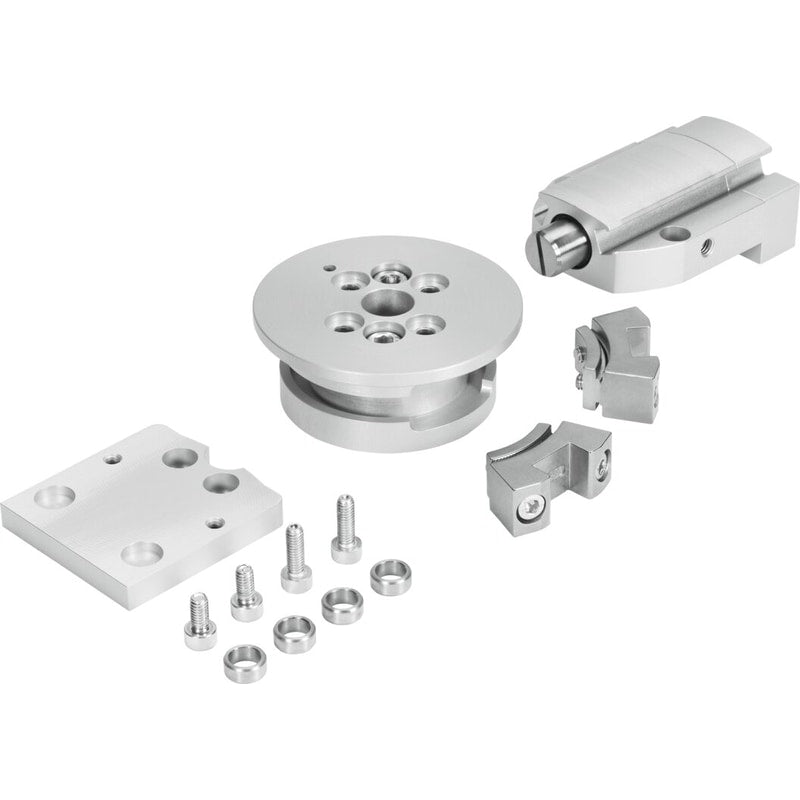

Clamping unit
DADL-EL-Q11-32
1631139
GTIN 4052568243296
Vendor Festo
Regular price
$729.15
Unit price
DADL-EL-Q11-32 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADL-EL-Q11-32
Regular price
$729.15
Unit price
DADL-EL-Q11-32 is backordered and will ship as soon as it is back in stock.
| Size | 32 |
|---|---|
| Adjustment range of swivel angle | 55 deg ... 200 deg |
| Type code | DADL |
| Design | PistonPiston rod |
| Position sensing | For proximity sensor |
| Operating pressure | 5 bar ... 8 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 600 g |
| Type of mounting | Via through-hole and centering sleeve |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Mounting material | AluminumAnodized |
| Seals material | TPE-U(PU)NBR |
| Housing material | Hard-anodizedAluminum |
| Housing cover material | AnodizedAluminum |
| Material of bearing | Polymer |
| Disc material | AluminumAnodized |
| Material of screws | GalvanizedSteel |
| Mode of operation | PullingSingle-acting |
