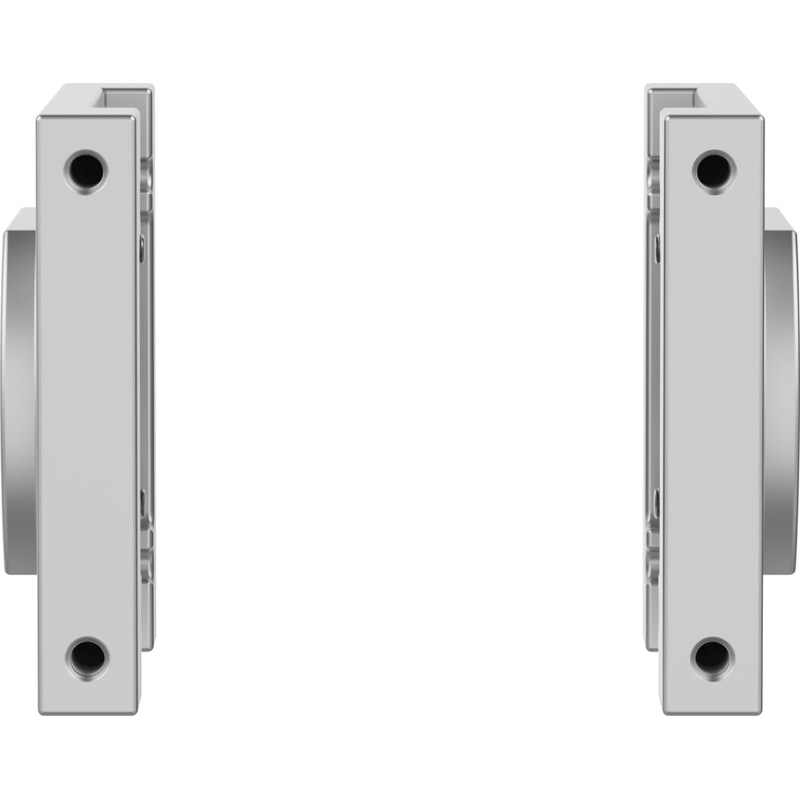

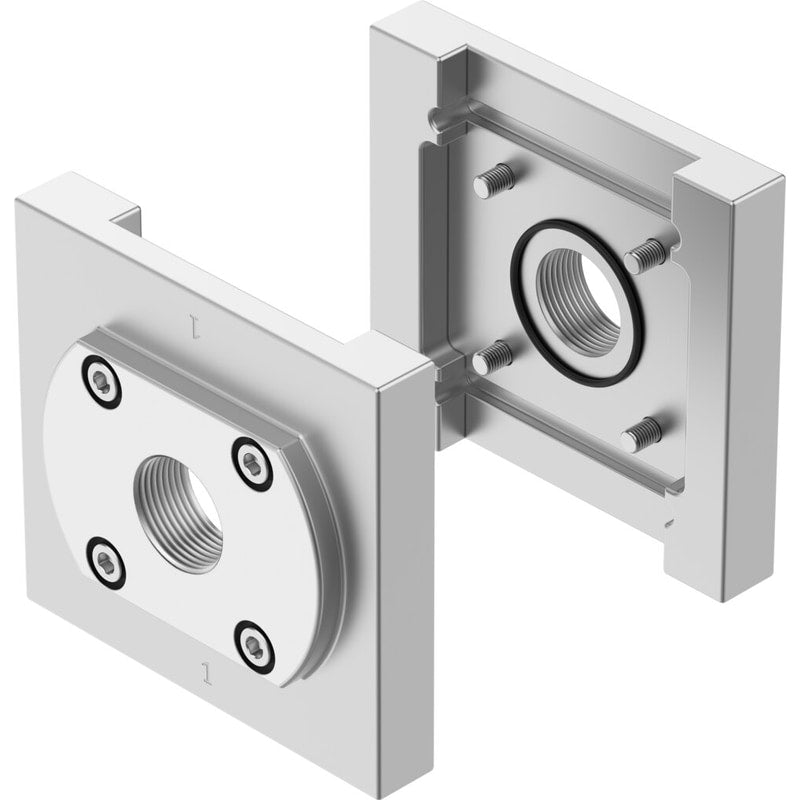

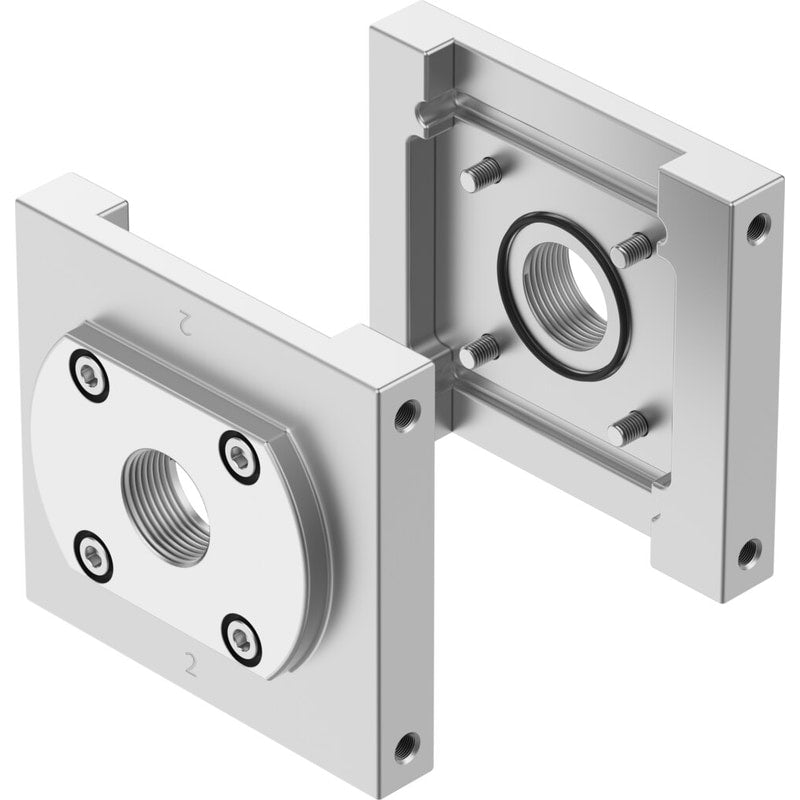

Sub-base
PAML-CP-186-HP3-G212
1629299
GTIN 4052568263683
Vendor Festo
Regular price
$1,132.01
Unit price
Sub-base PAML-CP-186-HP3-G212 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAML-CP-186-HP3-G212
Regular price
$1,132.01
Unit price
Sub-base PAML-CP-186-HP3-G212 is backordered and will ship as soon as it is back in stock.
| Size | 186 |
|---|---|
| Nominal width DN | 54 |
| Type code | PAML |
| Series | L |
| Operating pressure | 0 bar ... 50 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | 5 °C ... 60 °C |
| Ambient temperature | 5 °C ... 60 °C |
| Product weight | 4900 g |
| Pneumatic connection 1 | G2 1/2 |
| Pneumatic connection 2 | G2 1/2 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy |
| Seals material | NBR |
| Material of screws | Stainless steel |
