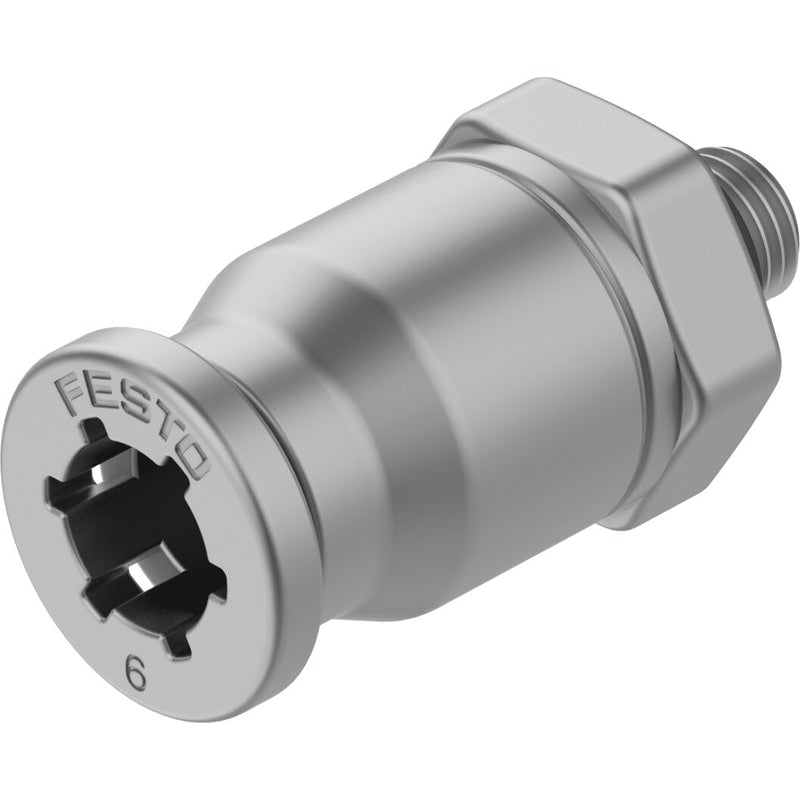

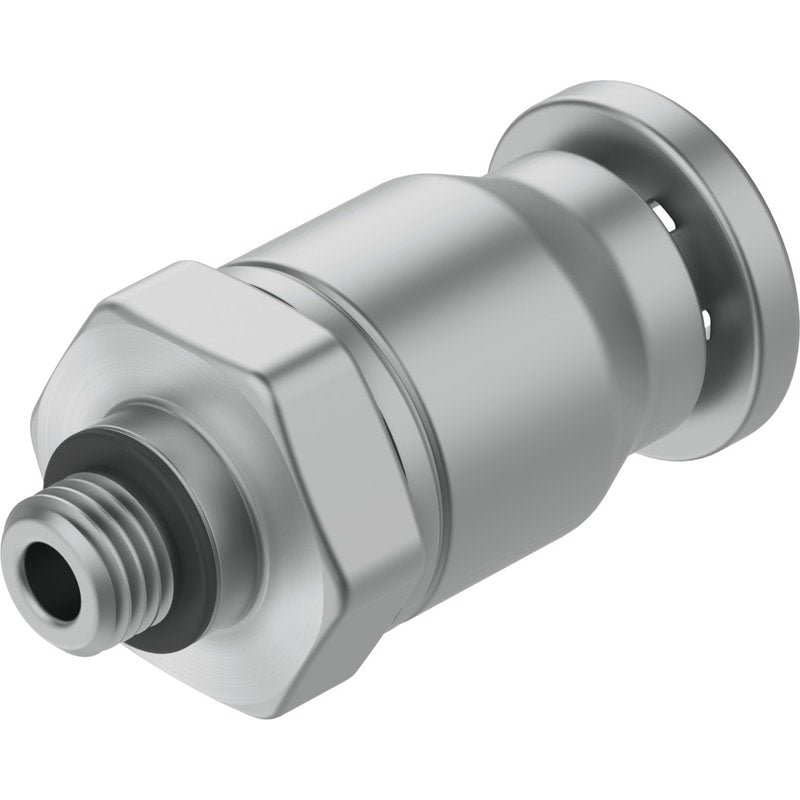

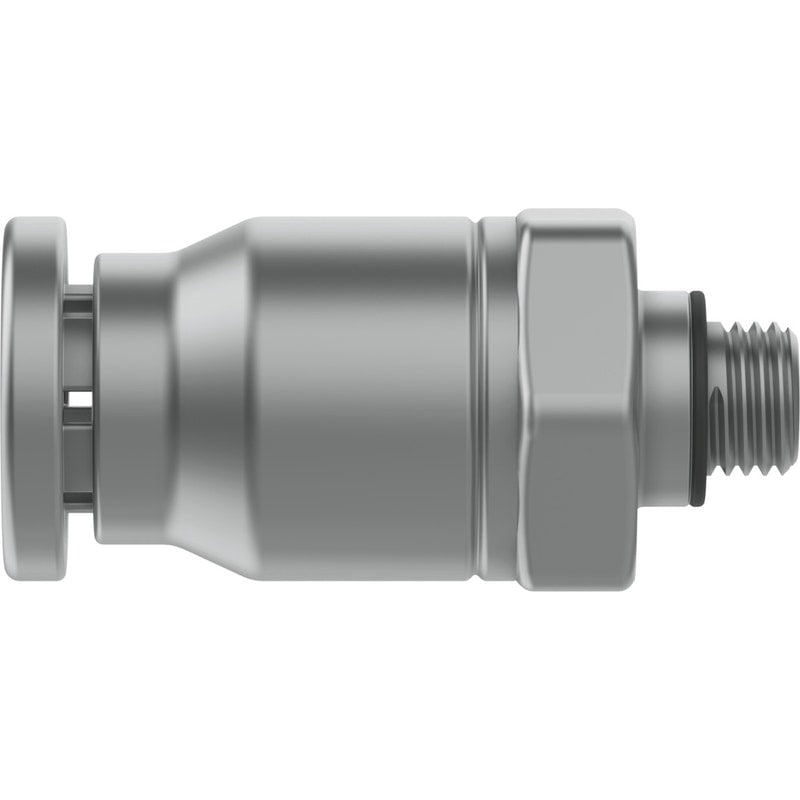

Push-in fitting
CRQS-M5-6
162861
GTIN 4052568036645
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -15 °C - 120 °C
- Nominal width
- 2 mm
Regular price
$43.53
Unit price
CRQS-M5-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRQS-M5-6
Regular price
$43.53
Unit price
CRQS-M5-6 is backordered and will ship as soon as it is back in stock.
push-in fitting CRQS-M5-6 male thread with external hexagon. Size=Standard, Nominal size=2 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 2 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-15 ... 120 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 1.33 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 8.4 g |
| Usable wires | PFAN |
| connection 1 | Male thread M5 |
| connection 2 | For tubing outside diameter 6 mm |
