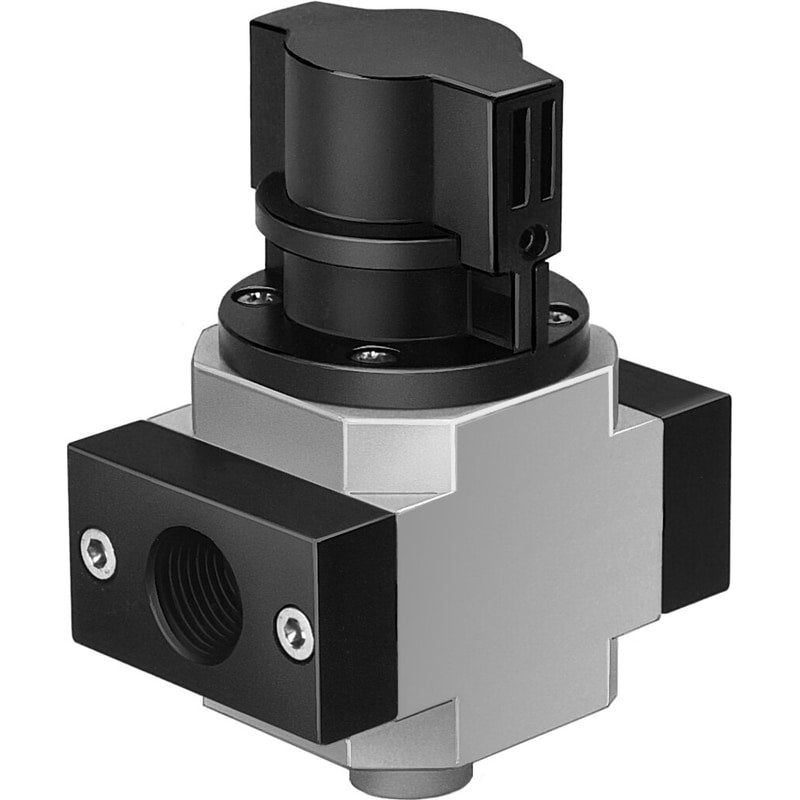

On/off valve
HE-1/8-D-MINI
162806
GTIN 4052568072582
Vendor Festo
- Pneumatic connection 1
- G1/8
- Normal nominal flow rate (normalized to DIN 1343)
- 1000 l/min
- Operating pressure
- 0 bar - 16 bar
- Actuation type
- Manual
Regular price
$135.54
Unit price
On/off valve HE-1/8-D-MINI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HE-1/8-D-MINI
Regular price
$135.54
Unit price
On/off valve HE-1/8-D-MINI is backordered and will ship as soon as it is back in stock.
on-off valve HE-1/8-D-MINI For service units, with threaded connecting plate Design structure=Piston slide, Type of actuation=manual, Sealing principle=soft, Exhaust-air function=not throttleable, Manual override=None
| Design structure | Piston slide |
|---|---|
| Type of actuation | manual |
| Sealing principle | soft |
| Exhaust-air function | not throttleable |
| Manual override | None |
| Valve function | 3/2 bistable |
| Operating pressure | 0 ... 16 bar |
| C value | 4.4 l/sbar |
| b value | 0.44 |
| Standard nominal flow rate | 1,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
