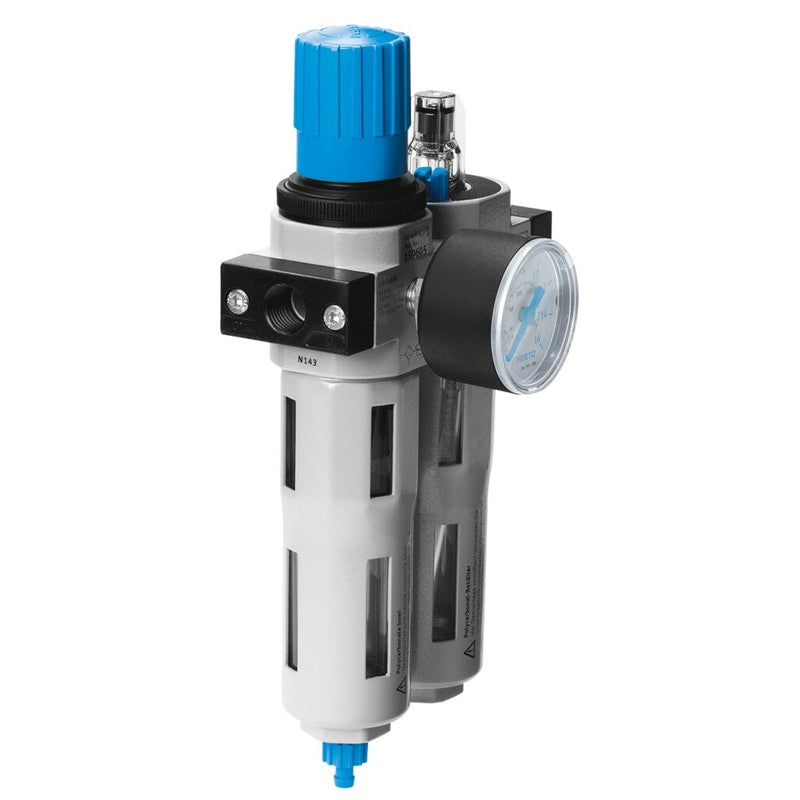

Service unit
FRC-1/8-D-5M-MINI
162770
GTIN 4052568132828
Vendor Festo
- Pneumatic connection 1
- G1/8
- Normal nominal flow rate (normalized to DIN 1343)
- 600 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$290.58
Unit price
Service unit FRC-1/8-D-5M-MINI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRC-1/8-D-5M-MINI
Regular price
$290.58
Unit price
Service unit FRC-1/8-D-5M-MINI is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Manually rotating |
| Design | Filter regulator with pressure gaugeProportional standard oil mist lubricator |
| Max. condensate volume | 22 ml |
| Grade of filtration | 5 µm |
| Bowl guard | Metal bowl guard |

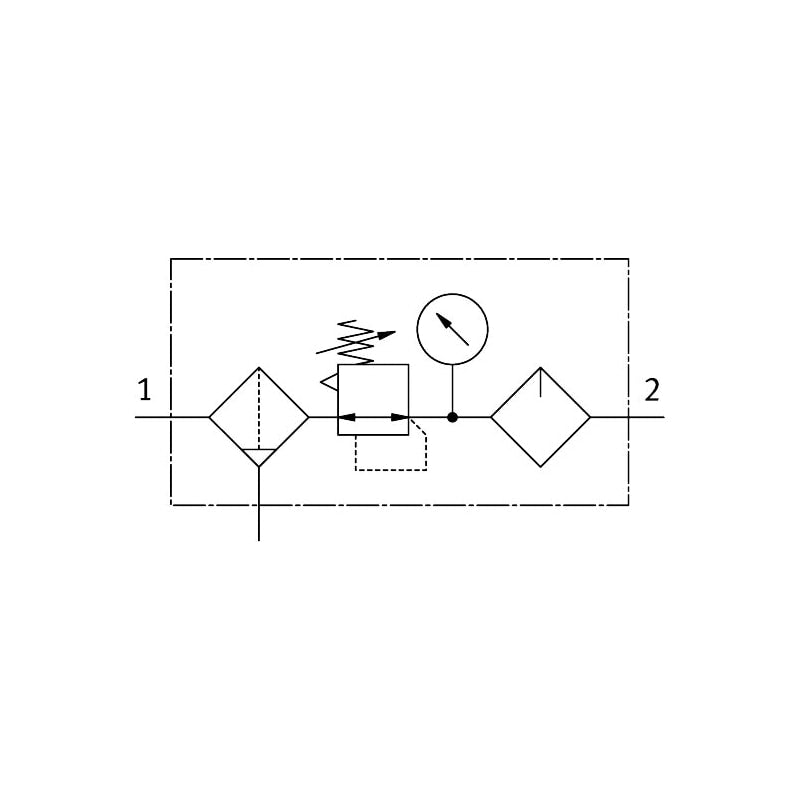

| Symbol | 991549 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar ... 16 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 600 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:-] |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Type of mounting | With accessoriesLine installation |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
