Service unit
FRC-3/4-D-7-MAXI-A
162768
GTIN 4052568132804
Vendor Festo
- Pneumatic connection 1
- G3/4
- Normal nominal flow rate (normalized to DIN 1343)
- 8500 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Grade of filtration
- 40 µm
Regular price
$995.10
Unit price
Service unit FRC-3/4-D-7-MAXI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRC-3/4-D-7-MAXI-A
Regular price
$995.10
Unit price
Service unit FRC-3/4-D-7-MAXI-A is backordered and will ship as soon as it is back in stock.
| Size | Maxi |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Fully automatic |

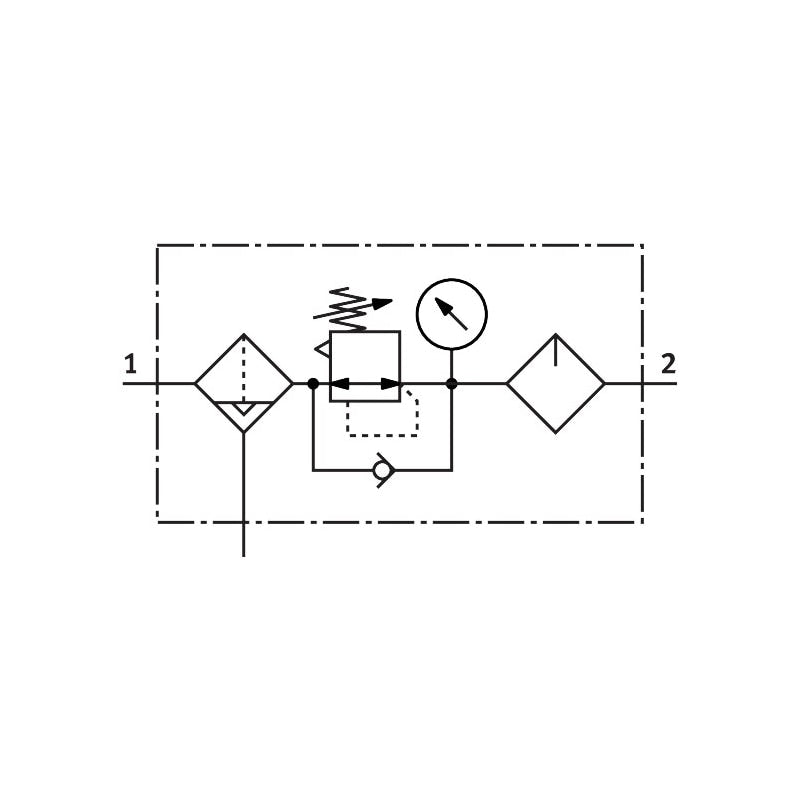

| Design | Proportional standard oil mist lubricatorFilter regulator with pressure gauge |
| Max. condensate volume | 80 ml |
| Grade of filtration | 40 µm |
| Bowl guard | Metal bowl guard |
| Symbol | 991599 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 bar ... 12 bar |
| Pressure regulation range | 0.5 bar ... 7 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 8500 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 2390 g |
| Type of mounting | Line installationWith accessories |
| Pneumatic connection 2 | G3/4 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
