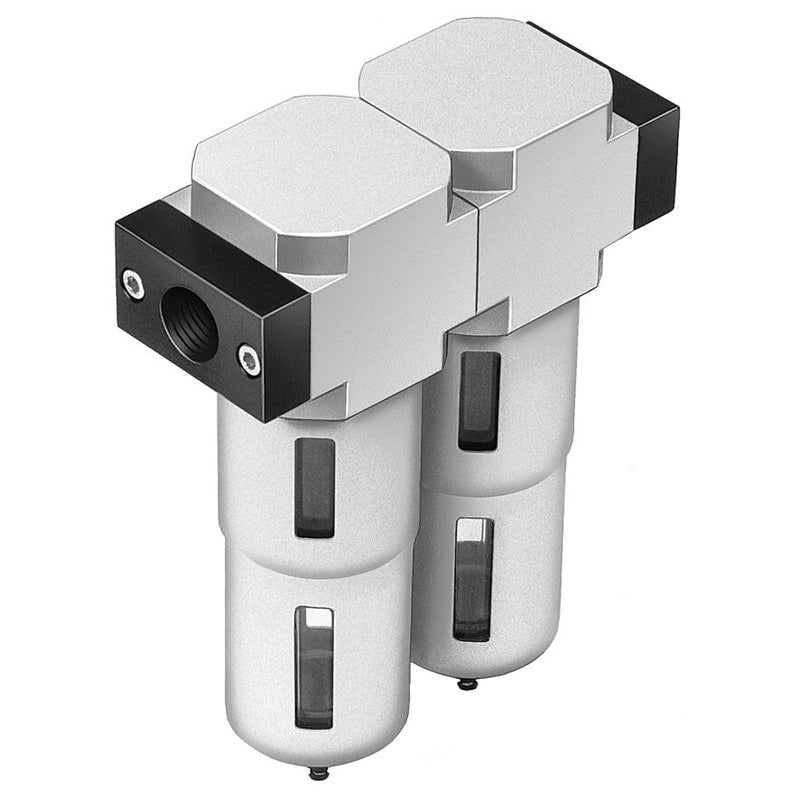

Fine filter combination
LFMBA-1/4-D-MINI-A
162667
GTIN 4052568132064
Vendor Festo
- Size
- Mini
- Grade of filtration
- 0.01 µm
- Operating pressure
- 1.5 bar - 12 bar
- Condensate drain
- Fully automatic
- Ambient temperature
- -10 °C - 60 °C
Regular price
$531.65
Unit price
LFMBA-1/4-D-MINI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMBA-1/4-D-MINI-A
Regular price
$531.65
Unit price
LFMBA-1/4-D-MINI-A is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Type code | LFMBA |
| Series | D |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 0.01 µm |
| Filter efficiency | 0.999999 |
| Condensate drain | Fully automatic |
| Design | Fiber filter |
| Max. condensate volume | 22 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 991551 |
| Operating pressure | 1.5 bar ... 12 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2]Inert gas |
| Temperature of medium | 1.5 °C ... 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 500 g |
| Type of mounting | Line installationWith accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
