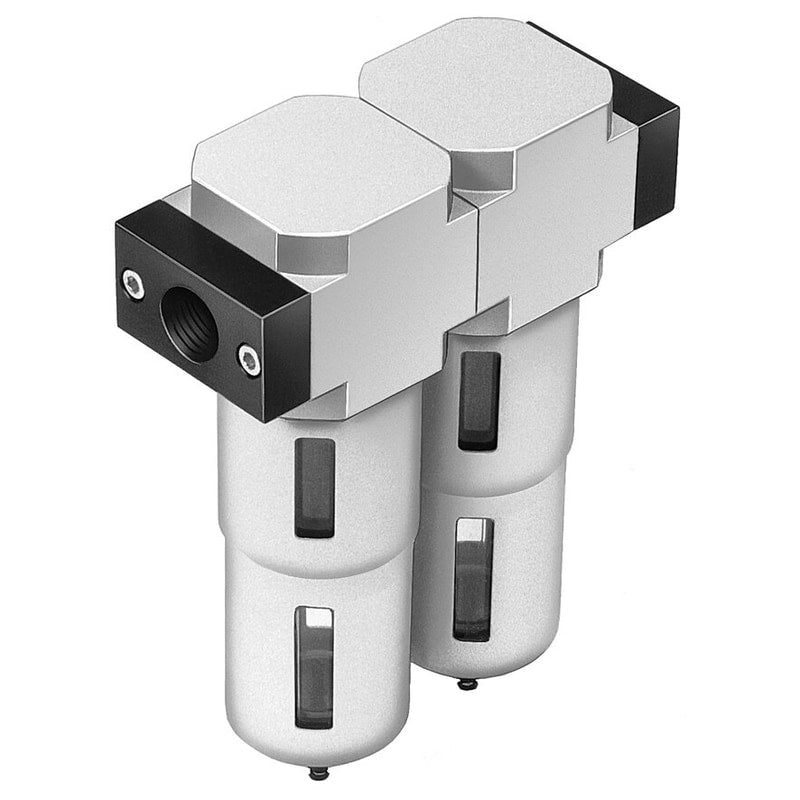

Fine filter combination
LFMBA-1/4-D-MINI
162659
GTIN 4052568131982
Vendor Festo
- Size
- Mini
- Grade of filtration
- 0.01 µm
- Operating pressure
- 1 bar - 16 bar
- Condensate drain
- Manually rotating
- Ambient temperature
- -10 °C - 60 °C
Regular price
$316.53
Unit price
LFMBA-1/4-D-MINI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMBA-1/4-D-MINI
Regular price
$316.53
Unit price
LFMBA-1/4-D-MINI is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Type code | LFMBA |
| Series | D |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 0.01 µm |
| Filter efficiency | 0.999999 |
| Condensate drain | Manually rotating |
| Design | Fiber filter |
| Max. condensate volume | 22 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 991740 |
| Operating pressure | 1 bar ... 16 bar |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:4] |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [1:7:2] |
| Temperature of medium | 1.5 °C ... 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 500 g |
| Type of mounting | Line installationWith accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
