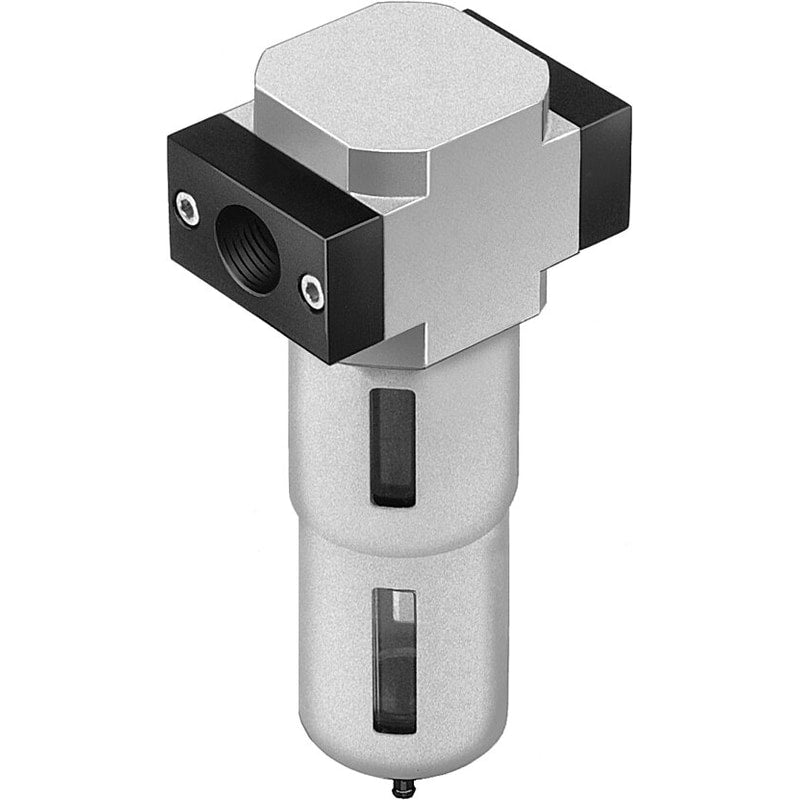

Micro filter
LFMA-3/4-D-MAXI
162648
GTIN 4052568131883
Vendor Festo
- Pneumatic connection 1
- G3/4
- Max. standard flow rate for air quality class
- 1900 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 1 bar - 16 bar
- Grade of filtration
- 0.01 µm
Regular price
$577.11
Unit price
LFMA-3/4-D-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMA-3/4-D-MAXI
Regular price
$577.11
Unit price
LFMA-3/4-D-MAXI is backordered and will ship as soon as it is back in stock.
| Series | D |
|---|---|
| Size | Maxi |
| Type code | LFMA |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manually rotating |
| Symbol | 991519 |
| Operating pressure | 1 bar ... 16 bar |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2]Inert gas |
| Max. standard flow rate for air quality class | 1900 l/min |
| Min. standard flow rate for air quality class | 500 l/min |
| Filter efficiency | 0.999999 |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 1.5 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Type of mounting | With accessoriesLine installationOptionally: |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Product weight | 1200 g |
