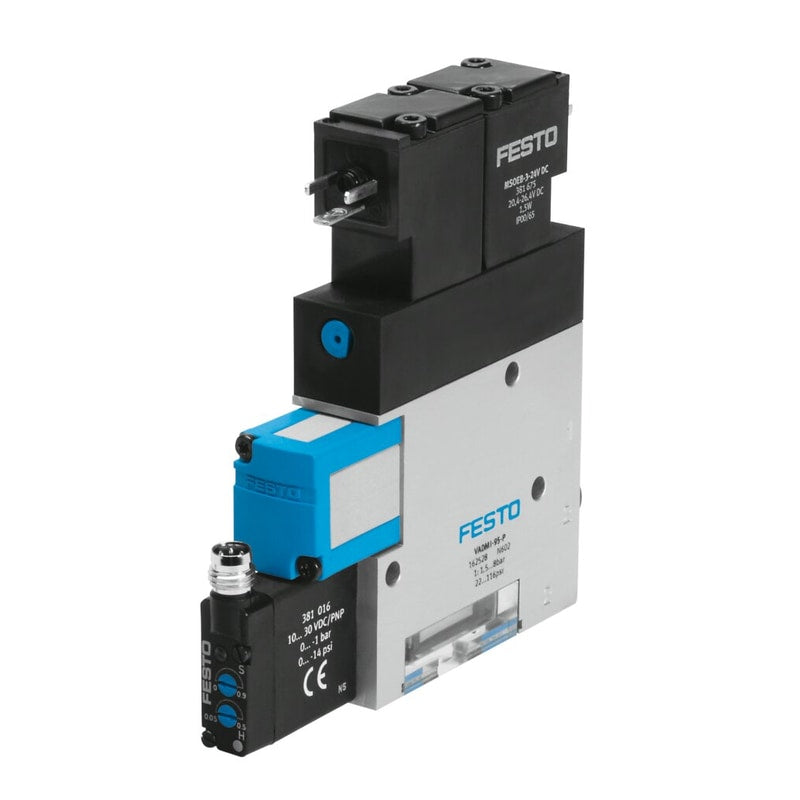

Vacuum generator
VADMI-300-N
162535
GTIN 4052568131562
Vendor Festo
- Nominal width of Laval nozzle
- 3 mm
- Max. vacuum
- 85 %
- Operating pressure
- 2 bar - 8 bar
Regular price
$1,318.93
Unit price
VADMI-300-N is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VADMI-300-N
Regular price
$1,318.93
Unit price
VADMI-300-N is backordered and will ship as soon as it is back in stock.
vacuum generator VADMI-300-N With additional vacuum switch, NPN design Nominal size, Laval nozzle=3 mm, Grid dimension=22 mm, Design, silencer=closed, Assembly position=Any, Ejector characteristic=High vacuum
| Nominal size, Laval nozzle | 3 mm |
|---|---|
| Grid dimension | 22 mm |
| Design, silencer | closed |
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Grade of filtration | <= 40 µm |
| Manual override | Pushing |

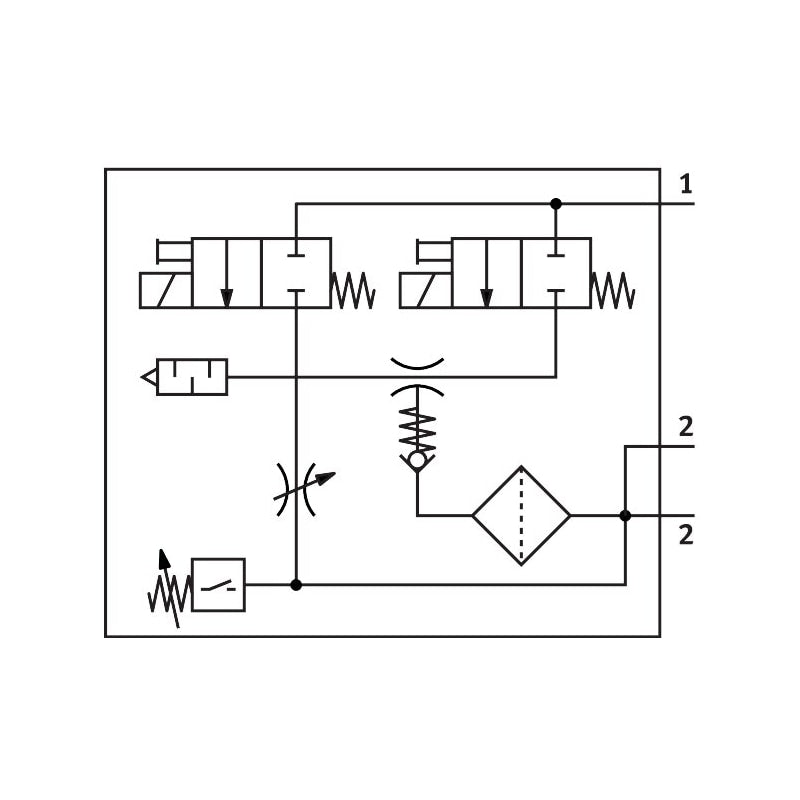

| Integrated function | Ejector pulse valve, electricalFlow control valveElectrical on-off valveFilterNon-return valveVacuum switch |
| Measured variable | Relative pressure |
| Measuring principle | Piezoresistive |
| Switching element function | Normally open contact |
| Switching function | Threshold value comparator |
| Valve function | closed |
